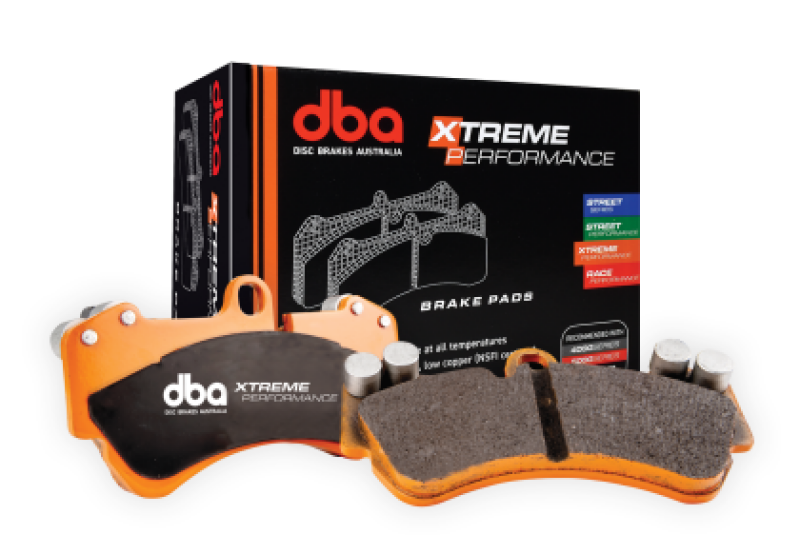

DBA DB2705XP Xtreme Front Brake Pads for 2019-2026 Ram 2500/3500 6.7L 4WD

Vehicle Fitment

• 2019-2026 Ram 2500 (DJ), 6.7L Cummins Turbo Diesel, 4WD
• 2019-2026 Ram 3500 (DJ), 6.7L Cummins Turbo Diesel, 4WD

Fitment Notes

• Front axle application.
• Fits the DJ-platform Ram 2500 and Ram 3500 with the 6.7L diesel engine and 4WD configuration.
• No FWD, RWD, or 2WD application is confirmed for this part number.
• Vehicle-specific brake configuration should be verified before installation.

Features

• DBA Xtreme Performance friction compound for high-performance and heavy-duty braking applications.
• Designed to provide high initial bite for strong pedal response.
• Semi-metal carbon-fibre friction material.
• Low-copper friction formulation.
• Engineered for consistent friction performance from low to high temperatures.
• Scorched using DBA's Thermal Scorching Process (TSP) to improve cold friction effectiveness and reduce bedding-in time.
• Application-specific multi-layer elastomeric coated shim helps reduce brake noise.
• Slotted friction material assists temperature stability and removal of dust and debris.
• Designed for heavy towing and upgraded 4WD applications.
• Suitable for street performance, heavy-duty and commercial braking applications.
• Recommended for use with DBA T3 slotted 4000 and 5000 Series rotors for optimized stopping performance.

Specifications

• Brand: DBA
• Part Number: DB2705XP
• Product Type: Xtreme Performance Brake Pads
• Position: Front
• Axle: Front
• Application: High Performance / Heavy Duty Upgrade / Commercial
• Vehicle Platform: Ram 2500/3500 (DJ)
• Engine: 6.7L Diesel
• Drivetrain: 4WD
• Length: 214.2 mm
• Width: 71.8 mm
• Thickness: 20.7 mm
• Friction Material: Semi-Metal Carbon Fibre
• Copper Content: Low Copper
• Chamfer: No
• Slots: Yes
• Shim: Yes
• Thermal Scorching Process (TSP): Scorched
• Bedding-In Stripe: No
• Unit of Measure: Set
• Quantity per Box: 4
• Warranty: 12 months / 20,000 km / 12,000 miles

Included Components

• 4x Front Brake Pads

Product Description

The DBA DB2705XP Xtreme Performance Front Brake Pads are designed for 2019-2026 Ram 2500 and Ram 3500 models equipped with the 6.7L diesel engine and 4WD drivetrain. Developed for high-performance and heavy-duty use, the XP compound provides high initial bite and consistent friction across a broad temperature range, making it well suited to heavy towing, upgraded 4WD vehicles, street performance driving and demanding commercial applications.

These front pads use semi-metal carbon-fibre friction material with low copper content, along with slotted surfaces for improved temperature stability and debris removal. DBA's Thermal Scorching Process helps improve initial cold friction effectiveness and shorten bedding-in time, while the application-specific elastomeric coated shim helps control brake noise and vibration.

The DB2705XP measures 214.2 x 71.8 x 20.7 mm and is supplied as a four-pad front axle set. DBA recommends pairing the XP pads with compatible T3 slotted 4000 and 5000 Series rotors when maximum stopping performance is desired. Confirm the vehicle's factory brake configuration before installation.
