DBA DB2703SP Street Performance Rear Pads for 2019-2026 Ram 2500/3500 6.7L

Vehicle Fitment

• 2019-2026 Ram 2500 (DJ, 6.7L I6 Cummins Turbo Diesel, 4WD, Rear)
• 2019-2026 Ram 3500 (DJ, 6.7L I6 Cummins Turbo Diesel, 4WD, Rear)

Fitment Notes

• Rear axle application only.
• Designed for 6.7L Cummins Turbo Diesel 4WD Ram 2500 and Ram 3500 applications.
• DBA identifies the application as Ram 2500/3500 (DJ), 6.7L diesel, 4WD, from 2019 onward.
• Confirm the vehicle's rear brake configuration before installation.

Features

• DBA Street Performance rear brake pad compound
• Semi-metallic friction material
• Copper-free friction formulation
• F-F friction classification
• Approximately 0.35 average coefficient of friction
• Designed for improved braking response over conventional OE pads
• Consistent friction performance at elevated temperatures
• Optimal braking consistency up to approximately 438°C
• Scorched friction surface for improved initial braking performance
• Application-specific NVH shims, slots and chamfers
• Designed to reduce brake noise and vibration
• Suitable for heavy-duty 4WD and light-commercial applications
• Designed for use with DBA performance rotors

Specifications

• Brand: DBA (Disc Brakes Australia)
• Part Number: DB2703SP
• Series: Street Performance
• Position: Rear

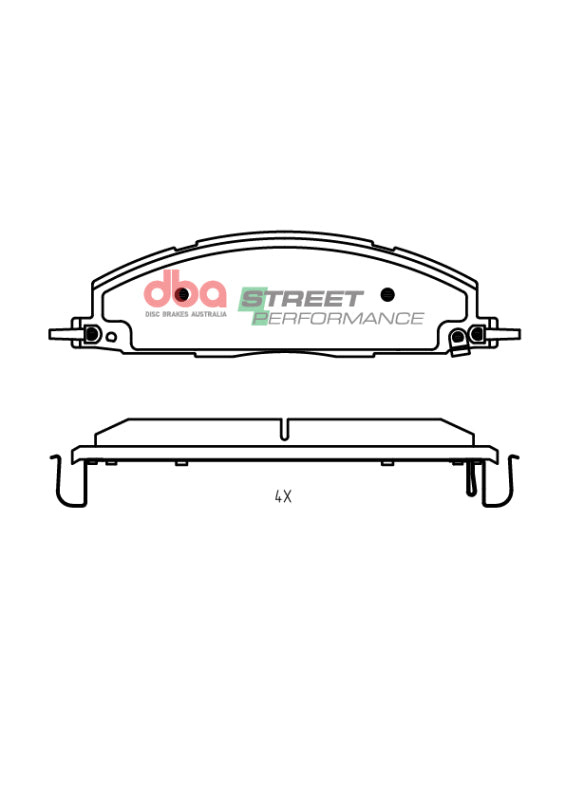

• Pad Length: 194.5 mm
• Pad Width: 57.3 mm
• Pad Thickness: 19.1 mm
• Friction Material: Semi-Metallic
• Friction Classification: F-F
• Average Friction Coefficient: Approximately 0.35
• Maximum Consistent Operating Temperature: Approximately 438°C
• Vehicle Platform: Ram 2500/3500 DJ
• Engine: 6.7L I6 Cummins Turbo Diesel
• Drivetrain: 4WD
• Application: Rear Disc Brake System

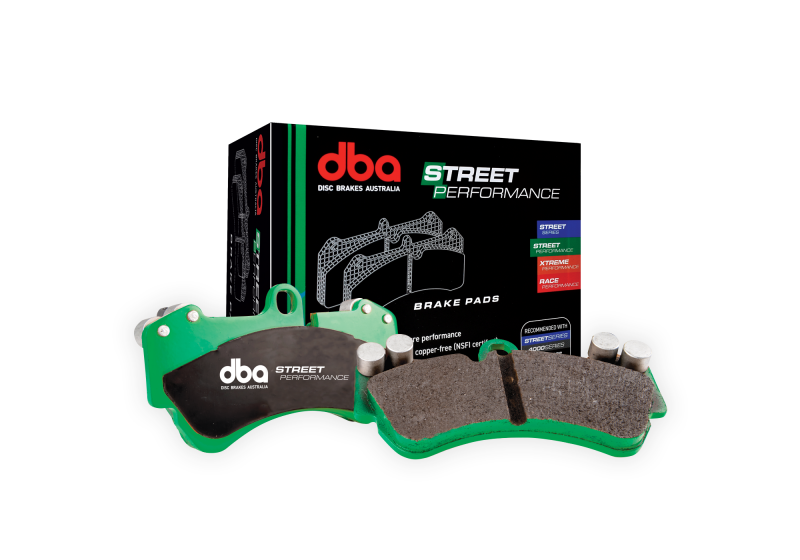

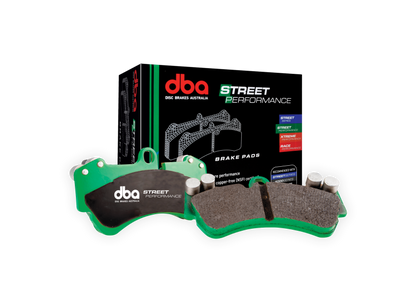

Included Components

• 2x Inner Rear Brake Pads
• 2x Outer Rear Brake Pads

Product Description

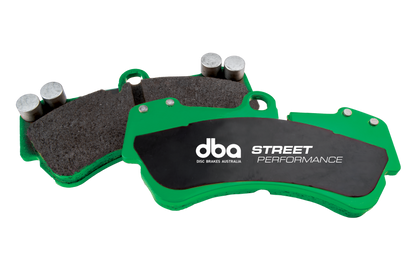

The DBA DB2703SP Street Performance rear brake pads are engineered for heavy-duty 2019-2026 Ram 2500 and Ram 3500 models equipped with the 6.7L Cummins Turbo Diesel and 4WD. The Street Performance compound is designed to provide a stronger and more responsive friction response than conventional OE brake pads while maintaining suitability for street and heavy-duty use.

These pads use a semi-metallic, copper-free friction formulation with an F-F friction classification and approximately 0.35 average coefficient of friction. DBA's scorched friction surface helps optimize initial braking performance, while application-specific shims, slots and chamfers help control brake noise and vibration. DBA specifies consistent braking performance to approximately 438°C.

DB2703SP is a rear-axle application for the DJ-platform Ram 2500 and 3500 with the 6.7L diesel and 4WD configuration. The pads measure 194.5 mm long, 57.3 mm wide and 19.1 mm thick. Verify the exact rear brake configuration before installation.
