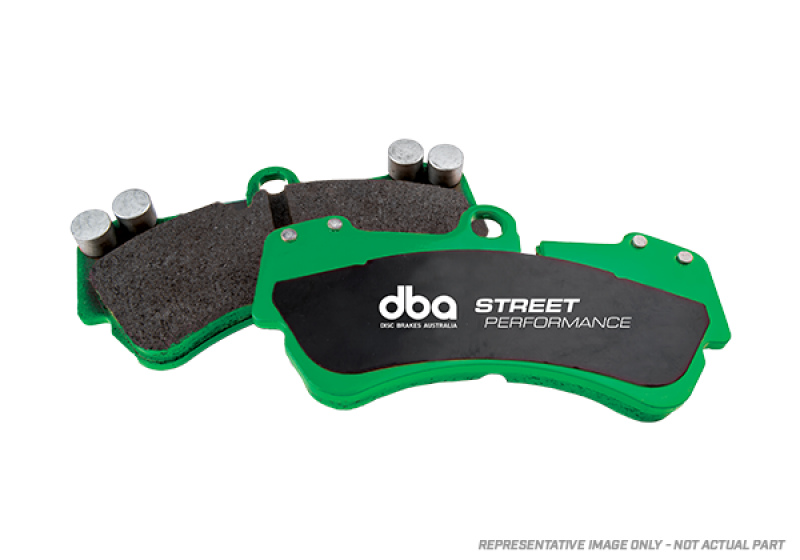

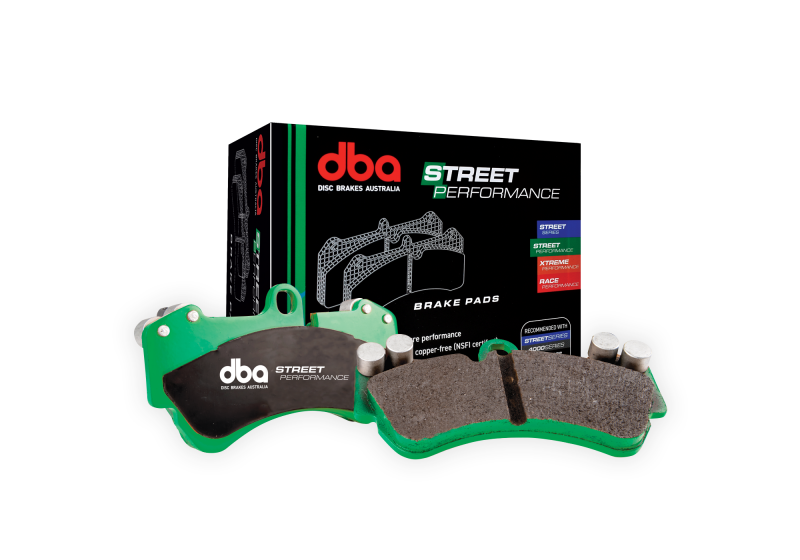

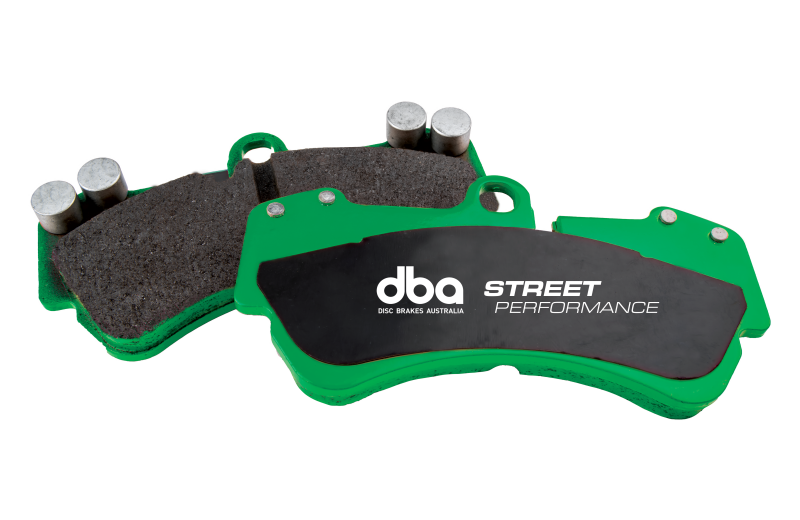

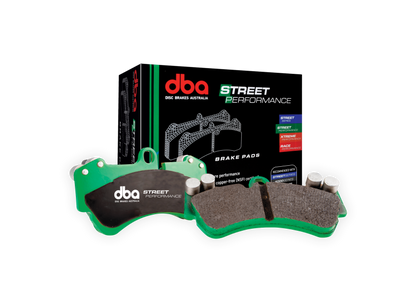

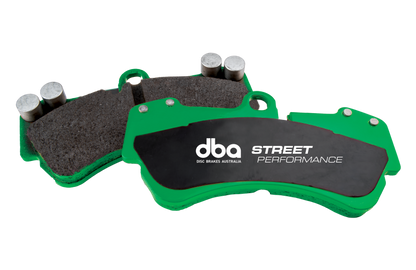

DBA DB2705SP Street Performance Brake Pads for 2015-2026 Ram 2500/3500 6.7L 4WD

Vehicle Fitment

• 2015-2018 Ram 2500 (DJ), 6.7L Cummins Turbo Diesel, 4WD
• 2015-2018 Ram 3500 (DJ), 6.7L Cummins Turbo Diesel, 4WD
• 2019-2026 Ram 2500 (DJ), 6.7L Cummins Turbo Diesel, 4WD
• 2019-2026 Ram 3500 (DJ), 6.7L Cummins Turbo Diesel, 4WD

Fitment Notes

• Front axle application.
• Designed for Ram 2500 and Ram 3500 applications using the specified 6.7L diesel 4WD configuration.
• Verify the vehicle's original brake-pad configuration before installation when multiple factory brake systems are available.

Features

• DBA Street Performance friction compound for improved braking response over traditional OE-style pads.
• Semi-metallic carbon-fibre friction material.
• Copper-free friction formulation.
• Application-specific friction characteristics for street and performance driving.
• Scorched using DBA's Thermal Scorching Process (TSP) to improve initial friction effectiveness and reduce bedding-in time.
• Application-specific multi-layer elastomeric shim helps reduce brake noise and vibration.
• Chamfered pad edges help reduce noise, vibration and harshness.
• Slotted pad design assists temperature stability and removal of dust and debris.
• Designed for consistent friction performance under elevated brake temperatures.
• R90 certified friction product.

Specifications

• Brand: DBA
• Part Number: DB2705SP
• Product Type: Street Performance Brake Pads
• Position: Front
• Axle: Front
• Application: Ram 2500/3500 (DJ), 6.7L diesel, 4WD

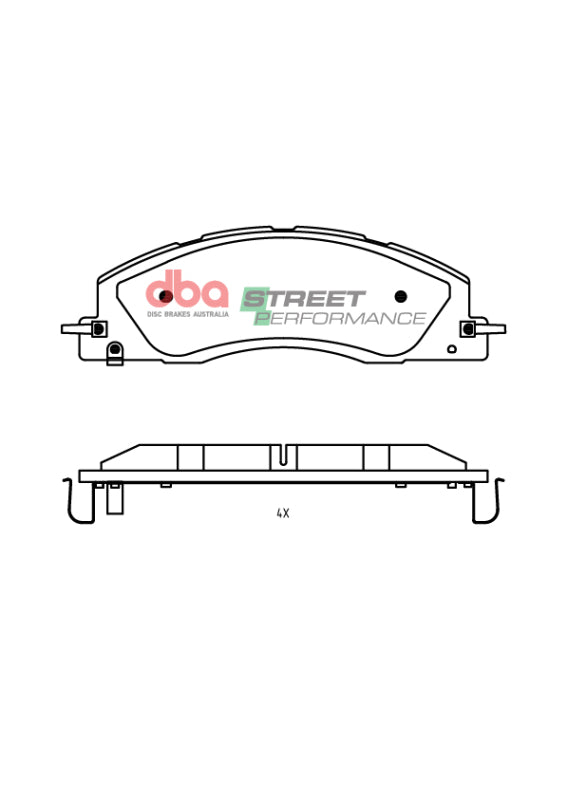

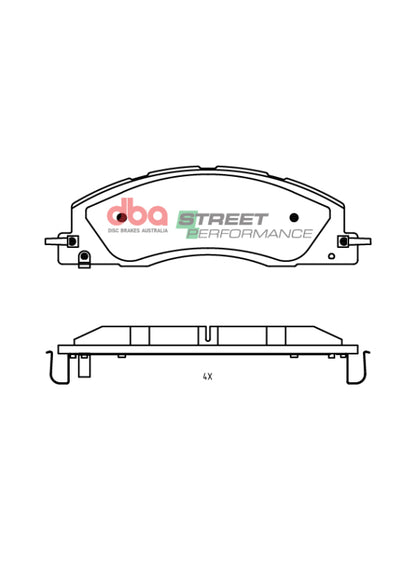

• Length: 214.2 mm
• Width: 71.8 mm
• Thickness: 20.7 mm
• Friction Material: Semi-Metal Carbon Fibre
• Copper Content: Copper-Free
• Chamfer: Yes
• Slots: Yes
• Shim: Yes
• Thermal Scorching Process (TSP): Yes
• Unit of Measure: Set
• R90 Certified: Yes

Included Components

• 4x Front Brake Pads

Product Description

The DBA DB2705SP Street Performance brake pads are designed for Ram 2500 and Ram 3500 models equipped with the 6.7L diesel engine and 4WD configuration. These front pads use DBA's semi-metal carbon-fibre friction material to provide an improved friction response compared with conventional OE-style brake pads while maintaining suitability for daily driving, performance use, heavy-duty 4WD applications and light-commercial operation.

DBA incorporates application-specific shims, chamfers and slots to help control brake noise, vibration and harshness while assisting temperature stability and the removal of friction dust and debris. The pads are also treated with DBA's Thermal Scorching Process to improve initial braking effectiveness and reduce bedding-in time. The copper-free formulation is designed to provide consistent braking performance with reduced dust characteristics.

The DB2705SP is a front-axle pad set with a specified pad size of 214.2 x 71.8 x 20.7 mm. DBA recommends pairing its Street Performance pads with compatible DBA Street Series T2 or 4000 Series T3 slotted rotors when seeking optimized braking performance. Always confirm the existing brake-pad configuration and vehicle application before installation.
