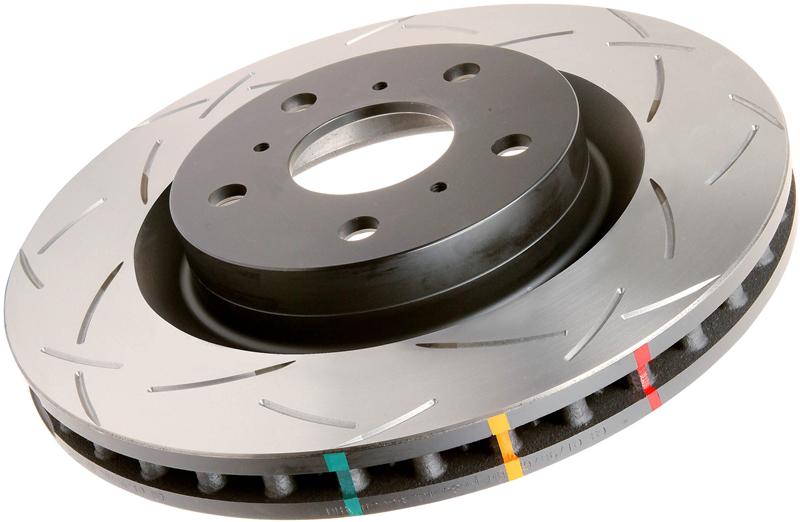

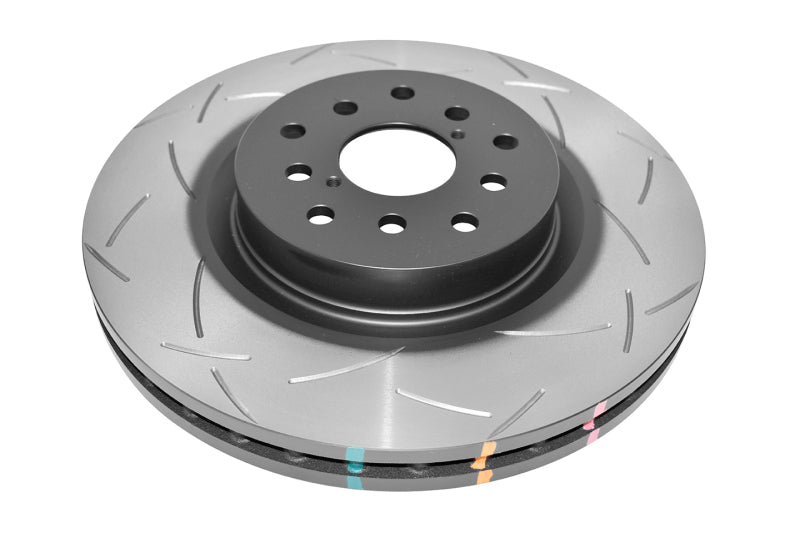

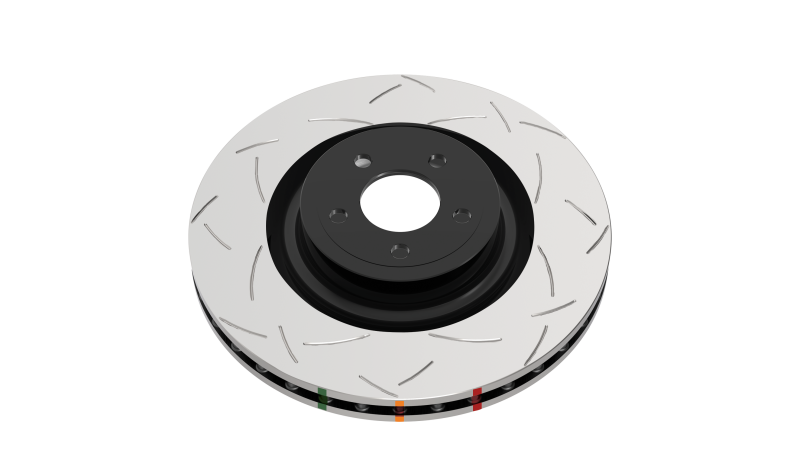

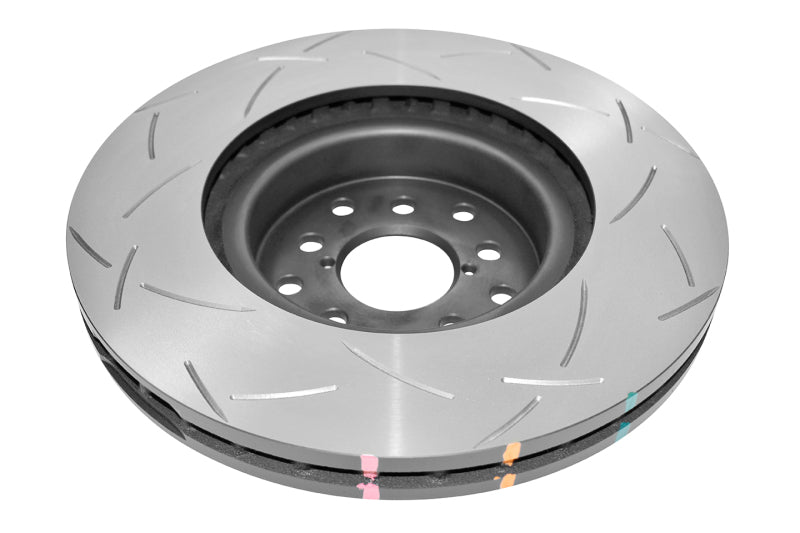

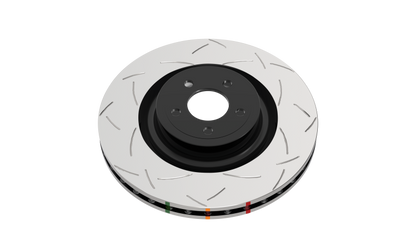

DBA 42650S-10 4000 T3 Front Brake Rotor for 2015-21 Subaru WRX/Forester/Legacy

Vehicle Fitment

• 2015-2021 Subaru WRX (Front, AWD, 5x100 mm / 5x114.3 mm)
• 2014-2018 Subaru Forester XT (Front, AWD, 5x114.3 mm)
• 2005-2014 Subaru Legacy (Front, AWD, 5x114.3 mm)
• 2010-2019 Subaru Outback (Front, AWD, 5x114.3 mm)

Features

• Direct-replacement 4000 Series T3 slotted front brake rotor
• Tri-symmetrical T3 slot design for enhanced pad bite and smooth brake feel
• Kangaroo Paw internal ventilation increases cooling efficiency
• High carbon alloyed iron construction for strength and heat resistance
• Thermal Stability Profiling (TSP) minimizes stress and warping under heat
• Die-cast painted non-friction areas for corrosion resistance
• Universal uni-directional slot design - no left/right orientation needed
• Sold individually - order two for a full front axle replacement

Specifications

• Position: Front axle
• Rotor Type: Vented slotted (T3)
• Outer Diameter: 316 mm
• Nominal Thickness: 30 mm
• Minimum Thickness: 28 mm
• Centering Bore: 58 mm
• Stud/Lug Pattern: Mixed 5x100 mm / 5x114.3 mm depending on model
• Surface: Precision CNC-machined tri-symmetrical slots

Included Components

• 1x DBA 42650S-10 4000 Series T3 Slotted Front Brake Rotor

Product Description

The **DBA 42650S-10 4000 Series T3 Front Brake Rotor** is a performance-oriented direct replacement rotor engineered for select Subaru AWD models, including WRX, Forester XT, Legacy, and Outback from mid-2000s through 2021. Its advanced T3 tri-symmetrical slot pattern increases exit points for brake pad gas and dust, improving pad contact and delivering a smoother, more consistent brake feel under spirited driving or daily use. The patented Kangaroo Paw internal ventilation system further enhances cooling performance by increasing surface area and promoting heat dissipation, helping reduce brake fade during demanding conditions.

Cast from high carbon alloyed iron and treated with Thermal Stability Profiling (TSP), the DBA 42650S-10 rotor resists heat-induced stress and warping better than many standard OEM rotors. Its vented, slotted design also helps extend pad life by reducing glazing and maintaining cleaner pad surfaces. Sold individually, these rotors are ideal for drivers looking to upgrade braking performance on their Subaru for improved stopping power, heat management, and overall confidence on the road.
