DBA DBA53940.1S Front T3 Rotor Ring for 2017-2024 Chevrolet Camaro ZL1

Vehicle Fitment

• 2017-2024 Chevrolet Camaro ZL1 (Gen 6, RWD, 6.2L Supercharged V8 LT4, Factory 390 mm Front DBA 5000 Series Two-Piece Rotor)

Fitment Notes

• Front axle application.
• Replacement friction ring only for DBA 5000 Series two-piece rotor assemblies.
• Sold individually; order two rotor rings per vehicle.
• Requires reuse of the existing DBA aluminum center hat and NAS mounting hardware.
• Does not replace or fit OE one-piece brake rotors.
• Designed for DBA 5000 Series assemblies with 390 mm x 36 mm front rotors.

Features

• DBA 5000 Series T3 replacement rotor ring.
• Patented T3 Tri-Symmetrical slot design improves pad bite and pedal feel.
• XG-150 high-carbon alloy cast iron construction.
• Kangaroo Paw ventilation enhances cooling efficiency.
• Thermal Stability Profiling (TSP) improves resistance to heat checking and distortion.
• Thermographic temperature monitoring paint indicates peak operating temperatures.
• Precision-machined friction surface minimizes disc thickness variation.

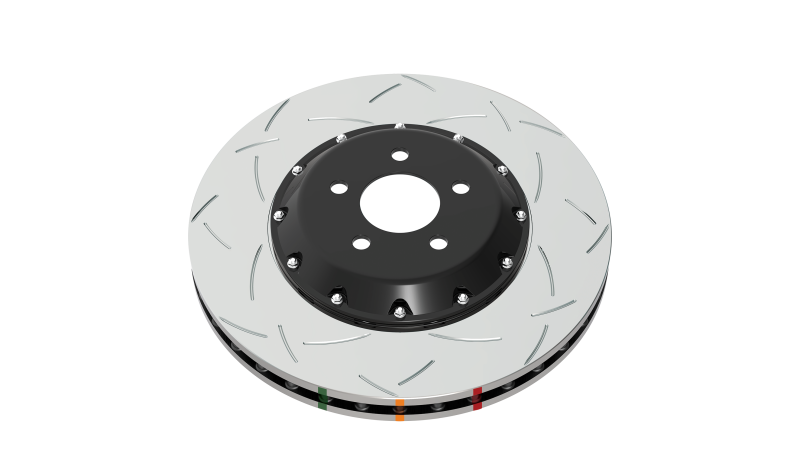

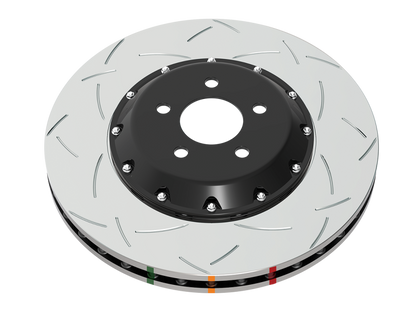

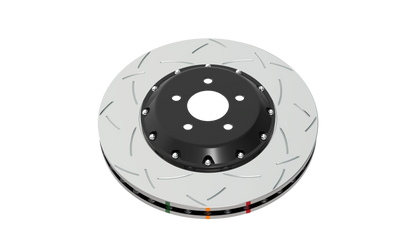

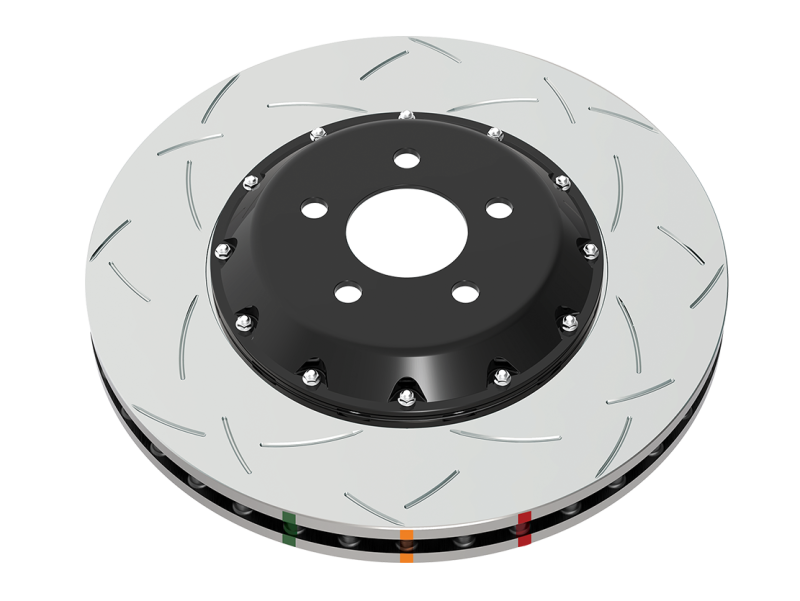

• Direct replacement for compatible DBA 5000 Series two-piece rotors.
• Engineered for high-performance street and track use.

Specifications

• Brand: DBA
• Part Number: DBA53940.1S
• Series: 5000 Series T3
• Product Type: Replacement Brake Rotor Ring
• Position: Front
• Rotor Diameter: 390 mm
• Nominal Thickness: 36 mm
• Minimum Thickness: 34 mm
• Overall Height: 36 mm
• Center Hole Diameter: 180 mm
• Mounting Holes: 12
• Rotor Type: Vented
• Vent Design: Kangaroo Paw
• Surface Design: T3 Tri-Symmetrical Slotted
• Material: XG-150 High-Carbon Cast Iron

Included Components

• 1x DBA 5000 Series T3 Front Replacement Rotor Ring

Product Description

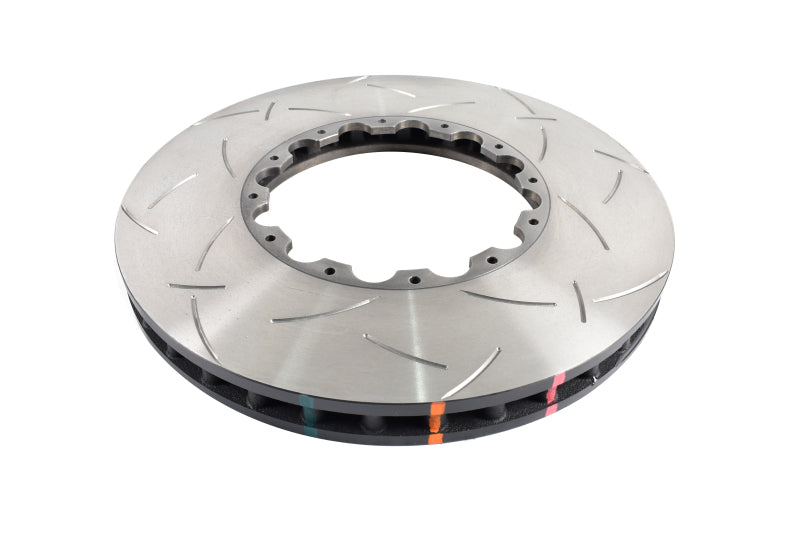

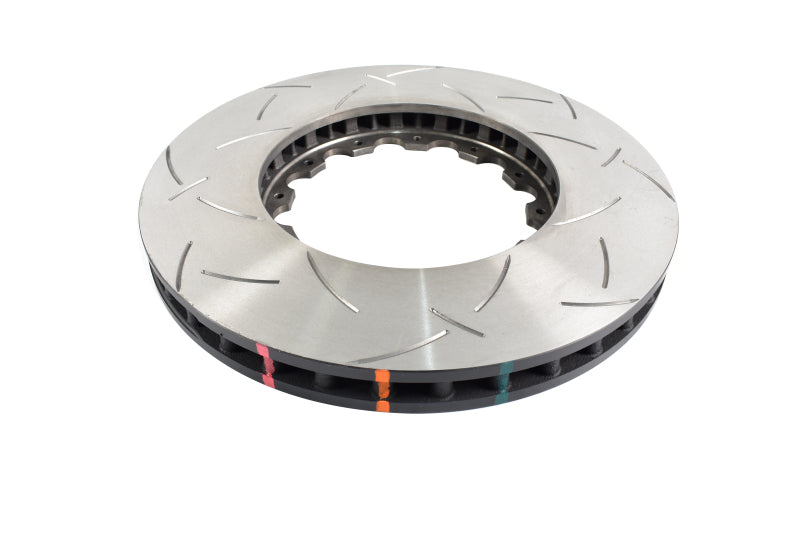

The DBA DBA53940.1S is a replacement friction ring engineered for DBA 5000 Series two-piece front brake rotor assemblies used on the Chevrolet Camaro ZL1. Rather than replacing the complete rotor assembly, this service component allows the worn cast iron friction ring to be replaced while reusing the existing DBA aluminum center hat, reducing replacement costs without sacrificing braking performance.

Manufactured from DBA's XG-150 high-carbon alloy iron, the rotor ring features the patented T3 Tri-Symmetrical slot pattern, Kangaroo Paw ventilation, Thermal Stability Profiling (TSP), and thermographic heat paint to deliver exceptional cooling, fade resistance, and durability under demanding street and track conditions. It is intended exclusively for compatible DBA 5000 Series two-piece rotor assemblies and is sold individually.
