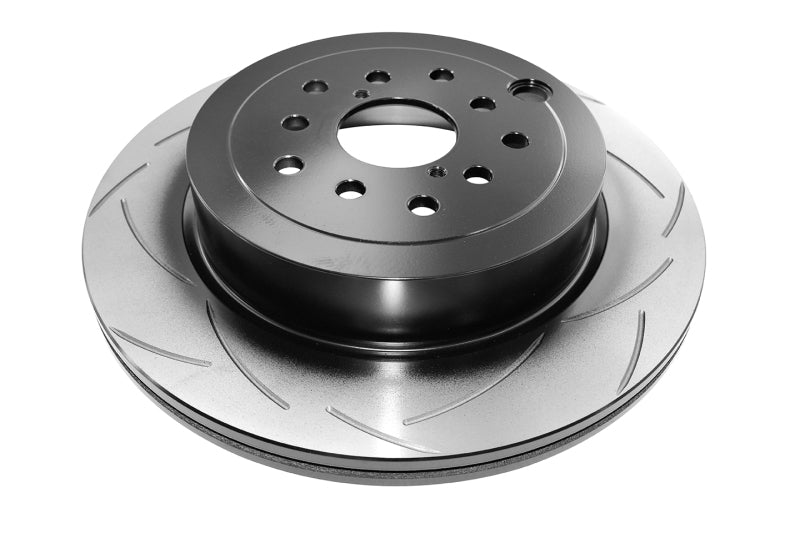

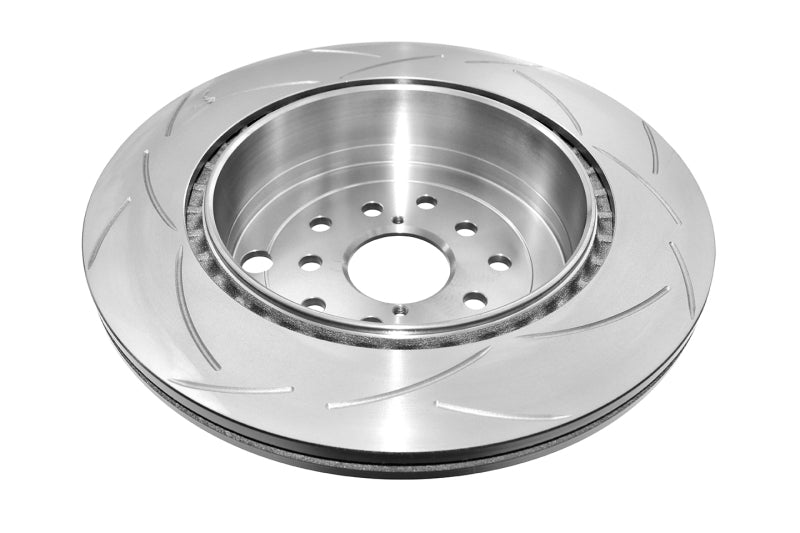

DBA DBA2656S-10 T2 Street Slotted Rear Single Rotor for 08-21 Subaru WRX STI/BRZ

Vehicle Fitment

• 2008-2017 Subaru WRX STI, rear
• 2008-2014 Subaru WRX, rear, with 5x100 STI Brembo brake swap only
• 2015-2021 Subaru WRX STI, rear
• 2011-2021 Subaru BRZ, rear, with Performance Package (Brembo brakes)

Fitment Notes

• Rear position only
• Standard 2008-2014 WRX (non-STI brake setup) requires a 5x100 STI Brembo brake swap first
• BRZ fitment requires factory Performance Package with Brembo brakes
• Sold individually -- order 2 for a complete rear pair

Features

• Street Series T2, entry-level enhanced performance rotor
• Improved braking straight out of the box
• Bi-symmetrical T2 slot design, quieter and more responsive pedal feel
• Evacuates gases created between pad and rotor, reduces brake fade
• Kangaroo Paw internal ventilation pattern
• 30% increased heat exchange surface vs. standard fin-cooled designs
• 20% improved disc cooling
• CBN (Cubic Boron Nitride) machine-turned friction surface
• Reduced disc thickness variation (DTV) and improved parallelism
• Anti-rust black paint on non-friction areas

Specifications

• Position: Rear
• Surface design: Slotted, uni-directional
• Rotor type: Vented
• Outside diameter: 316mm
• Overall height: 64mm
• Discard thickness: 20mm
• Nominal thickness: 20mm
• Center hole diameter: 58mm
• Bolt holes: 10-stud (5x100 & 5x114.3 compatible)

Included Components

• 1x Rear Slotted Brake Rotor

Product Description

DBA's Street Series T2 brings genuine entry-level, enhanced performance to the shared Subaru WRX STI/BRZ rear brake platform, offering improved braking straight out of the box. The patented bi-symmetrical T2 slot design delivers a quieter, more responsive brake pedal feel while helping evacuate gases created between the pad and rotor surface -- reducing brake fade and improving pad bite for the performance-conscious street driver.

DBA's signature Kangaroo Paw internal ventilation pattern increases the heat exchange surface by 30% without compromising the rigidity of the disc structure, improving disc cooling by roughly 20% over conventional fin-cooled designs. The CBN (Cubic Boron Nitride) machine-turned friction surface reduces disc thickness variation and improves parallelism, delivering a more dimensionally precise and stable surface than ground-finished rotors -- meaning reduced potential for pad "knock" and increased rotor longevity.

Anti-rust black paint protects all non-friction areas, keeping the rotor looking great even in harsh conditions. Note: rear position only, sold individually -- order 2 for a complete rear pair. Standard 2008-2014 WRX models require a 5x100 STI Brembo brake swap for compatibility, and BRZ fitment requires the factory Performance Package with Brembo brakes.
