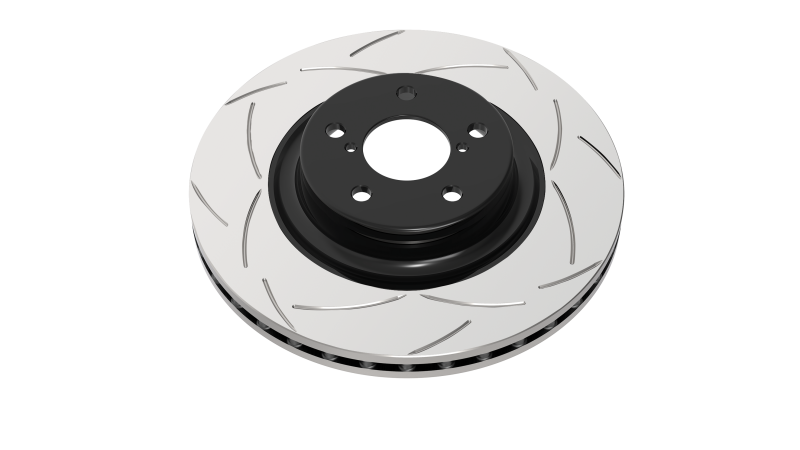

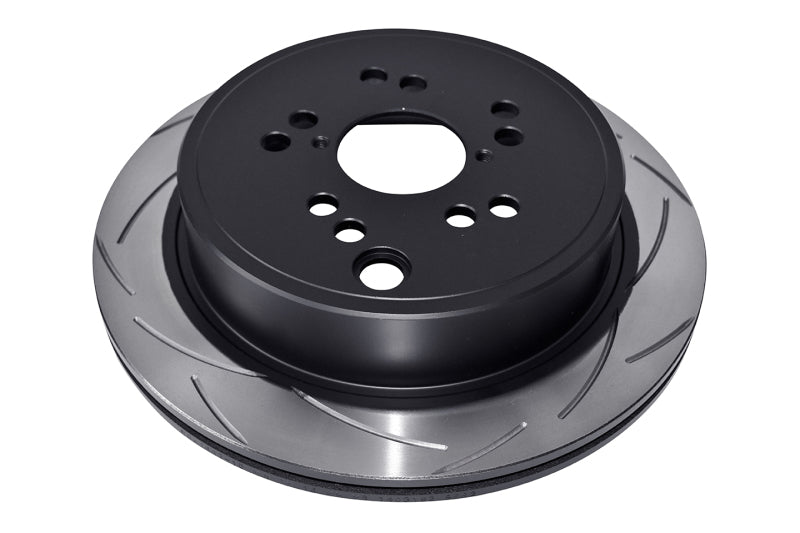

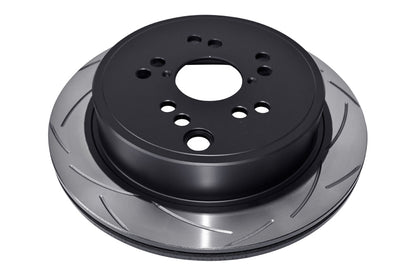

Disc Brakes Australia DBA2659S-10 Street Series T2 Rear Rotor for Subaru/Toyota

Vehicle Fitment

• 2013-2020 Subaru BRZ (Rear, Non-Brembo)
• 2022-2025 Subaru BRZ (Rear, Non-Brembo)
• 2013-2016 Scion FR-S (Rear)
• 2017-2020 Toyota 86 (Rear)
• 2022-2025 Toyota GR 86 (Rear)
• 2010-2012 Subaru Outback (3.6R, Rear)
• 2010 Subaru Legacy (2.5/3.6, Rear)

Features

• DBA Street Series T2 rear brake rotor with precision bi-symmetrical CNC-machined slots
• T2 slot design increases brake pad bite by helping friction dust and gases escape
• Kangaroo Paw ventilation pattern enhances cooling efficiency under repeated braking
• High carbon alloy vented rotor construction for strength and durability
• CBN (Cubic Boron Nitride) machined finish minimizes disc thickness variation and brake judder
• Symmetrical slot pattern allows universal left/right rear installation
• Painted non-friction areas help resist corrosion and improve longevity
• Direct OE replacement - bolt-on fit with no vehicle modifications required

Specifications

• Rotor Position: Rear
• Outer Diameter: 290 mm
• Nominal Thickness: 18 mm
• Minimum Thickness: 16 mm
• Overall Height: 61.7 mm
• Centering Diameter: 58.02 mm
• Bolt Pattern: 10 holes (fits 5x100 mm & 5x114.3 mm)
• Surface Design: Slotted (T2), Vented

Included Components

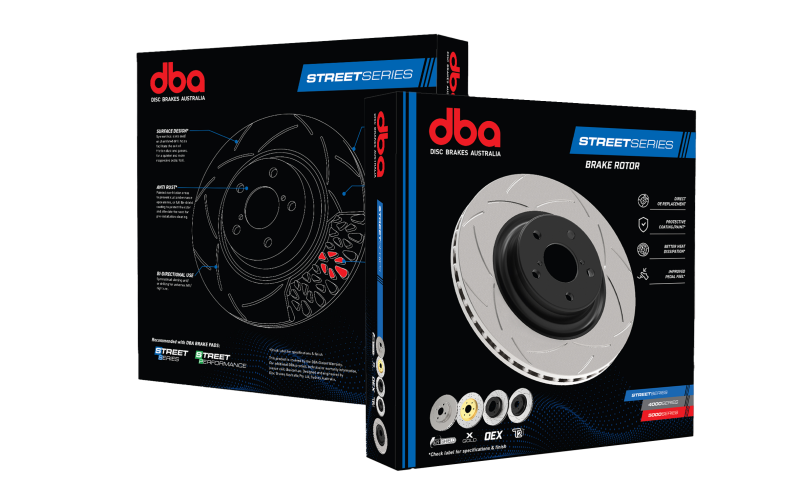

• 1x Disc Brakes Australia Street Series T2 Slotted Rear Rotor (DBA2659S-10)

Product Description

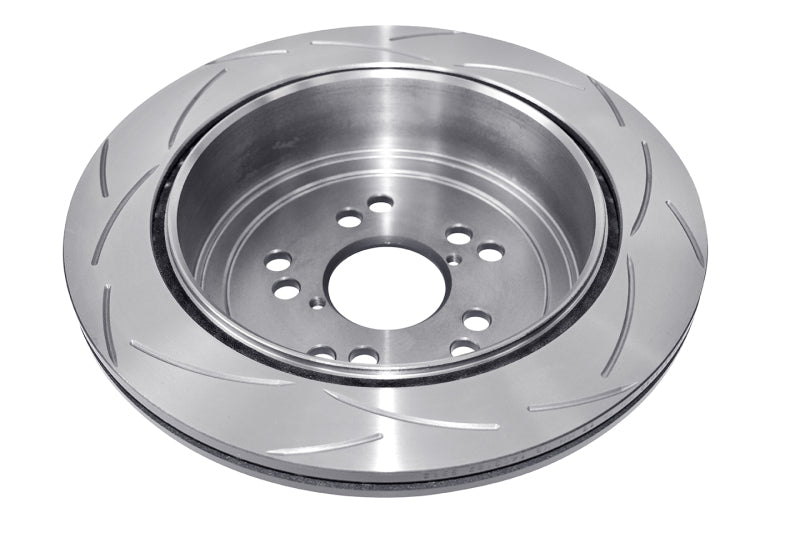

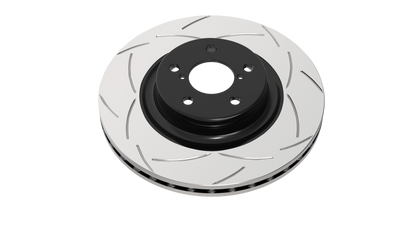

The Disc Brakes Australia DBA2659S-10 Street Series T2 Slotted Rear Rotor is engineered as a direct OE replacement for a variety of Subaru and Toyota vehicles with a 10-hole rear hub pattern. Its precision CNC-machined T2 slot design improves brake pad contact by efficiently helping friction dust and gases escape, while the patented Kangaroo Paw ventilation pattern boosts cooling efficiency to reduce fade during everyday driving and spirited use. This vented slotted rotor is designed from high carbon alloy iron for enhanced durability and thermal stability, delivering a strong balance of performance and everyday usability.

Finished with a CBN (Cubic Boron Nitride) machined surface to reduce disc thickness variation and brake judder, the DBA2659S-10 also features corrosion-resistant paint on non-friction areas for long service life. Its symmetrical slot pattern allows universal left/right rotor installation, and the direct bolt-on fit means no vehicle modifications are required. This rotor fits compatible rear axle applications on Subaru BRZ, Scion FR-S, Toyota 86/GR 86, and select Subaru Outback and Legacy models, making it an excellent choice for drivers seeking improved rear braking performance over stock rotors.
