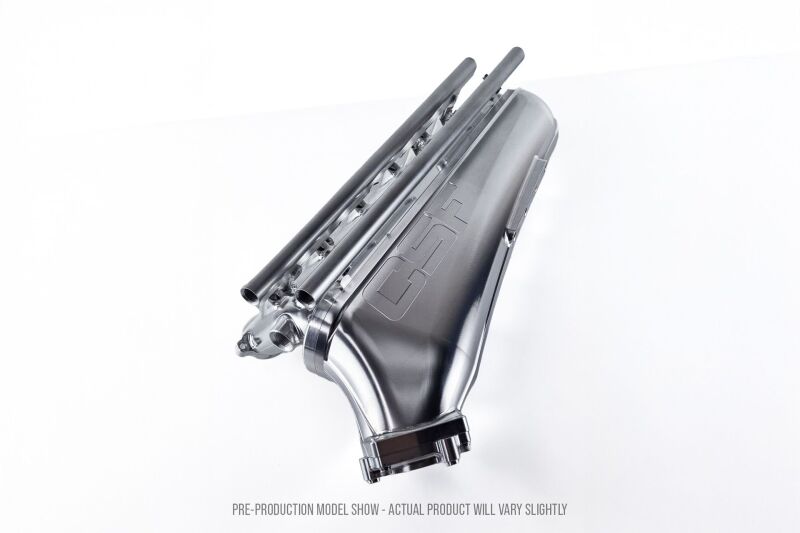

CSF 8402 Billet Competition Intake Manifold for 2020-2026 BMW S58 M2/M3/M4/X3M

Vehicle Fitment

• 2021-2026 BMW M3 (G80, S58) - 6MT & ZF8 Auto, incl. Competition
• 2022-2026 BMW M3 Touring (G81, S58) - 6MT & ZF8 Auto, incl. Competition
• 2021-2026 BMW M4 (G82/G83, S58) - 6MT & ZF8 Auto, incl. Competition
• 2022-2026 BMW M2 (G87, S58) - 6MT & ZF8 Auto, incl. Competition
• 2020-2026 BMW X3 M (F97, S58), incl. Competition
• 2020-2026 BMW X4 M (F98, S58), incl. Competition

Fitment Notes

• Motorsport use only - requires extensive supporting modifications to install
• Also compatible with S58-swapped platforms outside factory applications
• Throttle body flange is sized for a 77mm S55-spec throttle body, not stock B58/S58 bore; VTT-FAB extension harness (B58/S58-to-S55 TB conversion) recommended for a clean install

Features

• CNC-machined from solid 6061 billet aluminum, built for extreme-boost setups (1500+ HP capable)
• Internal velocity stacks for smooth, balanced airflow into each cylinder
• CFD-optimized runner design to eliminate airflow imbalance and cylinder scavenging issues
• Larger 77mm S55-spec throttle body flange for increased airflow over the stock B58/S58 bore
• Modular top-runner ports usable for secondary port injection, nitrous, or methanol injection
• Two integrated sensor pads for extra parameter monitoring or vacuum sources
• High-pressure O-ring sealed construction rated to 100+ psi (7+ bar)
• Included Thermal Rejection Manifold Spacer lowers intake manifold temps by up to 15%
• S58 version includes a billet oil filter housing adapter for filter access without manifold removal

Specifications

• Material: Solid 6061 billet aluminum, CNC-machined
• Throttle body bore: 77mm, S55-spec (BMW 13-54-7-597-871 compatible)
• Fuel injection: Top-feed, supports 6 or 12 injectors
• Sensor ports: 1x OEM TMAP, 2x 1/4 NPT, 4x 1/8 NPT
• Pressure rating: 100+ psi (7+ bar), O-ring sealed
• Finish: Raw billet aluminum (custom finishes available)
• Position: Engine bay, replaces OEM intake manifold assembly

Included Components

• 1x Billet Competition Intake Manifold
• 1x Fuel Rail (6-injector top-feed configuration)
• 6x Injector Block-Off Plugs
• 1x Thermal Rejection Manifold Spacer
• 1x Hardware & Installation Kit (diagrams and BOM included)
• 1x Billet Oil Filter Housing Adapter

Product Description

The CSF 8402 is a fully CNC-machined, billet aluminum competition intake manifold engineered for BMW's S58 engine platform, purpose-built to push past the 1500 WHP ceiling that stock and drop-in manifolds run into. By relocating the charge cooler off the manifold entirely, it clears the way for a much larger front-mount intercooler and supports both air-to-air and air-to-water setups, giving serious builders flexibility in how they configure their cooling and boost systems.

Internal velocity stacks and a CFD-refined runner layout keep airflow even across all six cylinders, while the included Thermal Rejection Spacer helps control heat soak and keeps intake air temps down under sustained high-boost runs. It's a race-oriented part - installation requires supporting modifications including a throttle body conversion - making it best suited for dedicated drag, road-race, or high-horsepower street builds rather than daily-driven applications.
