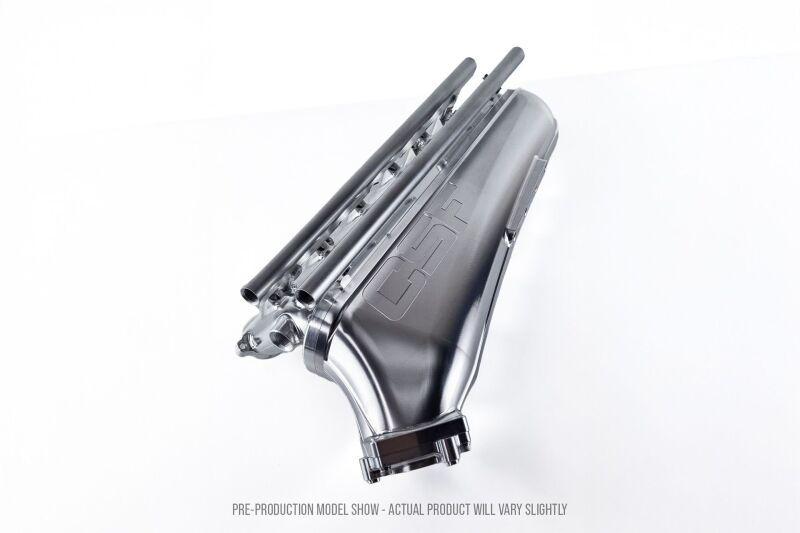

CSF 8401 Billet Competition B58 Manifold for 2016-2026 Supra/M240i/M340i/440i

Vehicle Fitment

• 2020-2023 Toyota GR Supra 3.0L (Base, Premium)
• 2020 Toyota GR Supra 3.0L (Launch Edition)
• 2021 Toyota GR Supra 3.0L (A91 Edition)
• 2022-2026 BMW M240i / M240iX (G42)
• 2018-2026 BMW M340i / M340iX (G20/G21)
• 2020-2026 BMW 440i (G22/G23/G26)
• 2017-2019 BMW M140i (F20/F21, legacy platform)
• 2017-2021 BMW M240i (F22/F23, legacy platform)
• 2016-2019 BMW 340i (F30/F31/F34, legacy platform)
• 2017-2020 BMW 440i (F32/F33/F36, legacy platform)

Fitment Notes

• Covers B58 Gen 1 and Gen 2 engines, including engine-swapped applications
• Motorsport use only - not CARB legal, not for sale or use on pollution-controlled vehicles in California
• Throttle body flange is sized for a 77mm S55-spec throttle body, not stock B58 bore; VTT-FAB extension harness (B58/S58-to-S55 TB conversion) recommended for a clean install

Features

• CNC-machined from solid 6061 billet aluminum, built for extreme-boost B58 setups (1500+ HP capable)
• Internal velocity stacks for smooth, balanced airflow into each cylinder
• CFD-optimized runner design to eliminate airflow imbalance and cylinder scavenging issues
• Larger 77mm S55-spec throttle body flange for increased airflow over the stock B58 bore
• Modular top-runner ports usable for secondary port injection, nitrous, or methanol injection
• Two integrated sensor pads for extra parameter monitoring or vacuum sources
• High-pressure O-ring sealed construction rated to 100+ psi (7+ bar)
• Included Thermal Rejection Manifold Spacer lowers intake manifold temps by up to 15%
• Plenum inlet angle designed for easier intercooler pipe routing

Specifications

• Material: Solid 6061 billet aluminum, CNC-machined
• Throttle body bore: 77mm, S55-spec (BMW 13-54-7-597-871 compatible)
• Fuel injection: Top-feed, supports 6 or 12 injectors
• Sensor ports: 1x OEM TMAP, 2x 1/4 NPT, 4x 1/8 NPT
• Pressure rating: 100+ psi (7+ bar), O-ring sealed
• Finish: Raw billet aluminum (custom finishes available)
• Position: Engine bay, replaces OEM intake manifold assembly

Included Components

• 1x Billet Competition Intake Manifold
• 1x Fuel Rail (6-injector top-feed configuration)
• 6x Injector Block-Off Plugs
• 1x Thermal Rejection Manifold Spacer
• 1x Hardware & Installation Kit (diagrams and BOM included)

Product Description

The CSF 8401 is a fully CNC-machined, billet aluminum competition intake manifold built for BMW/Toyota B58 platforms, designed for builders chasing beyond the 1500 WHP ceiling that OEM-style and drop-in manifolds run into. Removing the charge cooler from the manifold entirely opens up room for a much larger front-mount intercooler core, and the design supports both air-to-air and air-to-water configurations depending on the build.

Internal velocity stacks and a CFD-refined runner layout keep airflow balanced across all six cylinders, while the included Thermal Rejection Spacer helps manage heat soak and keep intake air temps in check under sustained boost. It's a race-oriented part requiring supporting modifications - including a throttle body conversion - making it best suited for dedicated drag, road-race, or high-horsepower builds on the GR Supra, M240i, M340i, and 440i rather than daily-driven street cars.
