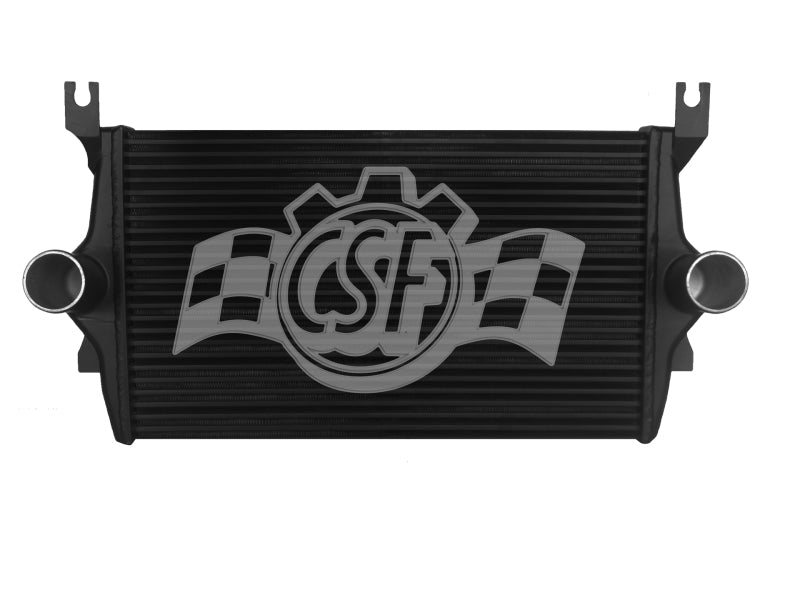

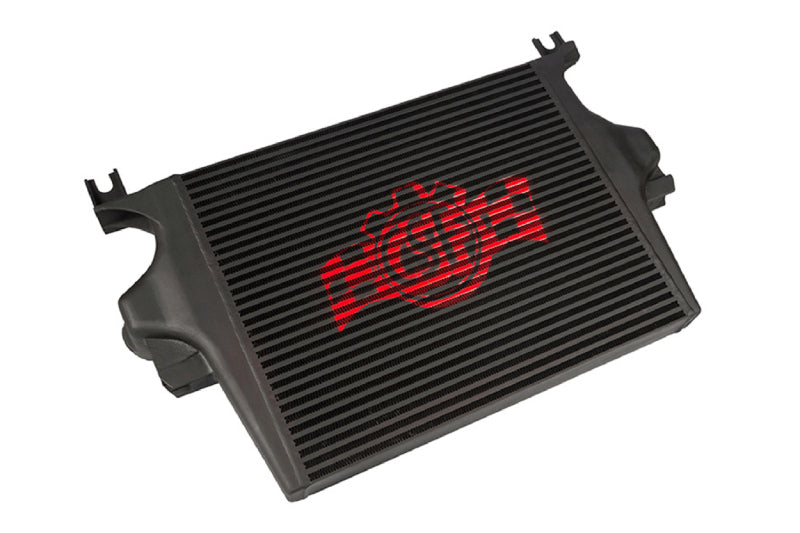

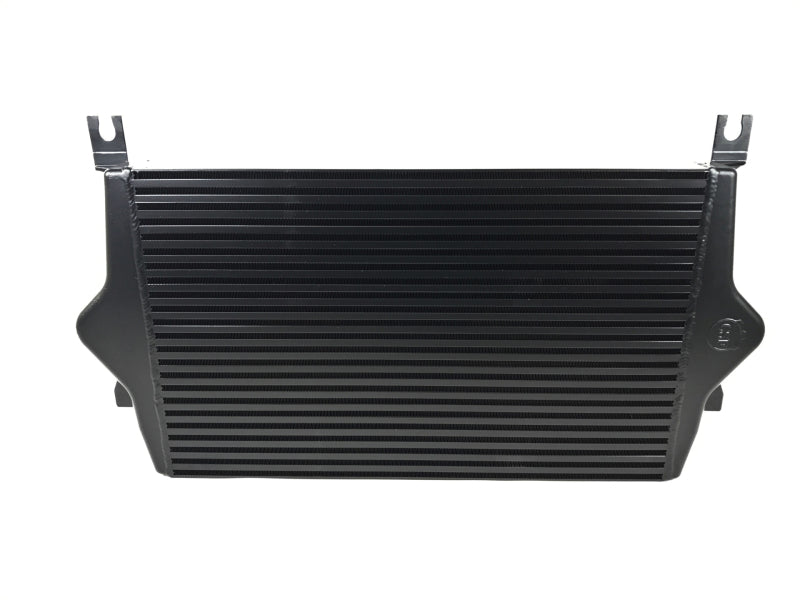

CSF 7107 Heavy-Duty Intercooler Ford Super Duty 7.3L Powerstroke 1999-2003

Vehicle Fitment

• 1999-2003 Ford F-250 Super Duty (7.3L V8 Turbo Diesel Powerstroke, 2WD/4WD)
• 1999-2003 Ford F-350 Super Duty (7.3L V8 Turbo Diesel Powerstroke, 2WD/4WD)
• 1999-2003 Ford F-450 Super Duty (7.3L V8 Turbo Diesel Powerstroke)
• 1999-2003 Ford F-550 Super Duty (7.3L V8 Turbo Diesel Powerstroke)

Fitment Notes

• Drop-in, bolt-in replacement - no modifications required; retains all factory hardware, mounting brackets, and charge-air piping connections
• Designed to OEM specifications for mounting position and connection orientation; factory boots and clamps are reused
• For the 6.4L Powerstroke intercooler application (2008-2010), see a separate CSF part number

Features

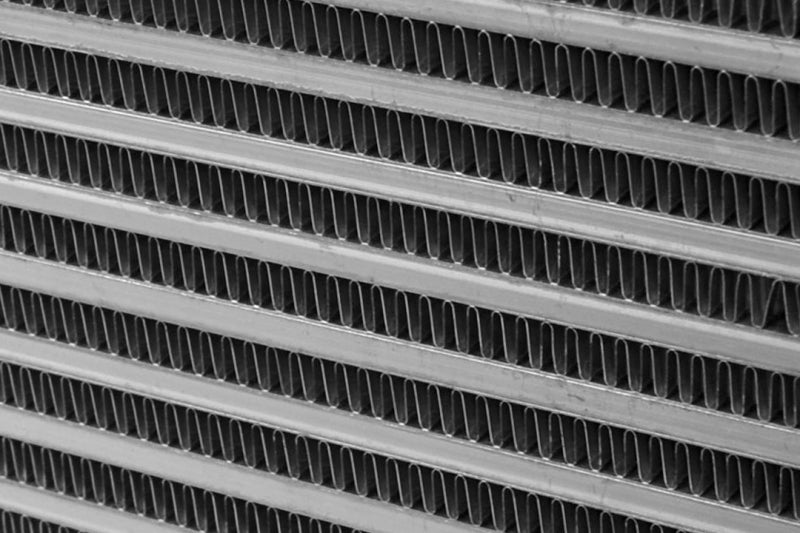

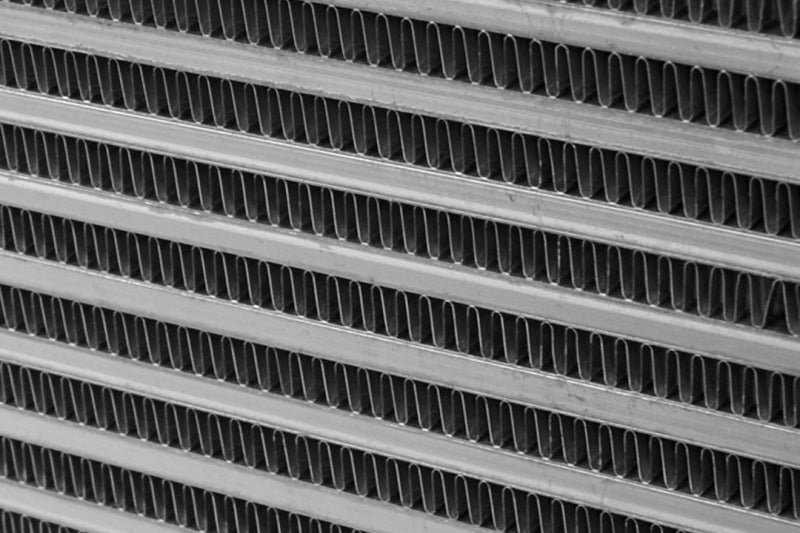

• Heavy-duty bar and plate core construction with 100% TIG welded all-aluminum build - significantly more durable and pressure-resistant than the OEM tube-and-fin intercooler design, which is susceptible to deformation and leakage under elevated boost on modified 7.3L Powerstroke applications
• Pressure tested and rated to over 120 PSI - engineered to withstand the sustained high-boost demands of upgraded injection, tuning, and forced induction modifications on the 7.3L platform
• Bar and plate core design provides greater internal volume and surface area density compared to tube-and-fin designs, delivering lower charge air temperatures entering the engine - directly reducing exhaust gas temperatures (EGTs) and allowing higher boost levels to be run safely
• All-aluminum cast end-tanks with CSF's high-quality thermal-rejection powdercoat finish in black

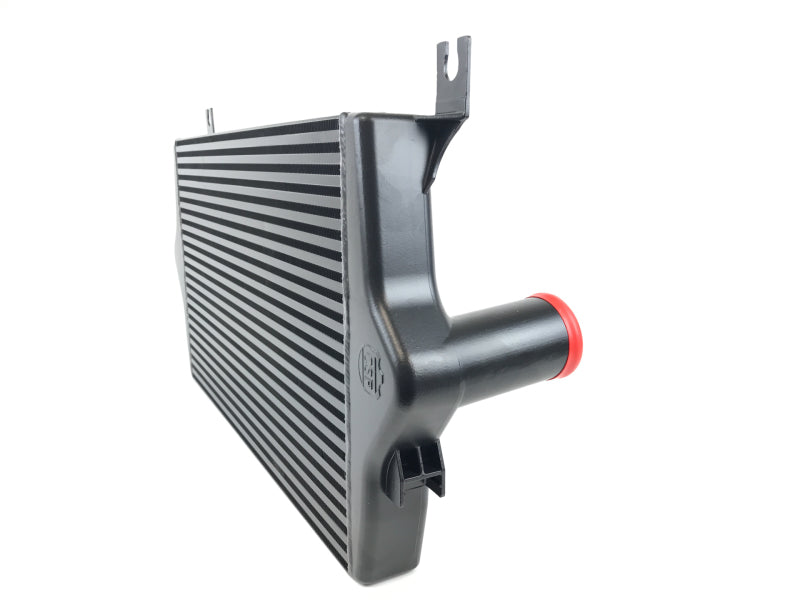

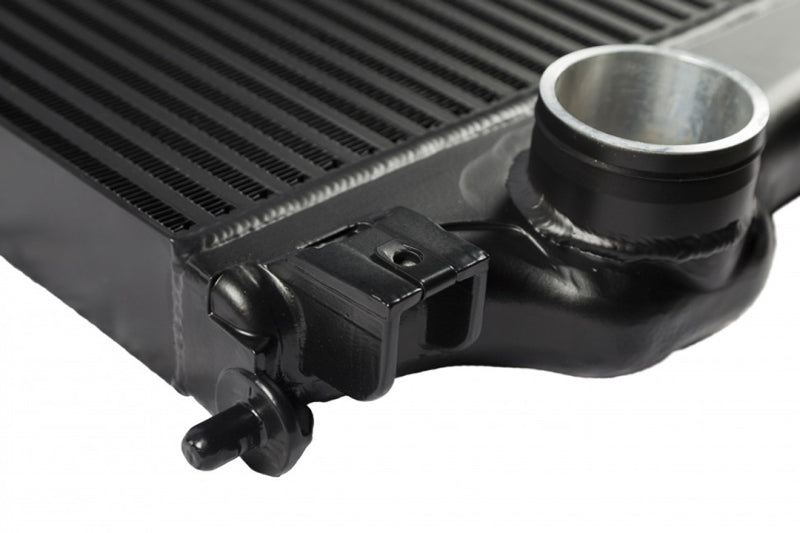

• Precise quick-connect inlet/outlet connections match OEM charge-air piping for a secure, leak-free installation using factory boots and clamps
• Designed and validated to deliver measurably cooler charge air temperatures compared to the stock 7.3L Powerstroke intercooler - reducing heat soak and improving power consistency under sustained load, towing, and high-EGT operating conditions

Specifications

• Part Number: CSF 7107
• Part Type: Heavy-Duty Charge-Air Cooler (Intercooler)
• Product Line: CSF Turbo Diesel Charge-Air Coolers
• Construction: Bar and Plate, 100% TIG Welded, All-Aluminum
• End-Tanks: All-Aluminum Cast
• Finish: Black Powdercoat (thermal-rejection)
• Burst Pressure Rating: 120+ PSI
• Length: 23 in
• Width: 41 in
• Height: 13 in
• Weight: 60 lbs
• Application: 1999-2003 Ford Super Duty 7.3L Powerstroke

Included Components

• 1x CSF 7107 Heavy-Duty Intercooler

Product Description

The CSF 7107 is a heavy-duty bar and plate charge-air cooler (intercooler) engineered as a drop-in replacement for the 1999-2003 Ford F-250, F-350, F-450, and F-550 Super Duty equipped with the 7.3L Powerstroke turbo diesel engine. Dropping exhaust gas temperatures is one of the most effective ways to protect the 7.3L Powerstroke under hard use - and upgrading the intercooler is the most direct path to doing so. The CSF 7107 replaces the factory tube-and-fin unit with a 100% TIG welded all-aluminum bar and plate core, delivering greater internal volume, higher surface area density, and significantly improved charge air cooling efficiency. The result is cooler, denser air entering the engine, lower EGTs, and more consistent power under sustained load and towing conditions.

The bar and plate construction is inherently more pressure-resistant than tube-and-fin designs, with the CSF 7107 rated to over 120 PSI burst pressure - making it well-suited to modified 7.3L builds running elevated boost from upgraded injectors, a tuner, or a larger turbo. All factory hardware, mounting points, and charge-air piping connections are retained for a bolt-in installation with no modifications. Black thermal-rejection powdercoat finish and all-aluminum cast end-tanks complete the assembly.
