CSF 7075 Full-Slim Radiator w/ 12" Fan for 1996-2007 Mitsubishi Evo 4/5/6/7/8/9

Vehicle Fitment

• 1996-2001 Mitsubishi Evo IV/V/VI (CN9A/CP9A)
• 2001-2007 Mitsubishi Evo VII/VIII/IX (CT9A)

Fitment Notes

• Requires Evo 4-6 style upper hose on Evo 7-9
• Manual transmission only
• No modifications necessary

Features

• Full-size slim design
• All-aluminum construction
• Sealed aluminum fan shroud
• 12in SPAL fan, driver side
• B-Tube technology
• Multi-louvered fins
• 1.4 bar pressure cap included
• Adjustable -16AN or slip-on fittings
• Mirror polish finish

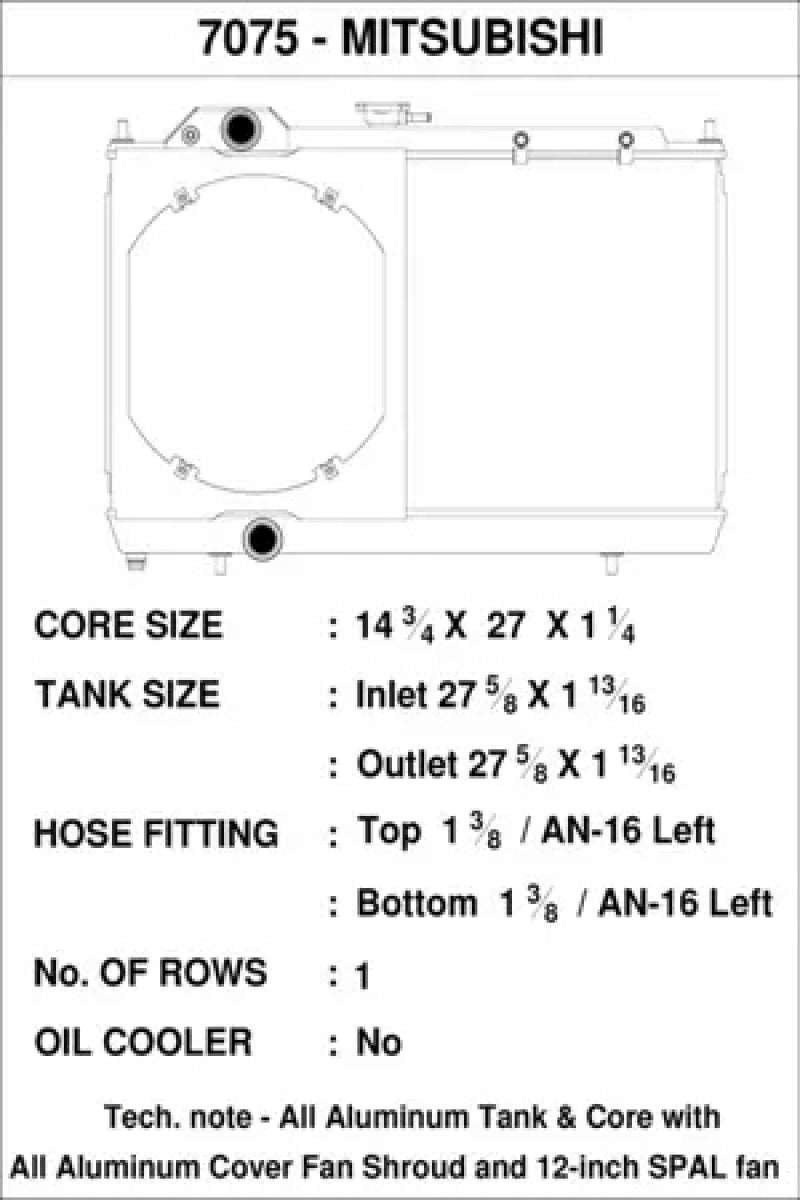

Specifications

• Material: Aluminum
• Style: Downflow
• Finish: Polished
• Fan size: 12in, SPAL
• Transmission cooler: No
• Fittings: Adjustable -16AN or slip-on
• Pressure cap: 1.4 bar

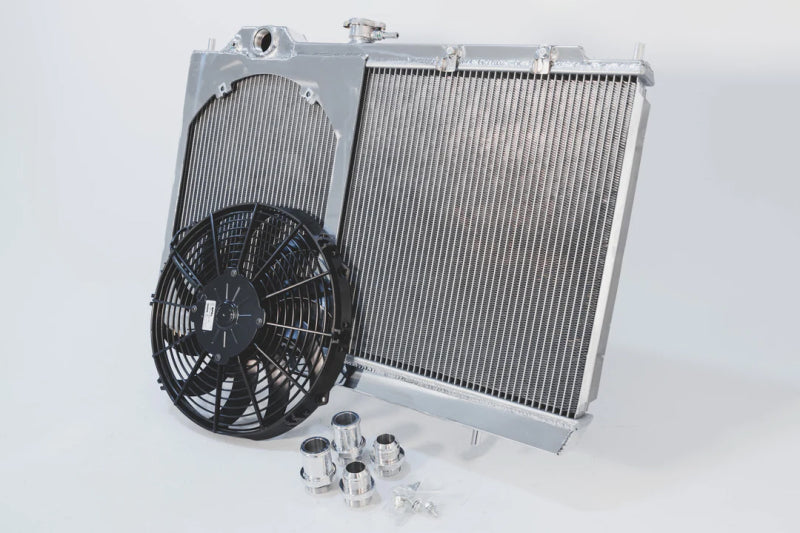

Included Components

• 1x Full-slim aluminum radiator
• 1x 12in SPAL fan
• 1x Fan shroud
• 1x 1.4 bar pressure cap

Product Description

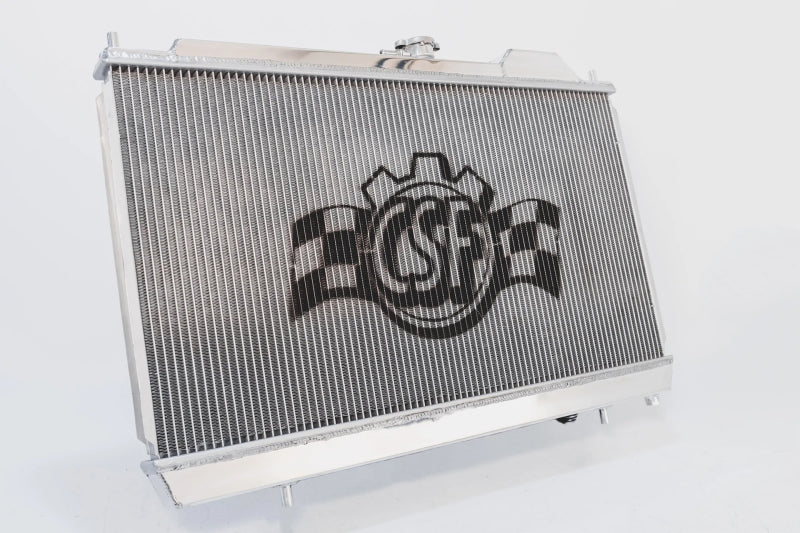

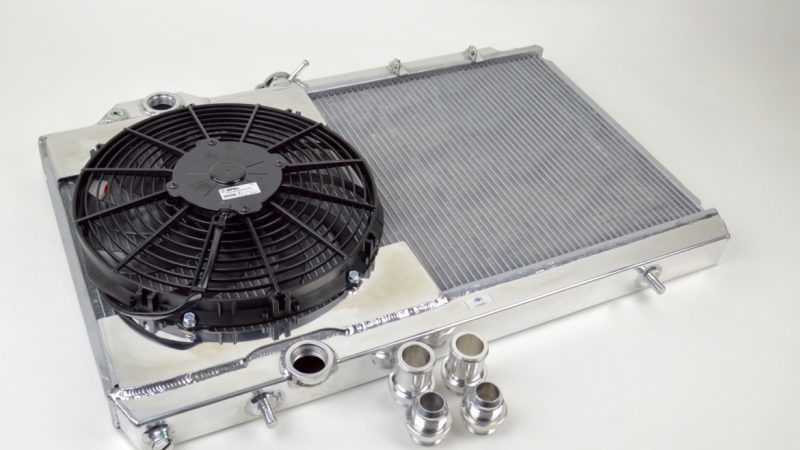

The CSF 7075 is a polished full-slim racing radiator with a built-in 12-inch SPAL fan and shroud, engineered specifically for the shared Mitsubishi Lancer Evolution platform spanning the IV, V, VI, VII, VIII, and IX. Developed with R&D support from Sheepey Built, this all-aluminum radiator uses specially engineered "B" shaped tubes brazed over the seam, delivering approximately 15% more heat transfer than a regular tube design.

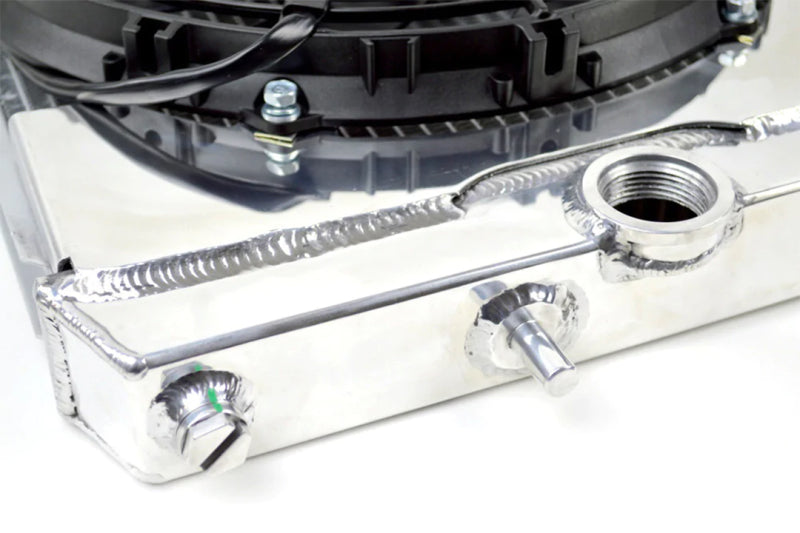

The radiator uses the Evo 4-6 style upper end tank, with the top inlet moved left for proper turbo clearance. This same tank is fully compatible with the later Evo 7-9 chassis, though it requires the corresponding Evo 4-6 style upper hose rather than the factory Evo 7-9 hose. A fully sealed shroud houses the 12-inch SPAL fan on the driver's side.

This radiator is intended for Evo owners across the full IV-IX platform looking for genuine, race-proven cooling performance. Every unit undergoes a 30-point fitment inspection and includes a 1.4 bar pressure cap and adjustable -16AN or slip-on fittings; some parts not legal for use in California or similar states.
