CSF 3054 2-Row Aluminum Radiator for 1988-1999 BMW E30/E36 320i/323i/325i/M3 RWD

Vehicle Fitment

• 1988-1991 BMW 3 Series E30 (320i, 325i, 325is, 325ix; manual transmission, RWD)
• 1992-1999 BMW 3 Series E36 (320i, 323i, 325i, 325is, 328i; manual/auto, RWD)
• 1993-1999 BMW M3 (E36; manual transmission, RWD)

Features

• 2-row B-Tube core with 42 mm thickness for high cooling capacity
• Dual laminar flow increases tube surface area ~15 %
• Multi-louvered fins with 6.5 mm height optimize airflow
• CAD/CAM-designed precision and alignment

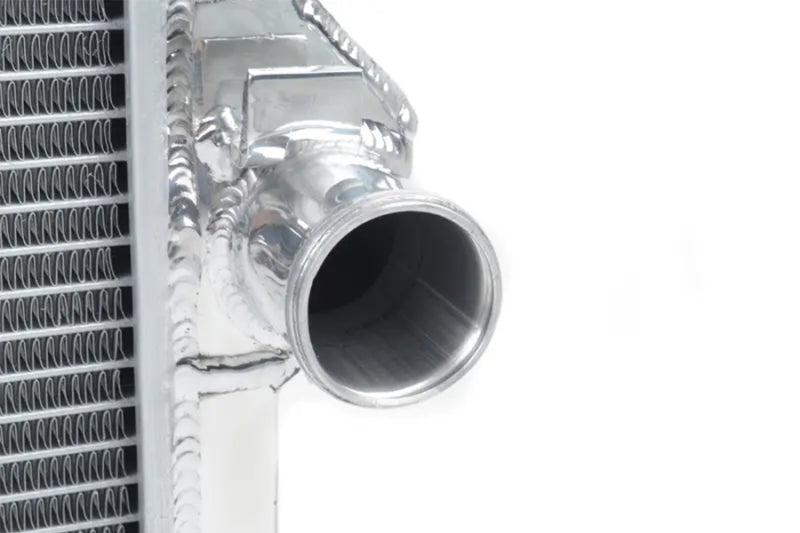

• CNC-machined "quick-connect" inlet/outlet and brackets
• Race-style aluminum drain plug
• Drop-in fit using OEM hoses, fan shroud & AC condenser
• Individually leak and pressure tested

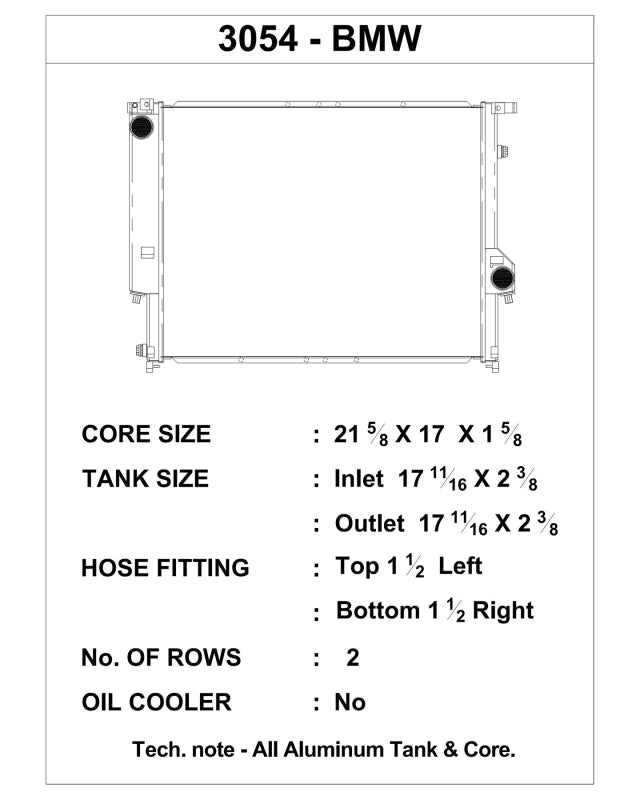

Specifications

• Construction: 100 % TIG-welded aluminum (end-tanks & core)
• Core type: 2-row, 42 mm thick B-Tube
• Fin height: 6.5 mm multi-louvered
• Drivetrain: RWD only
• Transmission: Manual and automatic supported (E36); E36 M3 manual only
• OEM replacements: Replaces BMW PN 17111723784/728908/723694/241912 :contentReference[oaicite:7]{index=7}
• Fitment confirmed 1988-1999; 2000+ not supported

Included Components

• 1x CSF 3054 aluminum radiator
• Mounting brackets and hardware

Product Description

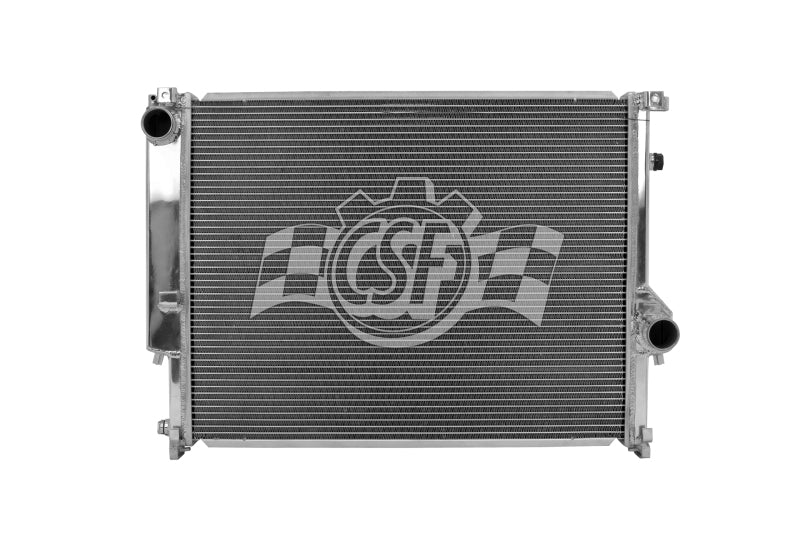

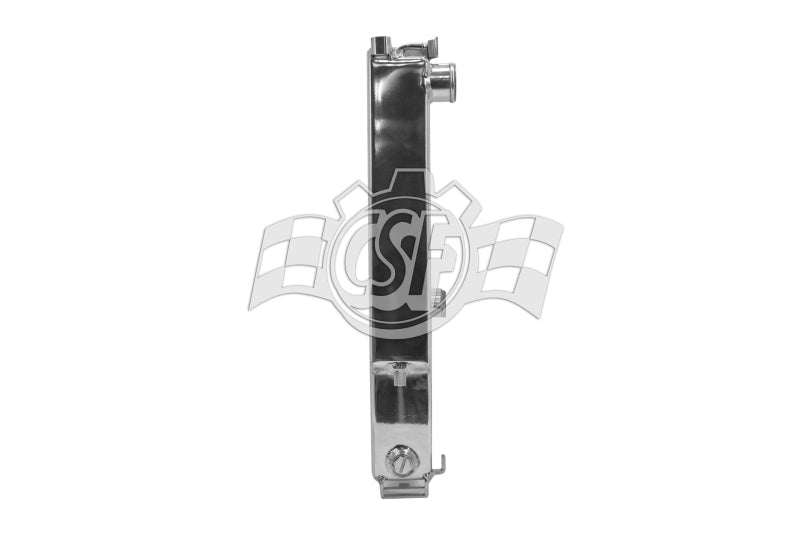

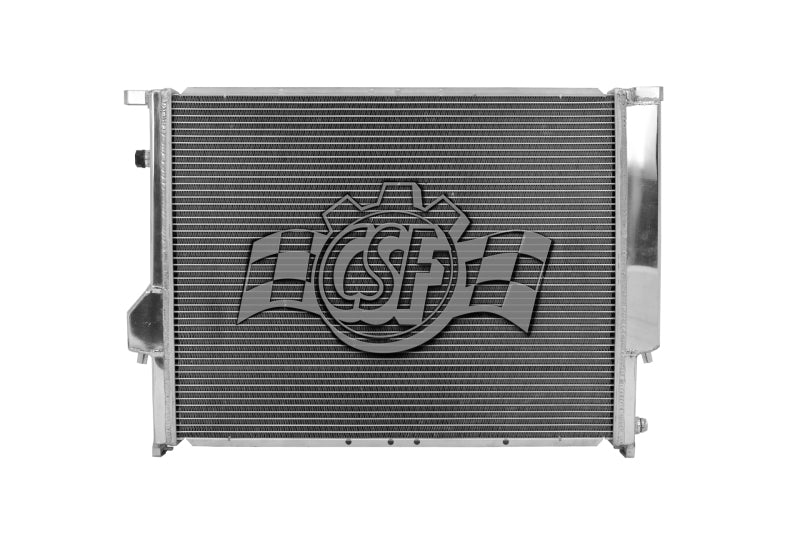

The CSF 3054 high-performance aluminum radiator is engineered as a direct replacement for select BMW E30 and E36 models, including the E36 M3 from 1988-1999. Featuring a heavy-duty 2-row, 42 mm thick B-Tube core and multi-louvered fins, it delivers approximately 25-30% improved cooling over stock units, ideal for spirited driving and track use :contentReference[oaicite:8]{index=8}.

Constructed using TIG-welded aluminum end tanks and CNC-machined connections, the CSF 3054 installs directly using all factory components - no modifications needed. Each radiator is individually pressure and leak tested and finished with either satin or polished end tanks, complete with a race-style drain plug.

Designed for both manual and automatic E36 models and manual-only E36 M3 variants, this radiator ensures reliable temperature control under demanding conditions. Fitment is confirmed through 1999; coverage beyond 1999 is unconfirmed at listing time.
