CSF 8343 Dual Engine Oil Cooler Kit for 2023-2026 Civic Type R/Integra Type S

Vehicle Fitment

• 2023-2026 Honda Civic Type R (FL5), Turbocharged 2.0L L4 (K20C1)
• 2024-2026 Acura Integra Type S (DE5), Turbocharged 2.0L L4 (K20C1)

Fitment Notes

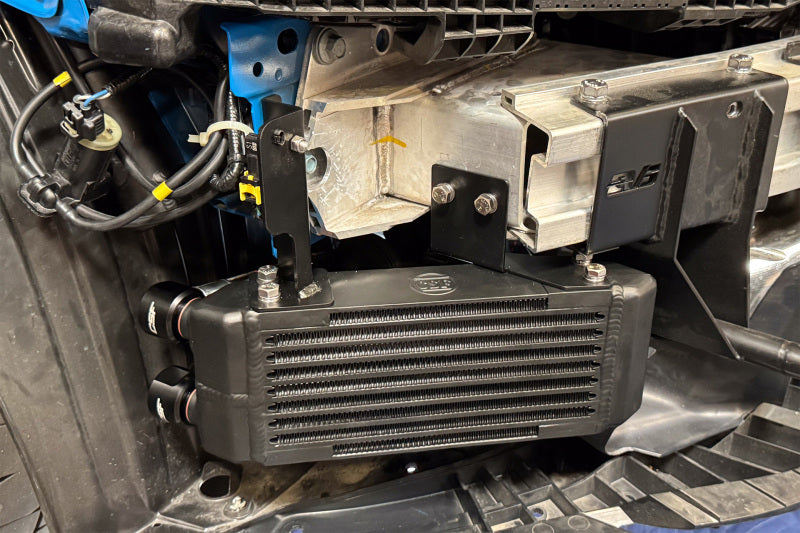

• FL5 install requires modifications: cutting/trimming the front bumper, fender liners, and brake ducts, plus installing rivet nuts on the crash beam rails
• DE5 install requires similar bumper, fender liner, and brake duct modifications; the included carbon fiber bumper vents are FL5-specific and require further modification of the factory bumper side inserts for proper airflow on DE5

Features

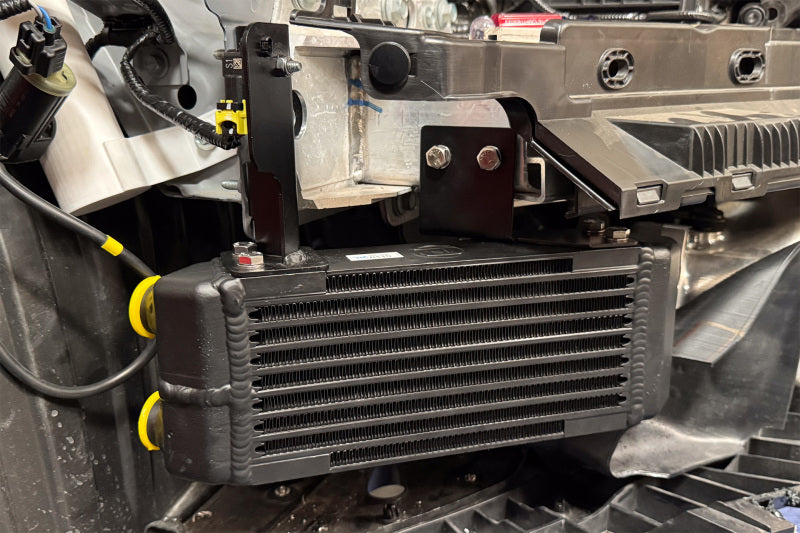

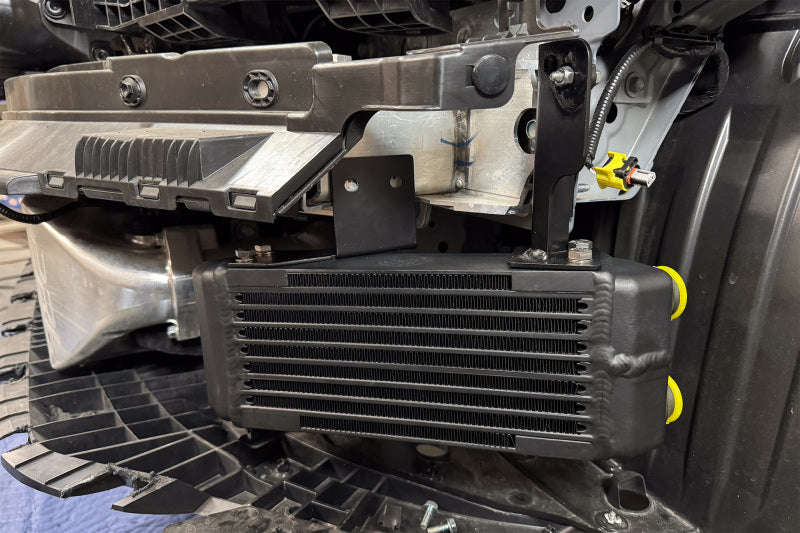

• Two CSF #8119 High-Performance Dual-Pass Oil Coolers for maximum heat dissipation
• Bar/Plate cores with CSF's Aero-Flow bar design for strength, durability, and reduced weight
• 100% TIG-welded construction, pressure tested to 120 PSI

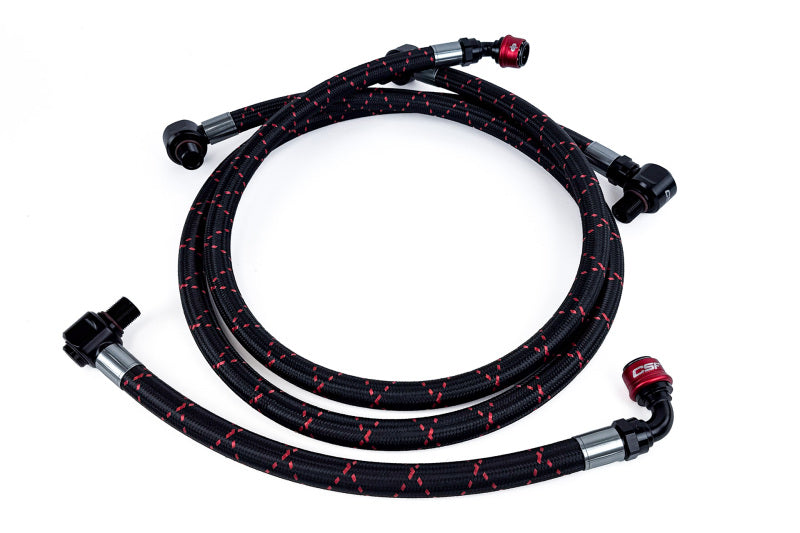

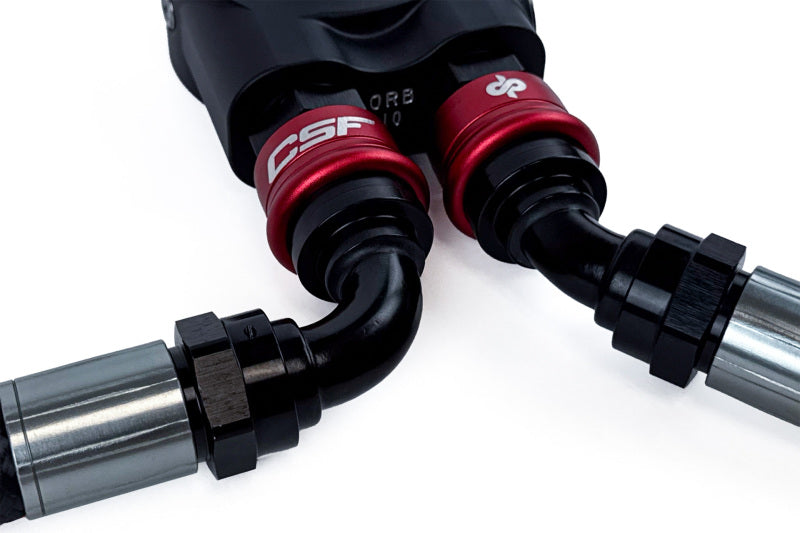

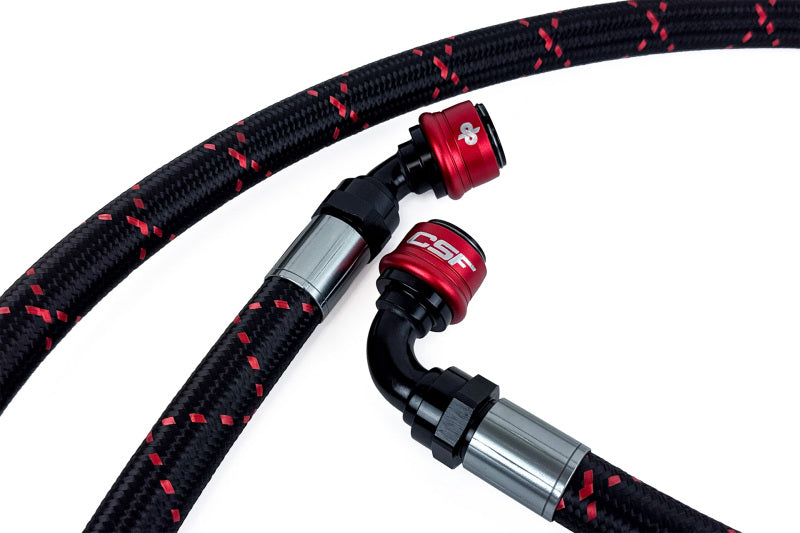

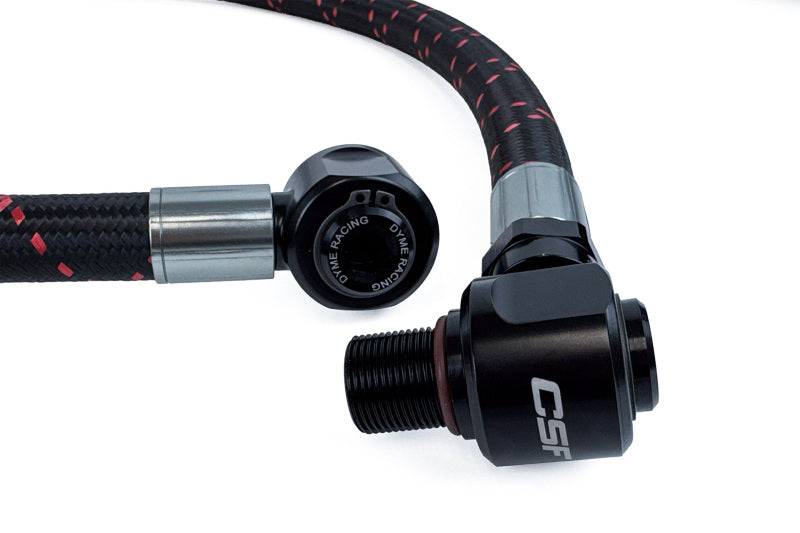

• Motorsport-grade stainless steel braided lines with DYME PSI quick-release fittings rated to 10,000 PSI

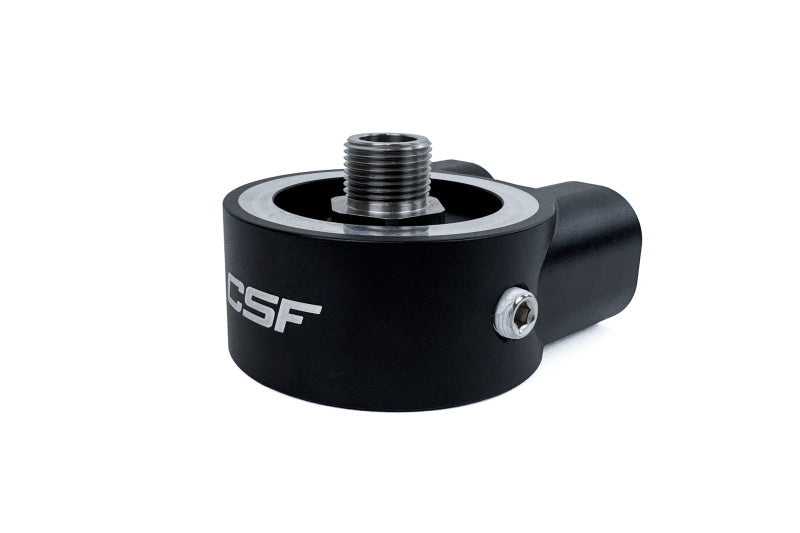

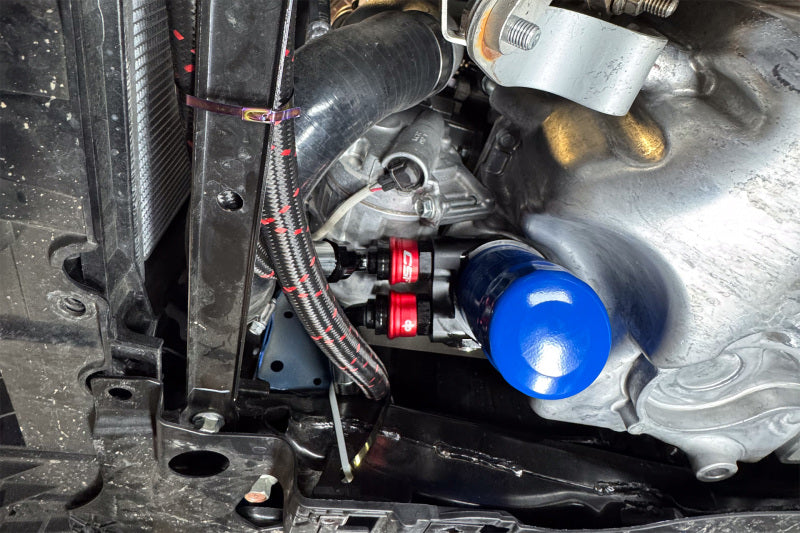

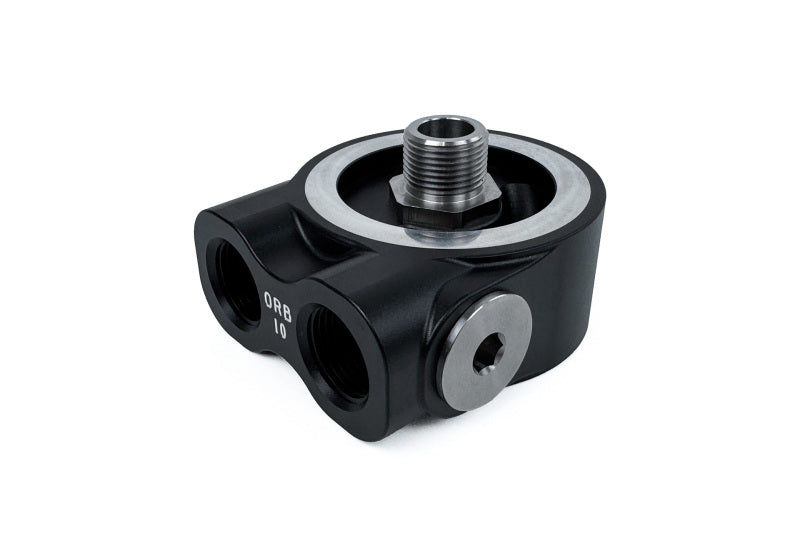

• CNC billet machined thermostatic sandwich plate opening between 175-195°F (80-90°C)
• Pre-plugged 1/8 NPT port for an aftermarket oil temperature sensor

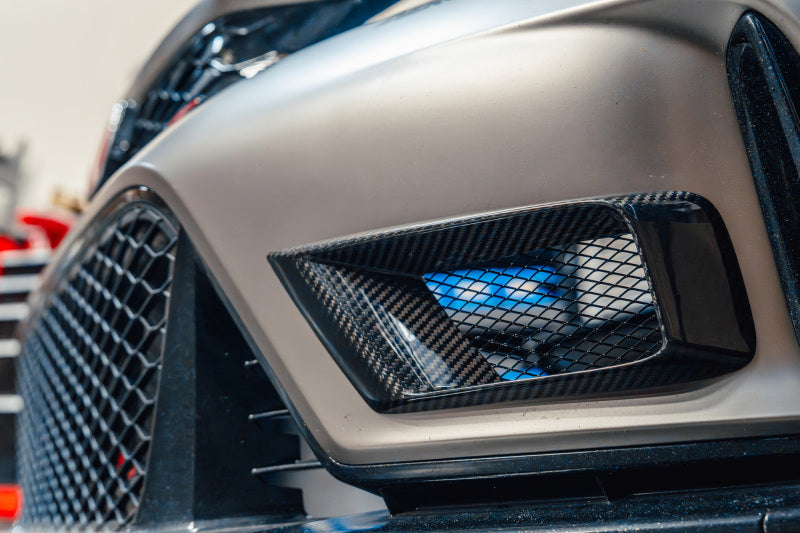

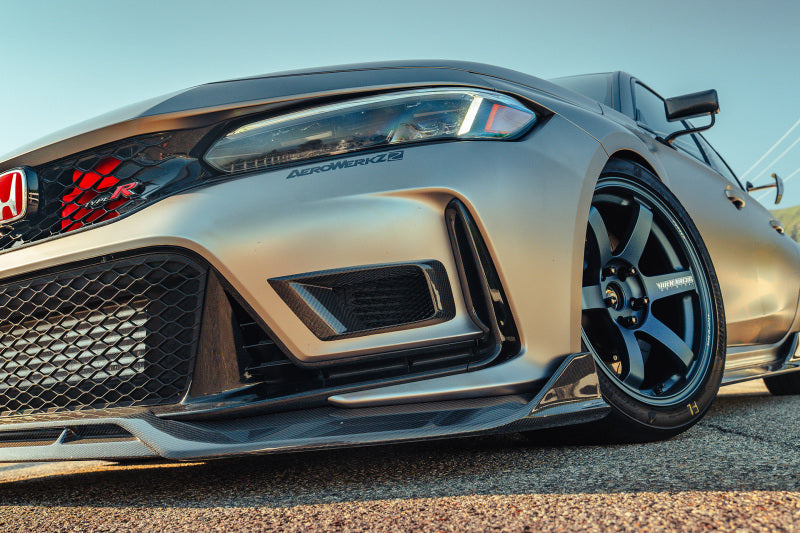

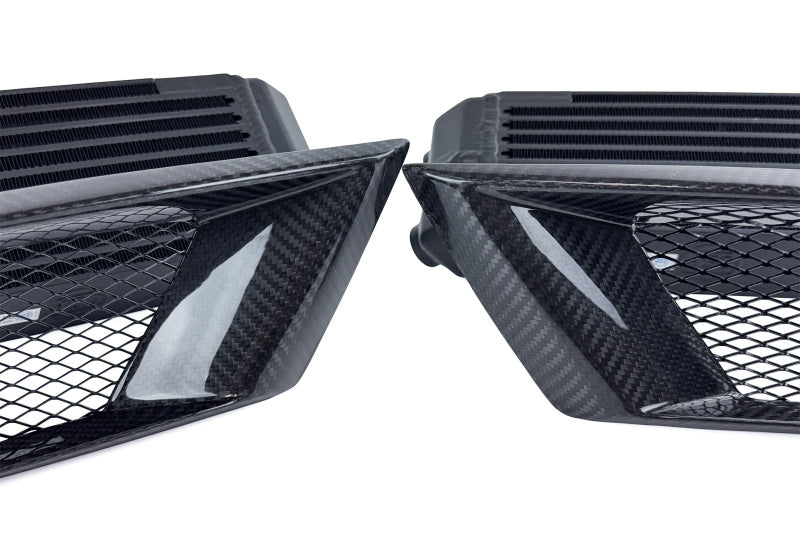

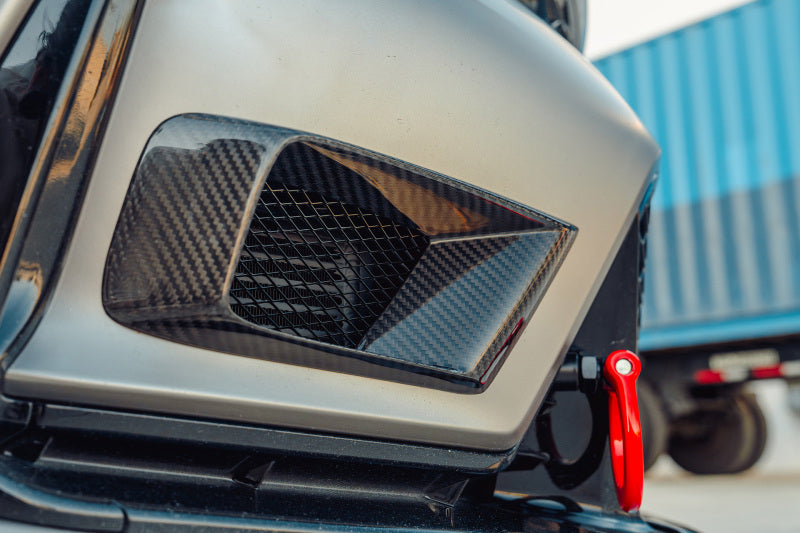

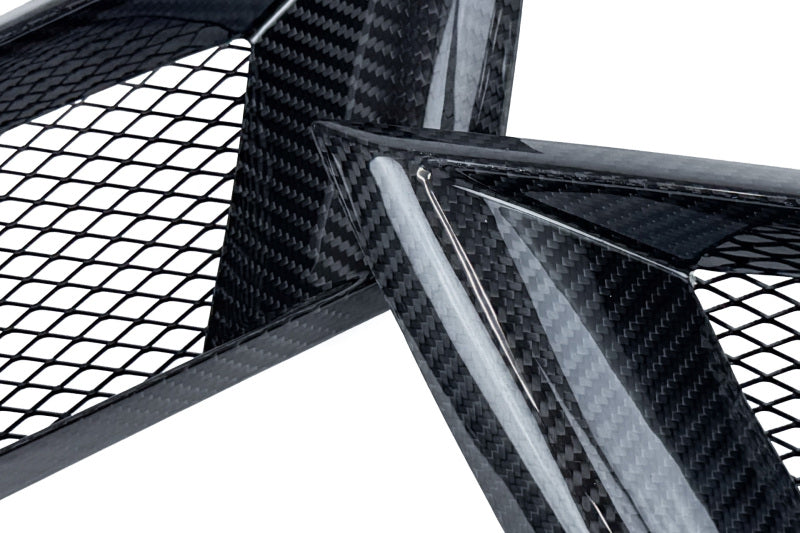

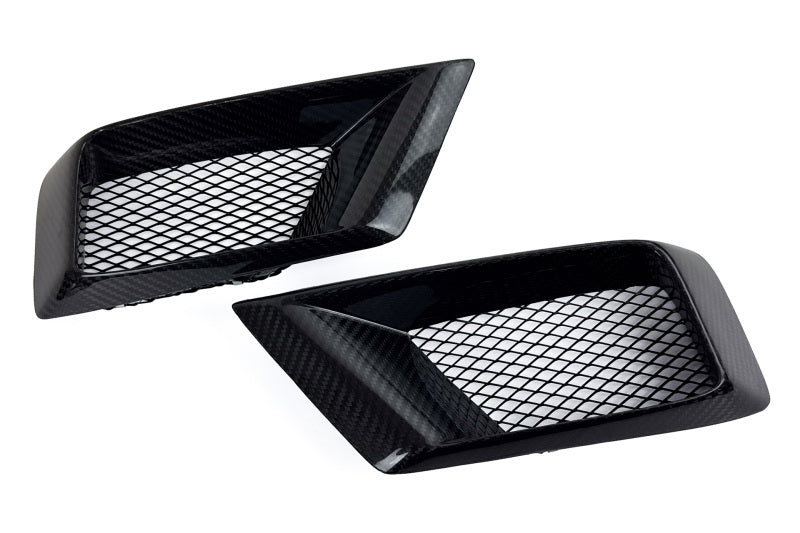

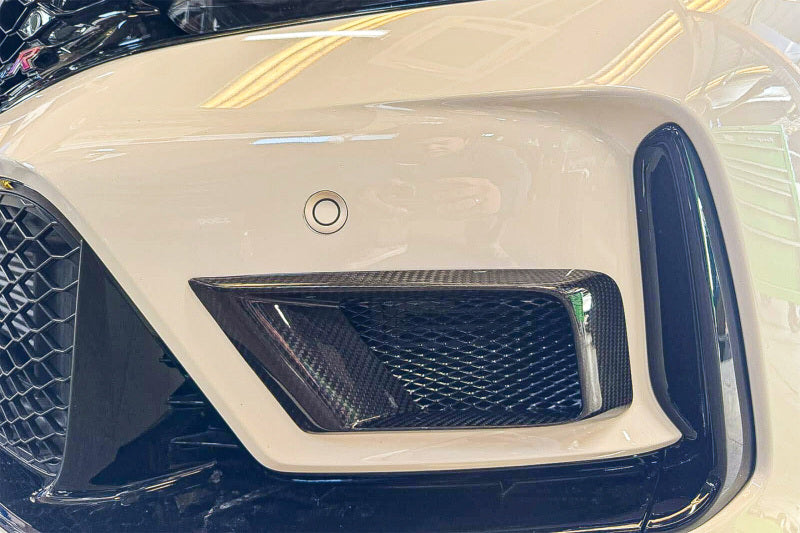

• Pre-preg carbon fiber bumper vents engineered with CFD software for optimal airflow

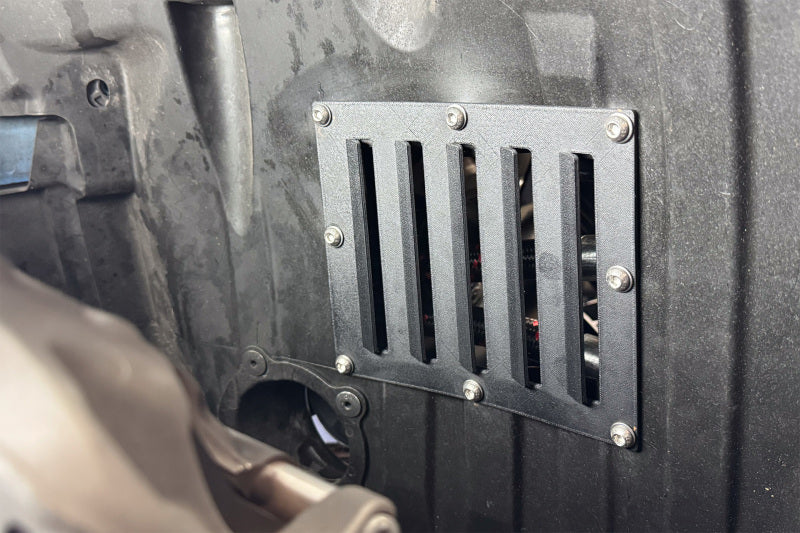

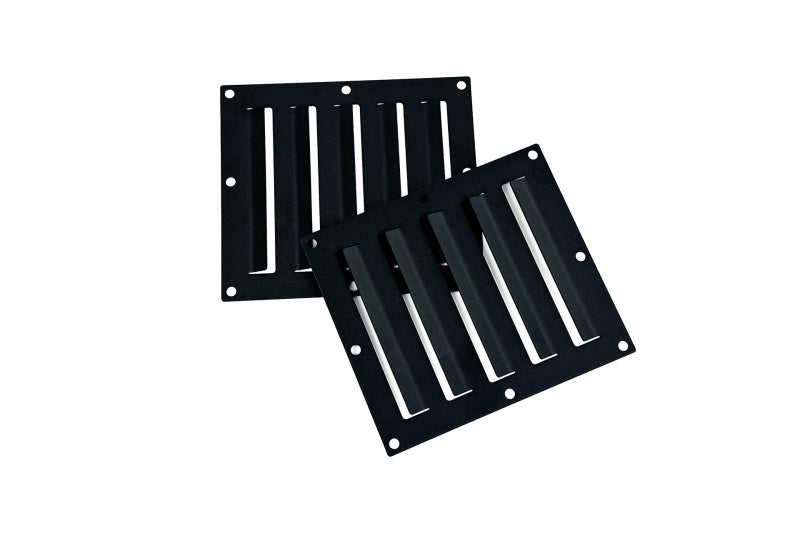

• Laser-cut louvered fender liner vents to improve airflow path and heat extraction

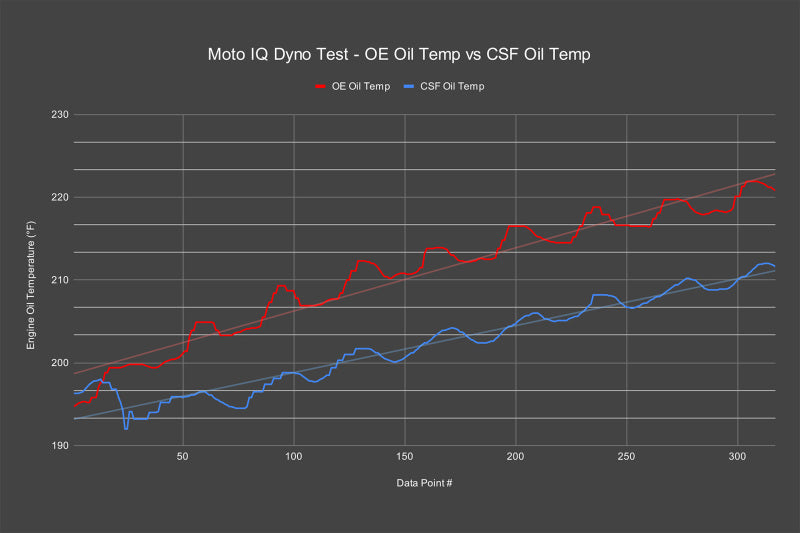

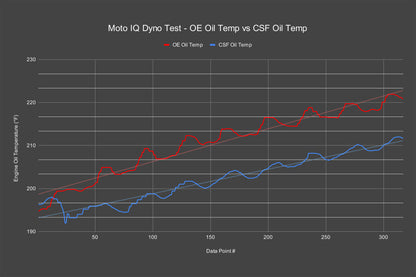

• Reduces oil temperatures by up to approximately 15°F (8°C) in CSF testing
• Includes a low-clearance replacement windshield washer reservoir to free up mounting space

Specifications

• Oil coolers: 2x dual-pass, bar/plate core, 13in x 4.5in (33cm x 11.5cm) each
• Thermostat range: 175-195°F (80-90°C)
• Total system oil capacity: approx. 7 quarts (6.6L)
• Oil cooler pressure rating: 120 PSI tested
• Quick-release fitting pressure rating: up to 10,000 PSI
• Line burst pressure: 2,000+ PSI
• Sandwich plate thread: M20x1.5 (fits OE filter or aftermarket up to 70mm diameter)
• Warranty: 2-year limited

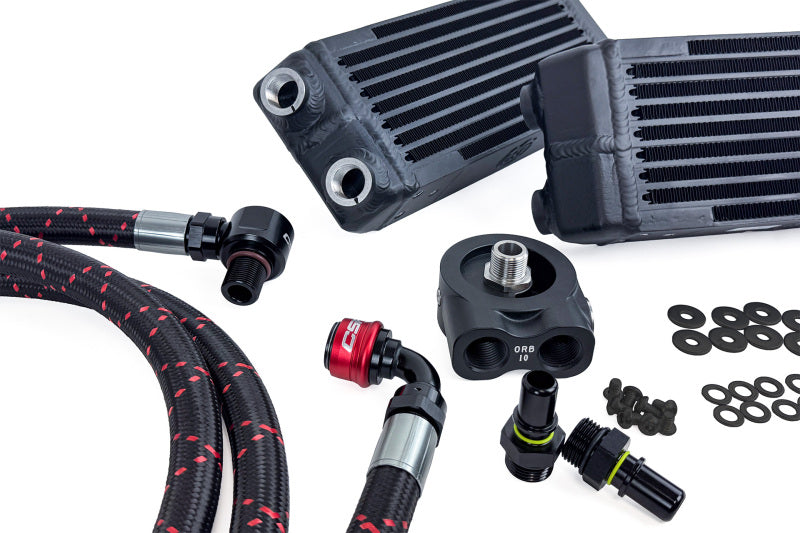

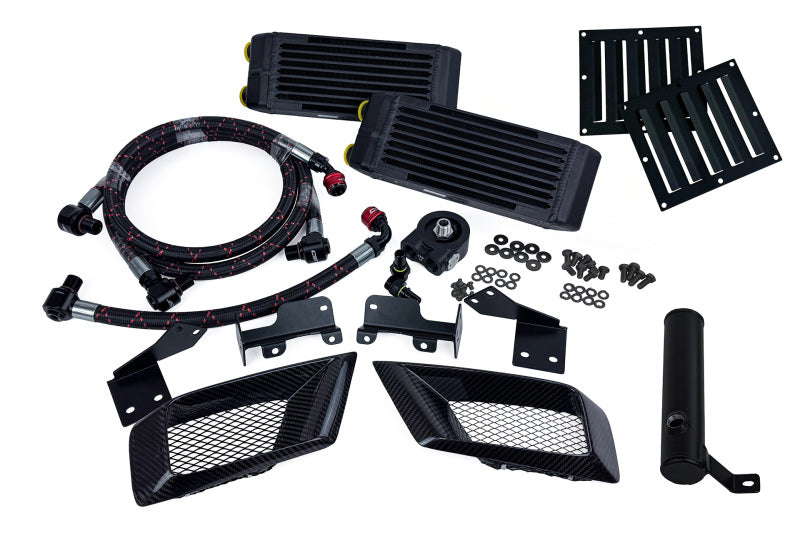

Included Components

• 2x High-Performance Dual-Pass Oil Coolers
• 1x CNC Billet Sandwich Plate with Thermostat

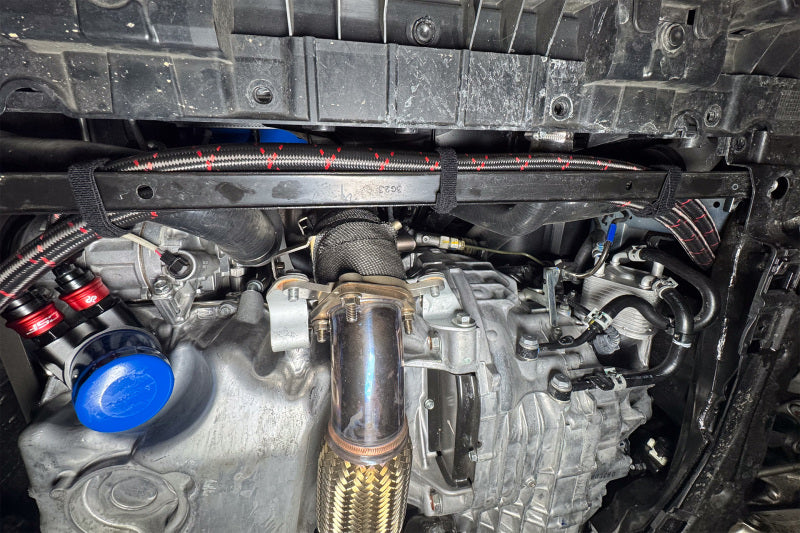

• 1x Set Stainless Steel Braided Lines with DYME Quick-Release Fittings
• 1x Pair Carbon Fiber Bumper Vents
• 1x Set Laser-Cut Louvered Fender Liner Vents
• 1x Replacement Washer Fluid Reservoir
• Mounting Brackets & Hardware
• Installation Instructions & Cutout Templates

Product Description

The CSF 8343 is CSF's first complete engine oil cooler kit, built to solve a real problem on the FL5 Civic Type R and DE5 Integra Type S: the K20C1 doesn't come with any factory oil cooler provision, and track testing regularly showed oil temps climbing past 275°F. The kit centers on two dual-pass, bar/plate coolers run in series, paired with motorsport-grade DYME quick-release fittings and a billet thermostatic sandwich plate that keeps oil flowing through the coolers only once it's actually hot.

Getting proper airflow to the coolers required CFD-designed carbon fiber bumper vents and louvered fender liner vents, since the factory bumper sides don't flow much air on their own - testing with R&D partners and Honda Racing Corporation USA showed oil temperature reductions in the 9-17°F range depending on conditions. It's a serious track-day upgrade rather than a bolt-on part, since installation involves cutting and trimming the front bumper and fender liners, so it's best suited for owners planning dedicated track use who want their FL5 or DE5 to hold up under sustained heat.
