CSF 3328 All-Aluminum Radiator for 2004-2015 Nissan Titan/Armada/Infiniti QX56

Vehicle Fitment

• 2004-2015 Nissan Titan (1st Gen; 5.6 L V8; RWD/4WD)
• 2005-2015 Nissan Armada (1st Gen; 5.6 L V8; RWD/4WD)
• 2004-2013 Infiniti QX56 (2nd Gen; 5.6 L V8; RWD/4WD)

Fitment Notes

• Direct OEM-style drop-in--uses factory hoses, shroud, and AC condenser
• May require minor fan shroud trimming on some models (Titan/Armada)
• Not compatible with later-generation trucks or non-5.6 L V8 engines

Features

• 100 % TIG-welded all-aluminum construction with CNC-machined brackets
• Dual-row "B-Tube" core offers 15 % more tube surface area for improved cooling
• Mirror-polished finish--enhanced durability and corrosion resistance
• Pre-installed race-style drain plug and high-performance radiator cap
• Hydrostatically pressure-tested to 1.5x operating pressure
• Lightweight--~25 lb; better than OEM plastic/tank replacements
• 2-year manufacturer warranty covers defects and performance

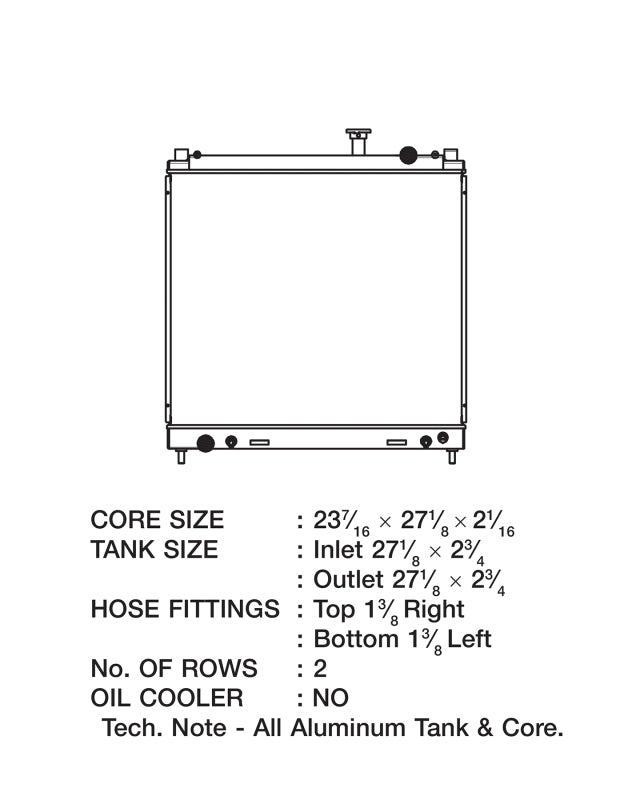

Specifications

• Part Number: 3328
• Core Size: 27.13" x 23.44" x 2.06" (width/height/thickness)
• Inlet/Outlet: 1.375" (factory-size)
• Materials: Full aluminum (core, tanks, brackets)
• Weight: ~25 lb
• Warranty: 2 years

Included Components

• 1x CSF 3328 aluminum radiator
• Pre-installed drain plug
• High-performance radiator cap

Product Description

The CSF 3328 is a high-performance, all-aluminum drop-in radiator designed for the Nissan Titan, Armada, and Infiniti QX56 equipped with the 5.6 L V8 (2004-2015). Featuring a dual-row B-Tube core and TIG-welded construction, it offers up to 15 % greater heat transfer and enhanced cooling consistency--perfect for towing, off-road, or high-load use.

Designed to seamlessly replace OEM units, the 3328 uses factory hoses, shroud, and AC condenser. Minor trimming of the fan shroud may be needed on some Armada/Titan models due to its thicker core, but installation remains straightforward. Hydro-tested to 1.5x its rating and supported by a 2-year warranty, this radiator ensures reliable performance and longevity under heavy-duty conditions.
