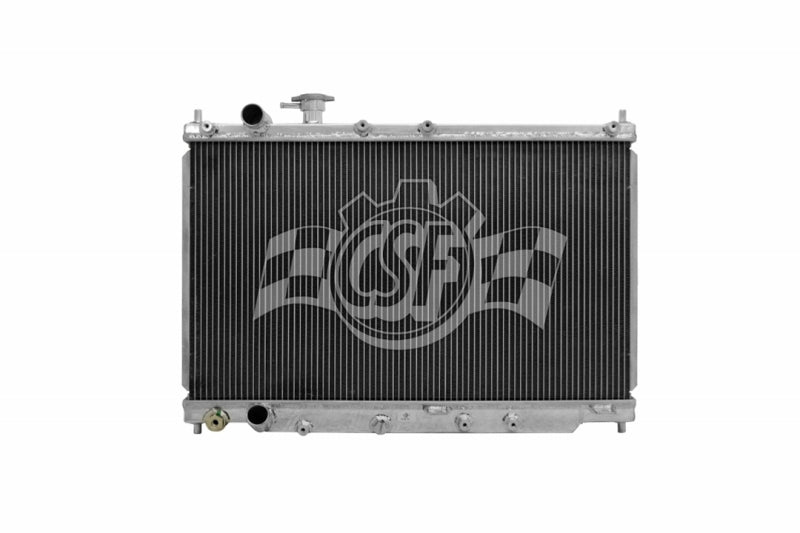

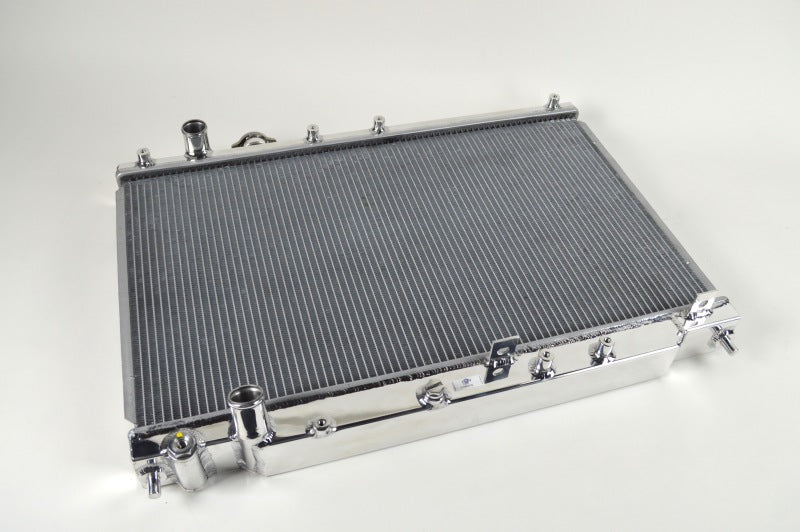

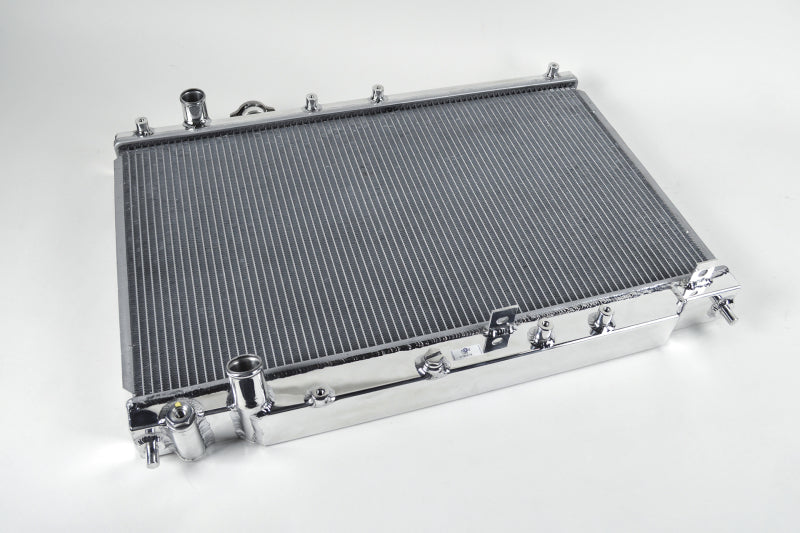

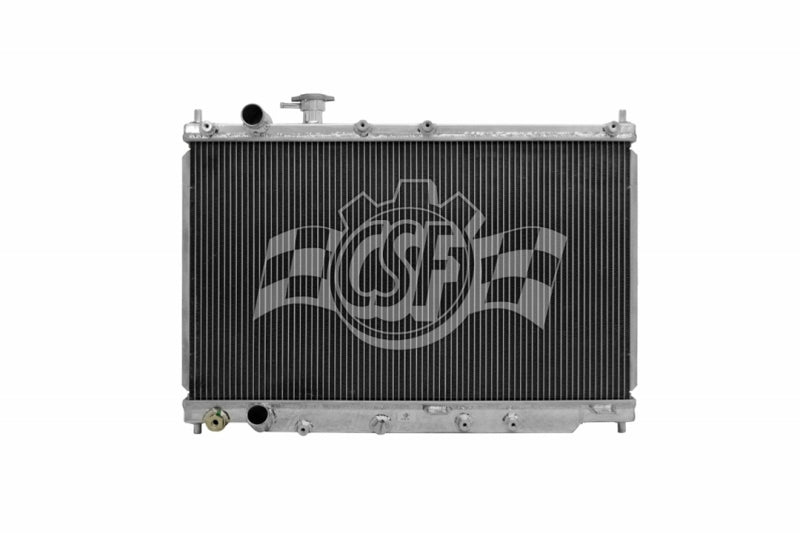

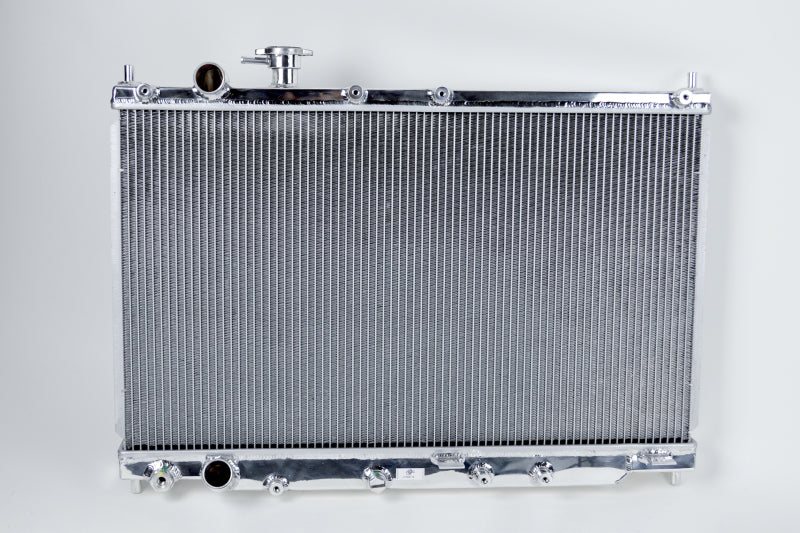

CSF 7009 All-Aluminum 2-Row 42mm Racing Radiator for 00-09 Honda S2000 AP1 AP2

Vehicle Fitment

• 2000-2009 Honda S2000 (AP1 -- F20C, Manual Transmission)
• 2004-2009 Honda S2000 (AP2 -- F22C1, Manual Transmission)

Fitment Notes

• Drop-in fit -- no modifications required
• Automatic transmission: requires separate oil cooler (auto transmission is not North American spec -- manual only)
• Sold individually

Features

• 2-row 42mm dual-pass core -- CSF Race Spec configuration
• Exclusive B-Tube technology -- seam-brazed "B" shaped tubes, 15% more heat transfer surface area vs. standard "O" tubes
• Dual liquid laminar flow -- efficiency of two smaller tubes in the same space
• Ultra-efficient multi-louvered fins -- 6.5mm fin height, wind-tunnel tested

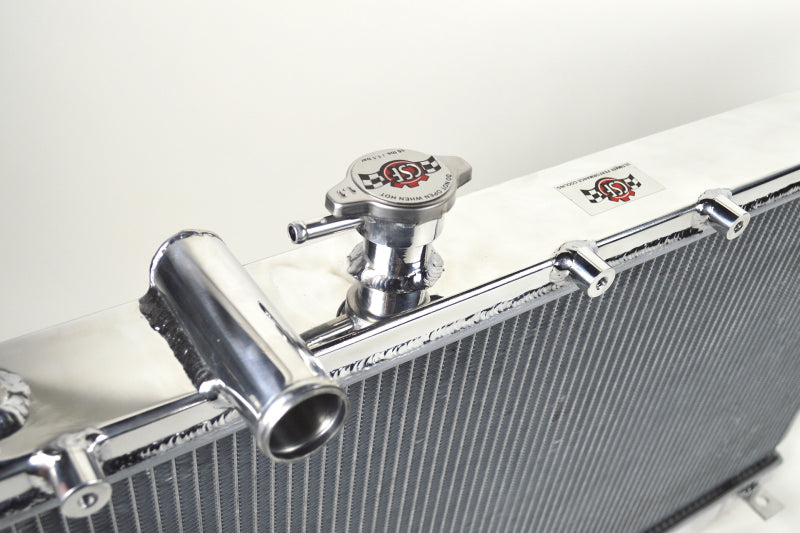

• CNC machined quick-connect inlet/outlet connections
• CNC machined brackets and fittings
• 100% all-aluminum TIG welded construction
• Military-grade special clad aluminum -- tubes, fins, headers, plates, and side brackets (JIS 3003 spec)
• Brazed in controlled atmosphere brazing (CAB) furnace
• Racing-style aluminum drain plug
• Show-Stopper 1-hour hand mirror polish finish
• OE-style radial end tanks -- flat, rounded, fully welded
• Individually leak and pressure tested
• CAD/CAM designed, ISO 9001/9002 certified manufacturing
• Suitable for drag, drift, circuit, off-road, track, rally, and daily use

Specifications

• Core rows: 2-row (dual pass)
• Core thickness: 42mm
• Fin height: 6.5mm
• Width: 22.813 in.
• Height: 17 in.
• Depth: 1.625 in.
• Inlet: Driver side
• Outlet: Passenger side
• Material: Military-grade aluminum (JIS 3003 spec)
• Finish: Show-Stopper mirror polish
• End tank style: OE-style radial (flat, rounded)
• Drain plug: Racing-style aluminum
• Sold as: Single unit

Included Components

• 1x CSF all-aluminum racing radiator

Product Description

The CSF 7009 is a 2-row 42mm all-aluminum racing radiator for the 2000-2009 Honda S2000 AP1 and AP2. Designed as a direct drop-in replacement requiring no modifications to install, it fits the OE mounting points and uses CNC machined quick-connect inlet and outlet connections matched to the factory hose routing. The 2-row 42mm dual-pass core is built around CSF's proprietary B-Tube technology -- seam-brazed "B" shaped aluminum tubes that increase heat transfer surface area approximately 15% over standard "O" shaped welded tubes, producing dual liquid laminar flow and significantly improved thermal efficiency in the same core footprint.

Ultra-efficient multi-louvered 6.5mm fins are wind-tunnel tested for each application to maximize airflow and heat rejection. All aluminum is military-grade special clad material (JIS 3003 spec minimum), TIG welded and brazed in a controlled atmosphere brazing (CAB) furnace for structural integrity. OE-style radial end tanks are flat, rounded, and fully welded for a clean, race-ready appearance with CSF's 1-hour hand mirror polish Show-Stopper finish. Each unit is individually leak and pressure tested before shipping. ISO 9001/9002 certified.
