COMP Cams 7826-16 High Energy Pushrods 5/16in 6.248in for Ford 302 5.0L 1985-Up

Vehicle Fitment

• 1985-1995 Ford Mustang GT / LX / Cobra (5.0L / 302 c.i. with OE hydraulic roller camshaft)
• 1985-2001 Ford F-150 (5.0L / 302 c.i. with OE hydraulic roller camshaft)
• 1985-1994 Ford Thunderbird (5.0L / 302 c.i. with OE hydraulic roller camshaft)
• 1985-2001 Ford Explorer (5.0L / 302 c.i. with OE hydraulic roller camshaft)
• Any Ford 302 / 5.0L application using the 1985-and-later hydraulic roller lifter block (taller lifter bosses) with a factory or aftermarket hydraulic roller camshaft

Fitment Notes

• Correct length for 1985-and-later Ford 302 / 5.0L blocks ONLY - these blocks have taller lifter bosses to accommodate the factory hydraulic roller lifters, requiring a longer pushrod (6.248 in.) than the pre-1985 302 blocks
• NOT compatible with 1969-1984 Ford 302 flat tappet blocks - those applications require a shorter pushrod (approximately 6.900 in. is incorrect; pre-roller 302 pushrods are shorter)
• NOT compatible with Ford 351 Windsor - the 351W uses a significantly longer pushrod due to its taller deck height
• Requires screw-in rocker studs and guideplates - these pushrods are guideplate compatible and heat treated for use with guideplates
• Compatible with COMP Cams High Energy and Magnum rocker arms; also mates with factory-style rocker arms
• Sold as a set of 16 - complete set for a V8 engine (8 intake + 8 exhaust)

Features

• High Energy series - meets or exceeds all OEM pushrod specifications for the 1985+ Ford 302 hydraulic roller application
• Heat-treated steel construction - resists bending, wear, and tip damage under high-RPM and high-spring-pressure conditions
• Oil-through design - hollow tube with welded ball ends allows oil to flow through the pushrod to lubricate the rocker arm tip and fulcrum
• Guideplate compatible - heat treatment provides the surface hardness needed for use with pushrod guideplates without accelerated wear
• 5/16 in. diameter / .080 in. wall thickness - matches factory Ford 302 hydraulic roller pushrod dimensions exactly
• Mates perfectly with COMP Cams High Energy and Magnum rocker arms for a fully matched valvetrain upgrade
• Affordable, durable solution for street rod, RV, daily driver, and mild performance rebuilds

Specifications

• Part Number: 7826-16
• Series: High Energy
• Overall Length: 6.248 in.
• Diameter: 5/16 in. (0.313 in.)
• Wall Thickness: .080 in.
• Material: Heat-Treated Steel
• Tip Style (Both Ends): Oil-Through Welded Ball
• Guideplate Compatible: Yes
• Oiling: Yes (oil-through construction)
• One-Piece Construction: Yes
• Engine Family: Ford Small Block 302 / 5.0L (1985-and-later hydraulic roller block)
• Quantity: Set of 16

Included Components

• 16x COMP Cams High Energy Oil-Through Pushrods (6.248 in.)

Product Description

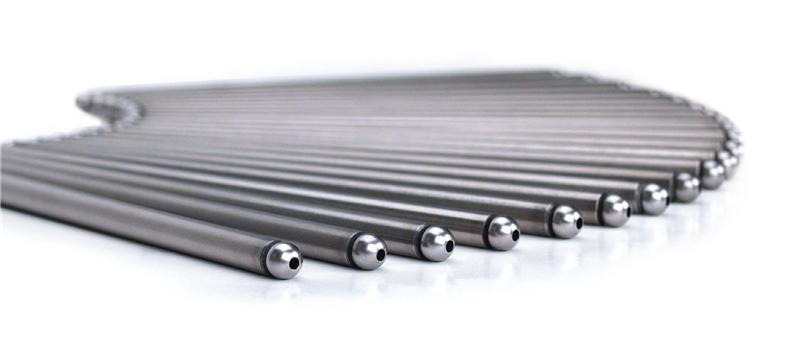

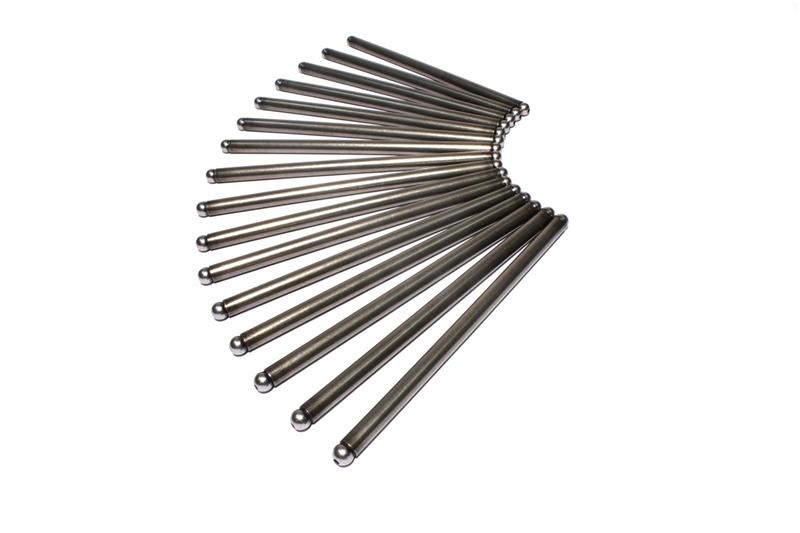

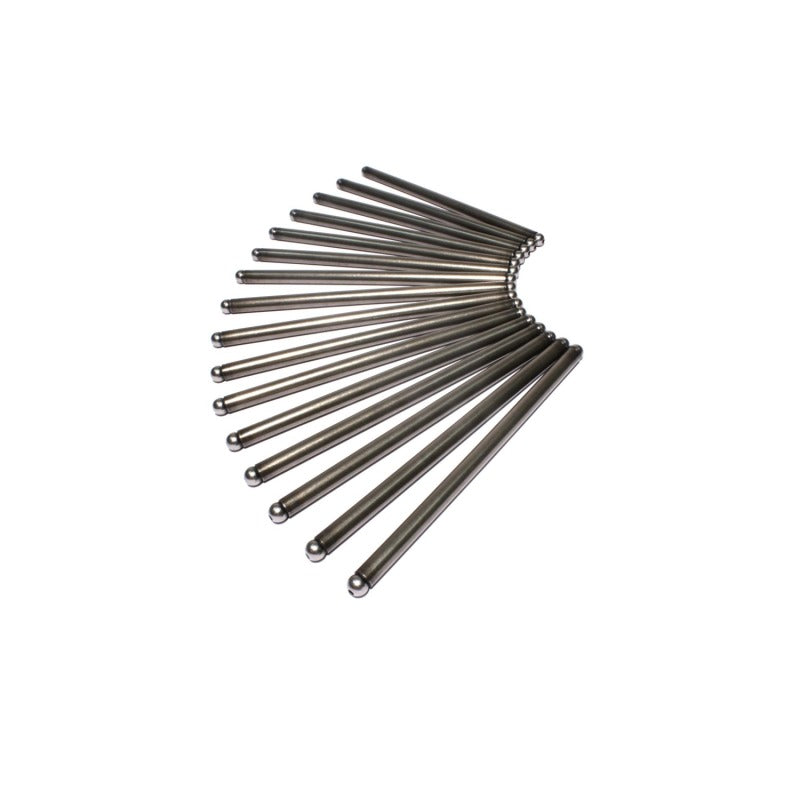

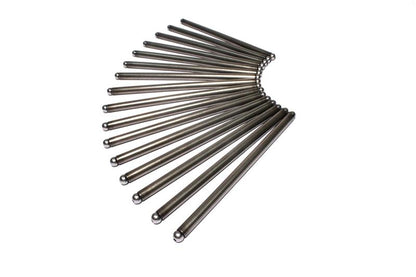

The COMP Cams 7826-16 is a set of 16 High Energy pushrods engineered specifically for the 1985-and-later Ford 302 / 5.0L V8 equipped with the factory OE hydraulic roller camshaft. When Ford introduced the hydraulic roller valvetrain in the 1985 model year 302, they redesigned the block with taller lifter bosses to accommodate the roller lifters - this change raised the lifter position and required a longer pushrod than the pre-1985 flat tappet 302. The 7826-16 is dimensioned precisely for this application at 6.248 in. length and 5/16 in. diameter, making it the correct drop-in replacement or upgrade for any 1985+ 302 hydraulic roller build.

Constructed from heat-treated steel with an oil-through welded ball design at both ends, these pushrods are guideplate compatible, dimensionally correct for stock and mild performance applications, and mate directly with COMP Cams High Energy and Magnum rocker arms. They are an ideal choice for engine rebuilds, daily drivers, street rods, and RVs running the Fox Body Mustang, F-150, Explorer, Thunderbird, or any other 1985-and-later Ford 302 / 5.0L platform. Sold as a complete set of 16.
