Cometic Gasket

Quantity Decrease quantity for Cometic C14144-036 MLX Head Gasket for 2020-2021 Toyota GR Supra (A90) B58/B58H Increase quantity for Cometic C14144-036 MLX Head Gasket for 2020-2021 Toyota GR Supra (A90) B58/B58H

Add to cart





Product Specification:

SKU:CGSC14144-036

MPN: C14144-036

UPC: 191070559373

Weight: 1.1 lb

Inventory: 6

Type: Head Gaskets

Description

Vehicle Fitment

• 2020-2021 Toyota GR Supra (A90) - B58B30C, B58B30O1, B58H 3.0L I6

Fitment Notes

• Compatible with B58B30C, B58B30O1, and B58H engine variants only.
• Not compatible with other B58 engine variants.
• Designed for RWD configurations; not suitable for AWD setups.

Features

• Material: Multi-Layer Xtreme (MLX) for enhanced sealing performance.
• Compressed Thickness: 0.036 inches (0.914 mm) for optimal combustion chamber sealing.
• Bore Size: 83 mm, matching OEM specifications for precise fitment.
• Number of Layers: 3, providing superior durability and resistance to combustion pressures.
• Embossed layers create a micro-seal, preventing fluid leaks between the head and block surfaces.
• High-temperature polymer coating enhances fluid sealing and gasket longevity.
• Manufactured to order, ensuring fresh production and quality control.
• Ideal for performance applications requiring increased cylinder pressure tolerance.

Specifications

• Material: Multi-Layer Xtreme (MLX)
• Compressed Thickness: 0.036 inches (0.914 mm)
• Bore Size: 83 mm
• Number of Layers: 3
• Orientation: Symmetrical (no top or bottom orientation required)
• Position: Cylinder head gasket (upper engine assembly)

Included Components

• 1x Cometic C14144-036 MLX Cylinder Head Gasket

Product Description

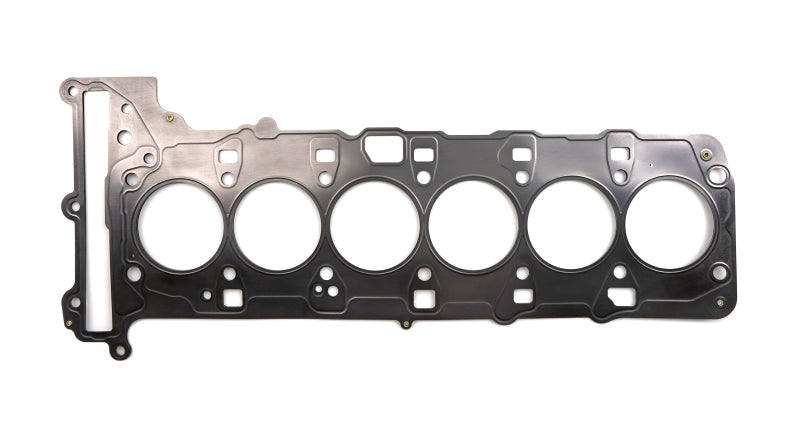

The Cometic C14144-036 MLX Cylinder Head Gasket is engineered for high-performance applications in the Toyota GR Supra (A90) equipped with the B58B30C, B58B30O1, or B58H 3.0L I6 engine. With a compressed thickness of 0.036 inches and an 83 mm bore size, this gasket ensures a precise fit and optimal sealing under high-pressure conditions. The three-layer MLX construction offers superior durability and resistance to combustion pressures, making it ideal for both street and track use.

Designed to withstand the rigors of performance driving, the MLX material incorporates a high-temperature polymer coating and embossed layers that create a micro-seal, preventing fluid leaks between the cylinder head and engine block. This gasket is manufactured to order, ensuring fresh production and quality control. Please note that this gasket is not compatible with other B58 engine variants and is designed for RWD configurations only.
