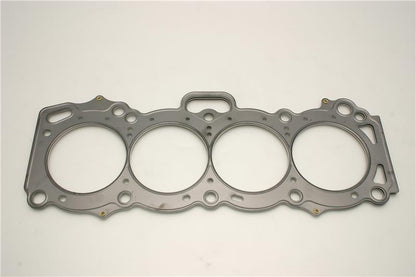

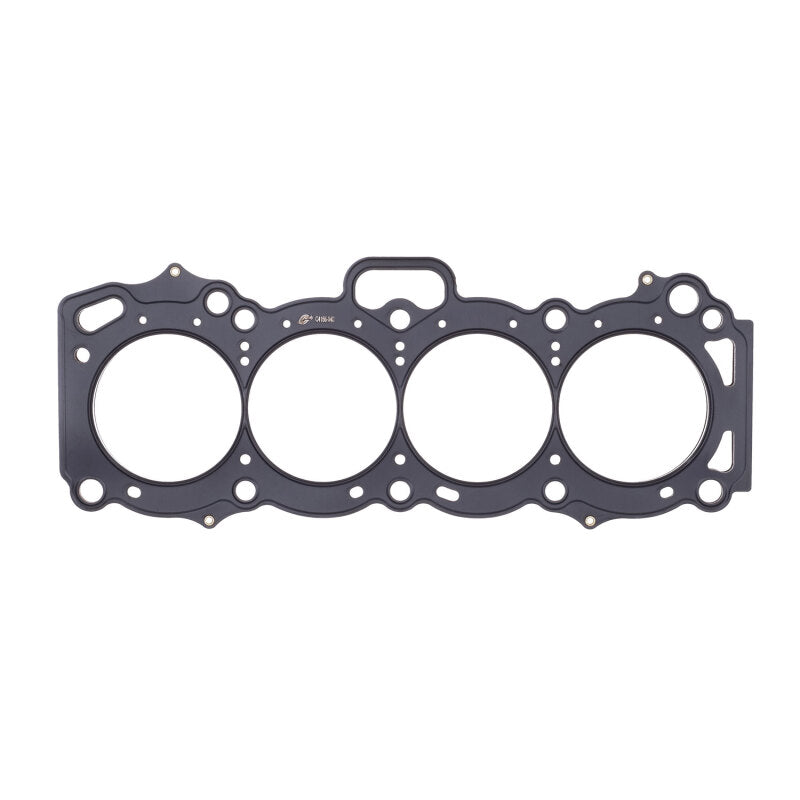

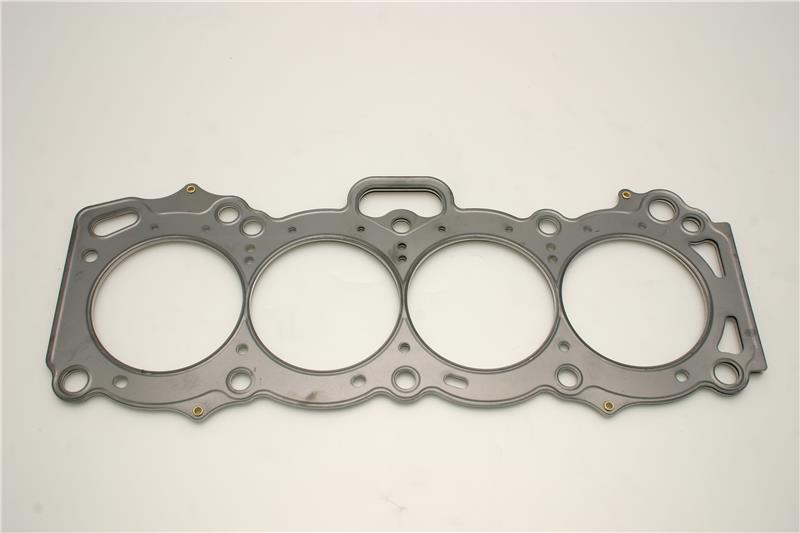

Cometic C4166-060 MLS Head Gasket for 1985-1989 Toyota Corolla AE86/MR2 4A-GE

Vehicle Fitment

• 1985-1989 Toyota Corolla AE86 (4A-GE 1.6L I4, RWD)
• 1985-1989 Toyota MR2 (4A-GE 1.6L I4, RWD)

Features

• Material: Multi-Layer Steel (MLS)
• Compressed Thickness: 0.060"
• Bore Size: 83mm
• Designed for high-output engines
• Ideal for aluminum-to-aluminum or aluminum-to-cast iron interfaces
• Embossed layers for enhanced sealing
• Viton-coated outer layers for heat resistance up to 482°F (250°C)
• Eliminates the need for additional sealants

Specifications

• Compressed Thickness: 0.060"
• Bore Size: 83mm
• Material: Multi-Layer Steel
• Outer Layers: Viton-coated stainless steel
• Compatibility: Toyota 4A-GE engines (1985-1989)
• Drivetrain: Rear-Wheel Drive (RWD)

Included Components

• 1x Cometic C4166-060 MLS Head Gasket

Product Description

The Cometic Gasket C4166-060 is a high-performance MLS head gasket designed specifically for the 1985-1989 Toyota Corolla AE86 and MR2 equipped with the 4A-GE 1.6L inline-four engine. With a bore size of 83mm and a compressed thickness of 0.060", this gasket is ideal for high-output applications requiring superior sealing capabilities.

Constructed from multiple layers of stainless steel, the C4166-060 offers enhanced strength and resistance to corrosion. The outer layers are coated with Viton, a heat-resistant elastomer capable of withstanding temperatures up to 482°F (250°C), ensuring reliable performance under extreme conditions. The gasket's embossed design provides a secure seal, eliminating the need for additional sealants.

Whether you're rebuilding your engine or upgrading for performance, the Cometic C4166-060 MLS head gasket delivers the durability and sealing efficiency necessary for optimal engine performance.
