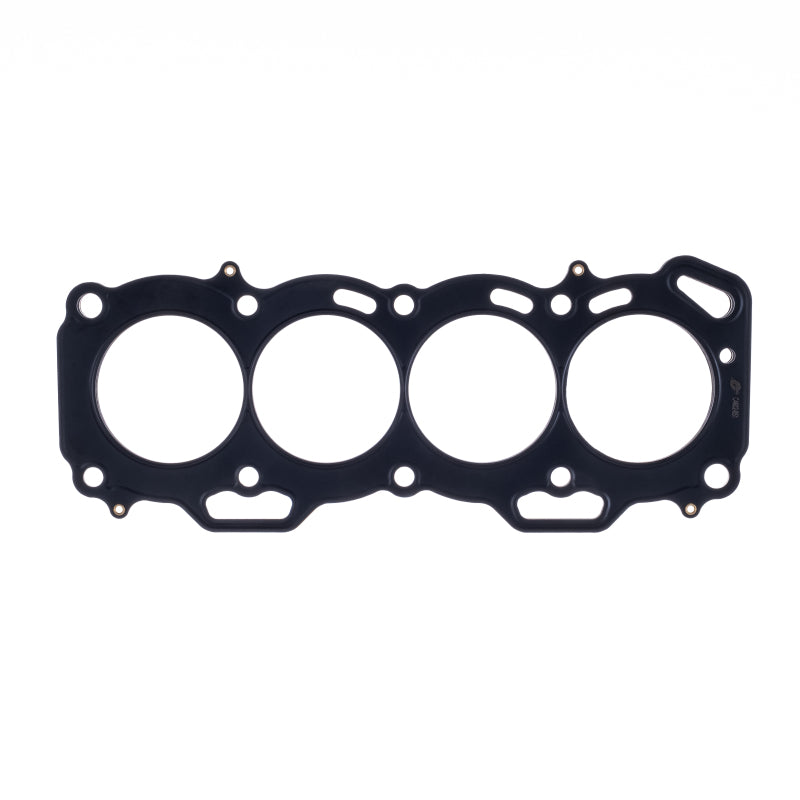

Cometic C4602-051 75mm .051 MLS Head Gasket for Toyota 4E/5E Engines

Vehicle Fitment

• Toyota 4E-FE / 4E-FTE / 5E-FE / 5E-FHE 1.3L-1.5L 4-cyl engines (75 mm bore)

Features

• Multi-Layer Steel (MLS) construction for high-pressure and high-temperature sealing
• 75 mm bore diameter matched to Toyota E-series 4E and 5E engines
• .051" compressed thickness provides proper sealing and quench control
• Viton-coated embossed outer layers for improved heat and fluid resistance
• Designed for harsh sealing environments with reliable rebound and durability

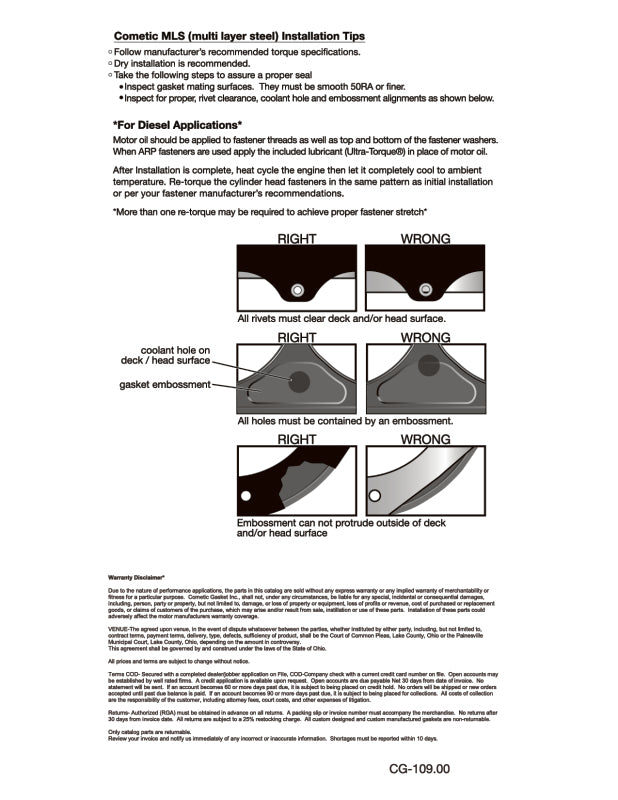

• No additional sealants required when installed per correct procedure
• Ideal for engine rebuilds, maintenance, and performance applications
• MLS design accommodates aluminum head to aluminum block and aluminum to cast iron sealing

Specifications

• Part Number: C4602-051
• Bore Size: 75 mm (3.0")
• Compressed Thickness: .051" (1.30 mm)
• Material: Multi-Layer Steel (MLS) with Viton coated outer layers
• Orientation: None (engine-specific head placement)
• Application: Toyota E-series 4E & 5E 4-cylinder engines

Included Components

• 1x Cometic C4602-051 MLS head gasket

Product Description

The Cometic C4602-051 head gasket is a high-quality MLS (Multi-Layer Steel) gasket engineered for Toyota 4E-FE, 4E-FTE, 5E-FE, and 5E-FHE 1.3L-1.5L 4-cylinder engines with a 75 mm bore size. Its robust MLS construction with Viton-coated embossed layers provides excellent sealing performance under high heat, pressure, and repeated thermal cycling, making it suitable for engine rebuilds, maintenance, or performance enhancements.

With a .051" compressed thickness, this gasket promotes proper quench distance and combustion sealing, helping prevent leaks between the cylinder head and engine block. Designed to work without additional sealants when installed according to engine torque procedures, the C4602-051 is ideal for Toyota engines where reliable head sealing is essential. Compatible applications include multiple E-series engines from Toyota's 4E and 5E families.
