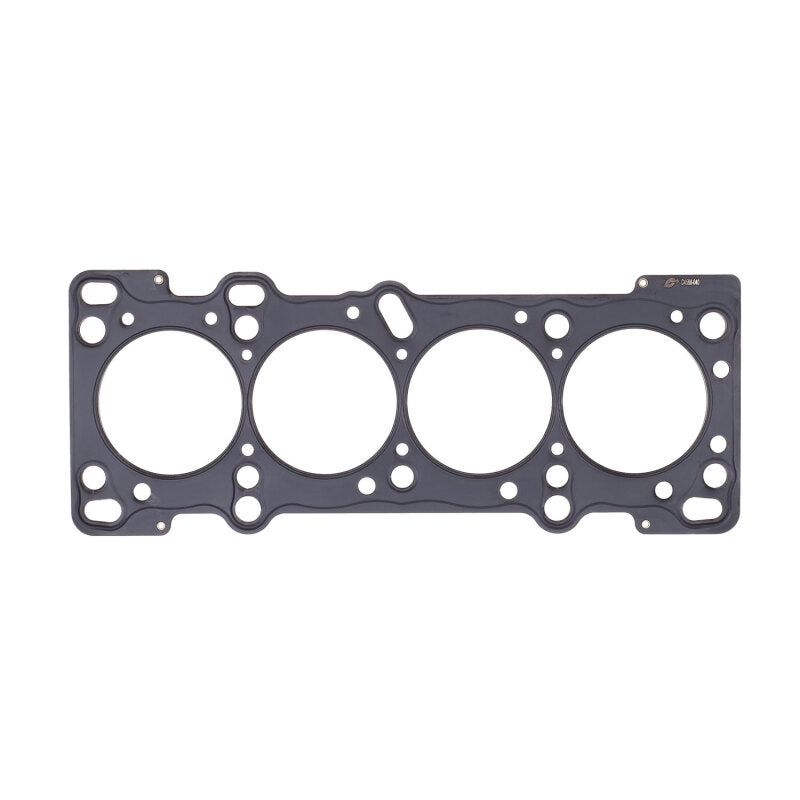

Cometic C4568-060 MLS Head Gasket .060" 84 mm for 1994-2000 Mazda Miata Protege

Vehicle Fitment

• 1994-1997, 1999-2000 Mazda Miata (BP-4W / BP-ZE, 1.8L DOHC)
• 1990-1998 Mazda Protege (BP-4W / BP-ZE, 1.8L DOHC)

Fitment Notes

• Requires the 1.8L DOHC engine (BP-4W / BP-ZE family); not compatible with SOHC or VVT (BP-Z3) versions
• Drivetrain: RWD for Miata; FWD for Protege

Features

• Multi-Layer Steel (MLS) construction for durable, high-pressure sealing
• Outer layers embossed and coated with Viton for improved resistance to heat, oil, and coolant
• Bore size of 84 mm matching OEM block bore for BP-series 1.8L engines
• .060" gasket thickness for additional deck height or rebuilds with material removal
• No additional sealants required when surfaces are prepped correctly
• Suitable for both aluminum head to aluminum block, and aluminum head to cast iron block interfaces
• Good for street performance, boosted or NA, when stronger sealing is needed under higher cylinder pressures
• Engineered to resist corrosion, warping stresses, and thermal cycling

Specifications

• Bore Size: 84.00 mm (≈3.307")
• Compressed Thickness: 0.060 in (≈1.524 mm)
• Material: Multi-Layer Steel (MLS), 3-5 layers with a stainless shim center (outer layers with Viton coating)
• Engine Type: 1.8L DOHC (BP-4W / BP-ZE family)
• Position: Cylinder Head Gasket (between block and cylinder head)
• Orientation: None / symmetrical design - no left- or right-specific side

Included Components

• 1x Cometic C4568-060 MLS Head Gasket

Product Description

The Cometic C4568-060 is a premium Multi-Layer Steel head gasket designed specifically for the Mazda BP-4W / BP-ZE 1.8L DOHC engines used in the Miata (1994-1997, 1999-2000) and Protege (1990-1998). With an increased compressed thickness of **0.060"** and a bore of **84 mm**, this gasket is ideal for rebuilds where extra deck height spacing is required due to machining or head-surface modifications. The outer Viton coatings provide excellent resistance to coolant, oil, and combustion exposure under high temperature and pressure.

This gasket is perfect for builds that push the stock limits, such as mild forced induction, high compression, or aggressive tuning, where sealing reliability is critical. Before purchasing, ensure your engine is the DOHC 1.8L BP-series and that the head and block mating surfaces are flat, clean, and within spec. Torque using the factory or upgraded hardware sequence. Fitment confirmed through 2000; **2025 unconfirmed** for later BP-series variants.
