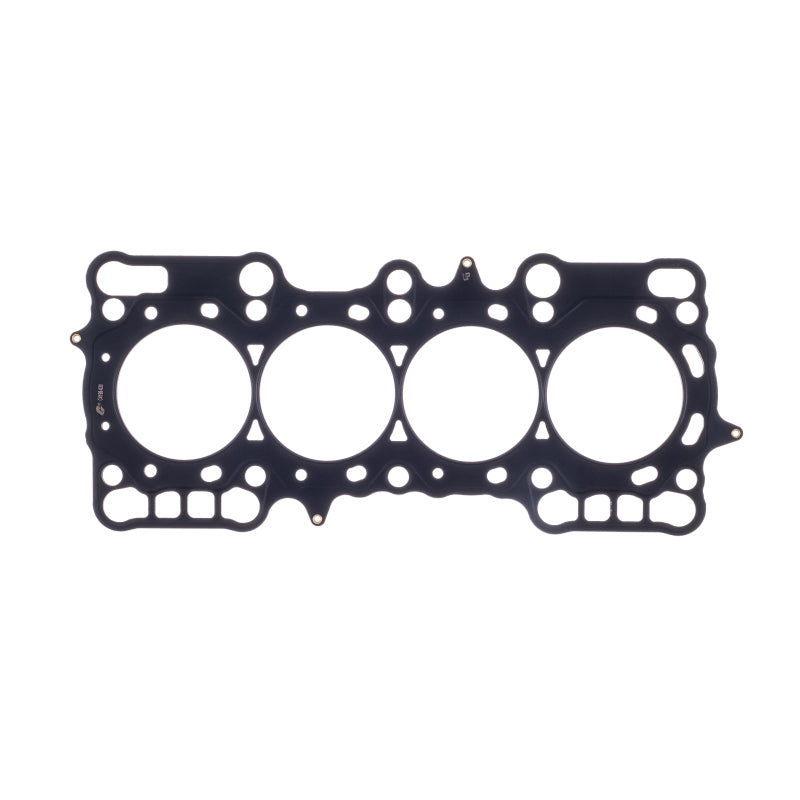

Cometic C4198-040 .040" MLS Cylinder Head Gasket 88mm for 93-96 Honda Prelude VT

Vehicle Fitment

• 1993-1996 Honda Prelude VTEC (BB1, H22A1 2.2L DOHC VTEC I4, FWD)
• 1993-1996 Honda Prelude VTEC (H22A2 2.2L DOHC VTEC I4, FWD)

Fitment Notes

• Single gasket - no left/right orientation; one gasket required per engine (inline 4-cylinder)
• 88mm bore is the stock bore diameter for the H22A1/H22A2 engine
• Fits H22A1 and H22A2 DOHC VTEC engines only - does not fit the H22A4 (1997-2001 Prelude BB6), which uses a different head gasket (see C4253 series)
• For overbored H22A1/H22A2 applications at 89mm, see the Cometic C4185 series
• Does not fit the non-VTEC H23A1 or F22 series engines

Features

• MLS (Multi-Layer Steel) construction with multiple embossed layers for maximum sealing performance
• 3 layers of stainless steel for strength, rebound capability, and corrosion resistance
• Viton (FKM) rubber-coated outer layers rated to 250°C (482°F) for harsh sealing environments
• PTFE topcoat for improved fret resistance and enhanced cold-seal performance
• Load-controlled embossments conform load distribution across the sealing surface, reducing bore distortion
• No sealants or re-torquing required after installation
• Ideal for the aluminum head-to-aluminum block configuration of the H22A engine
• Suitable for naturally aspirated, turbocharged, supercharged, and nitrous applications
• Made in the USA at Cometic's facility in Concord, Ohio

Specifications

• Part Number: C4198-040
• Material: MLS (Multi-Layer Steel)
• Compressed Thickness: .040" (1.0mm)
• Bore Size: 88mm (Round)
• Number of Layers: 3
• Orientation: None (inline 4-cylinder - single gasket per engine)
• Engine Application: Honda H22A1/H22A2 2.2L DOHC VTEC I4
• UPC: 191070027377

Included Components

• 1x Cometic MLS Cylinder Head Gasket

Product Description

The Cometic C4198-040 is a high-performance MLS (Multi-Layer Steel) cylinder head gasket designed for the Honda H22A1 and H22A2 2.2L DOHC VTEC inline 4-cylinder engine found in the 1993-1996 Honda Prelude VTEC (BB1 chassis). With an 88mm stock bore diameter and .040" (1.0mm) compressed thickness across 3 layers of embossed stainless steel, this gasket provides reliable sealing for both stock rebuilds and performance builds. The Viton-coated outer layers with PTFE topcoat deliver exceptional resistance to heat, chemicals, and fret in the H22A's aluminum head-to-aluminum block configuration.

The H22A engine is one of Honda's most celebrated performance powerplants, producing up to 195 horsepower in stock form and serving as a popular platform for turbo, supercharger, and nitrous builds. The C4198-040 delivers the sealing integrity needed for these high-output applications without requiring supplemental sealants or re-torquing after installation. The .040" thickness is a common choice for stock compression rebuilds and light head resurfacing, providing a direct replacement for the factory composite gasket with significantly improved durability and thermal resistance.

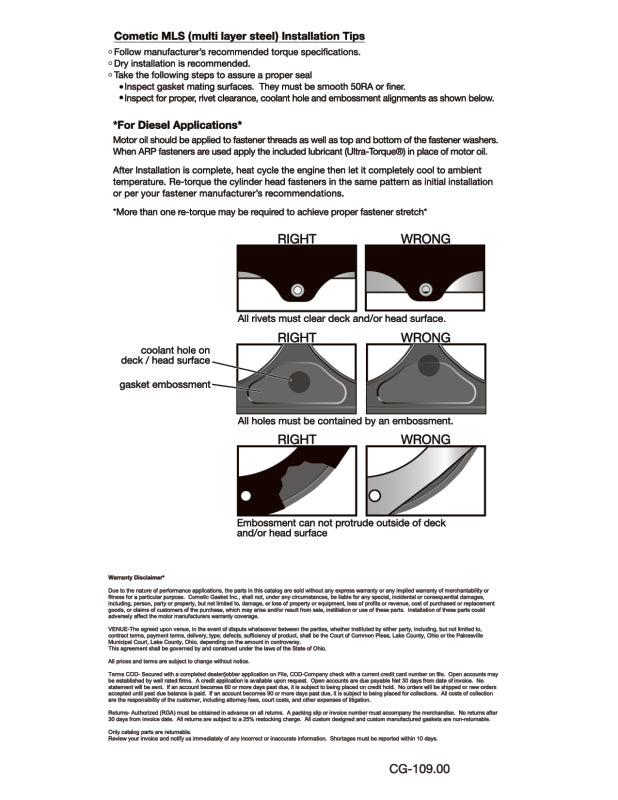

Installation requires clean, debris-free mating surfaces on both the cylinder head and engine block with a recommended surface finish of 50 RA or finer for proper seal. Cometic MLS gaskets go on dry - no supplemental sealants should be applied. This gasket fits the H22A1 and H22A2 variants used in the 1993-1996 Prelude VTEC only. The later H22A4 engine (1997-2001 Prelude BB6) requires the Cometic C4253 series due to different head casting revisions. For builders running 89mm overbore on the H22A1/H22A2, reference the Cometic C4185 series.
