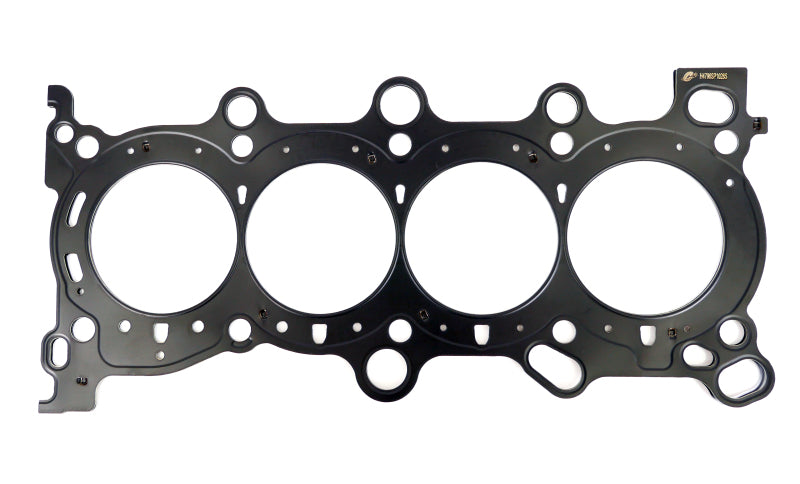

Cometic C14014-028 HP Head Gasket 87mm .028 for Honda K20C1/K20C4 Civic Type R

Vehicle Fitment

• 2017-2021 Honda Civic Type R (FK8) - K20C1 2.0L Turbocharged I4
• 2018-2020 Honda Accord 2.0T - K20C4 2.0L Turbocharged I4
• 2019-2021 Acura RDX - K20C4 2.0L Turbocharged I4

Fitment Notes

• Designed specifically for Honda K20C1 and K20C4 turbocharged 2.0L inline 4-cylinder engines
• 87mm bore size - verify bore size matches your application before ordering (for 88mm bore, see Cometic C14021-028)
• Includes 0.004 in. Head Power Ring Shim
• No sealants required - gasket seals via clamping force alone
• For thicker 0.042 in. version, see Cometic C14014-042
• OEM Reference: 12251-RPY-G02
• Made to order - allow 2-3 weeks production time plus shipping

Features

• HP (High Performance) multi-layer construction provides maximum sealing performance for high-output turbocharged engines
• 4-layer design with embossed outer layers featuring AMP (Advanced Multi-Polymer Coating) for superior sealing in harsh environments
• Multiple layers of stainless steel deliver exceptional strength and rebound characteristics under extreme cylinder pressures
• Coated outer layers create a corrosive-resistant seal that withstands the demands of forced induction applications
• Center shim layer is uncoated stainless steel, allowing precise thickness control
• Requires less clamp load than conventional gaskets, creating less bore distortion for improved ring seal
• Conforms load distribution evenly across the entire sealing surface
• No sealants required - clean, reliable installation with clamping force alone
• Ideal for both stock rebuilds and high-performance applications with increased boost and cylinder pressures
• Made in the USA by Cometic Gasket

Specifications

• Part Number: C14014-028
• UPC: 191070571863
• Material: HP (High Performance Multi-Layer)
• Compressed Thickness: 0.028 in.
• Bore Shape: Round
• Bore Size: 87mm
• Number of Layers: 4
• Orientation: None
• Head Power Ring Shim: 0.004 in.
• Engine Application: Honda K20C1 / K20C4
• OEM Reference: 12251-RPY-G02
• Sealant Required: No
• Thicker Version: C14014-042 (0.042 in.)
• 88mm Bore Version: C14021-028
• Quantity: Sold Individually

Included Components

• 1x Cometic HP Multi-Layer Cylinder Head Gasket (C14014-028)
• 1x 0.004 in. Head Power Ring Shim

Product Description

The Cometic C14014-028 HP Cylinder Head Gasket is a precision-engineered multi-layer sealing solution designed for Honda K20C1 and K20C4 turbocharged 2.0L inline 4-cylinder engines found in the 2017-2021 Honda Civic Type R (FK8), 2018-2020 Honda Accord 2.0T, and 2019-2021 Acura RDX. Featuring an 87mm bore and 0.028 in. compressed thickness, this 4-layer gasket provides maximum sealing performance for high-output turbocharged applications where extreme cylinder pressures and thermal loads demand more than a conventional gasket can deliver. It is ideal for both stock rebuilds and heavily modified builds running increased boost levels.

The HP construction features embossed outer layers with Cometic's proprietary AMP (Advanced Multi-Polymer Coating) that meets the demands of harsh sealing environments, extreme load conditions, and varying surface finishes. The center shim layer is an uncoated stainless steel layer that can be precisely controlled for thickness accuracy. Multiple layers of stainless steel provide exceptional strength and rebound characteristics, allowing the gasket to maintain a reliable seal through repeated thermal cycles and sustained high-RPM operation. The coated outer layers create a corrosive-resistant barrier that prevents coolant and combustion gas leakage even under the most demanding track conditions.

A key advantage of the HP multi-layer design is that it requires less clamp load than conventional gaskets, which reduces bore distortion and improves ring seal - a critical consideration for turbocharged engines where every bit of compression integrity matters. No sealants are needed; the gasket seals entirely through clamping force for a clean, repeatable installation. A 0.004 in. Head Power Ring Shim is included. Note that this gasket is manufactured to order with a 2-3 week production time. For applications requiring a thicker gasket (0.042 in.), see Cometic C14014-042, and for an 88mm overbore, see Cometic C14021-028. All Cometic products are proudly manufactured in the United States.
