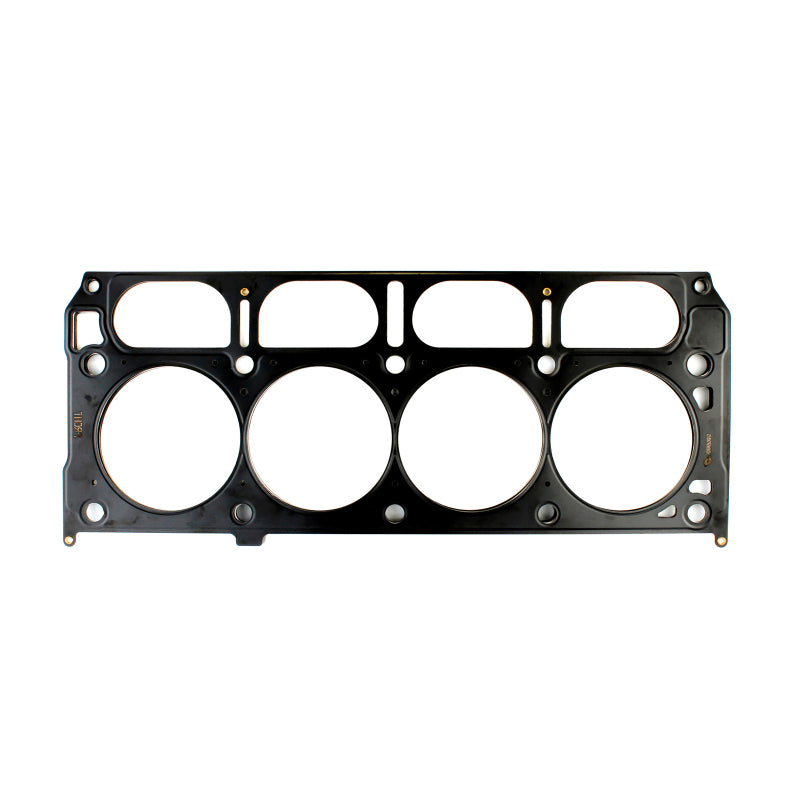

Cometic C15703-052 .052" MLX Head Gasket RHS 4.150" GM Gen-V LT 6-Bolt 1/2 Studs

Vehicle Fitment

• GM Gen-V LT Small Block V8 (LTR) - aftermarket/race cylinder heads with 6-bolt-per-cylinder pattern and 1/2" head studs

Fitment Notes

• Right-hand side (RHS/passenger side) gasket only - order C15704-052 separately for the left-hand side (LHS)
• Designed specifically for aftermarket Gen-V LT race cylinder heads using the 6-bolt-per-cylinder head bolt pattern with 1/2" studs - does not fit OEM production Gen-V LT1/LT4 heads with factory bolt patterns and stud sizes
• 4.150" bore is an overbore over the stock Gen-V LT1/LT4 bore of 4.065"; verify bore size before ordering
• For standard OEM Gen-V LT1/LT4 applications at 4.100" or 4.150" bore, see the Cometic C5038 or C15203 series (no left/right orientation)
• Does not fit Gen-III/IV LS engines (LS1, LS2, LS3, LS6, LS7, LSX) - those use different head gasket families
• The LTR designation refers to the race variant of the Gen-V LT architecture with upgraded fastener provisions

Features

• MLX (Multi-Layer-Xtreme) construction with integrated stopper fold-over layer for superior combustion sealing
• Multiple layers of embossed stainless steel for maximum strength and rebound capability
• Proprietary high-temperature AMP (Advanced Multi-Polymer) coating on outer layers for micro-sealing against head and block surfaces
• Torque-limiting stopper layer prevents yielding of the combustion seal under extreme cylinder pressures
• Engineered for 1/2" head studs - compatible with ARP and other aftermarket race stud kits
• Requires less clamp load than OEM gaskets, reducing bore distortion for improved ring seal and power
• No sealants or re-torquing required after installation
• Corrosion-resistant stainless steel construction for long service life
• Purpose-built for forced-induction, nitrous, and high-compression Gen-V LT race builds
• Made in the USA at Cometic's facility in Concord, Ohio

Specifications

• Part Number: C15703-052
• Material: MLX (Multi-Layer-Xtreme Stainless Steel)
• Compressed Thickness: .052"
• Bore Size: 4.150" (Round)
• Orientation: Right-Hand Side (RHS/Passenger Side)
• Head Bolt Configuration: 6-bolt-per-cylinder, 1/2" studs
• Engine Application: GM LTR Gen-V Small Block V8 (Aftermarket Race Heads)

Included Components

• 1x Cometic MLX Cylinder Head Gasket (Right-Hand Side)

Product Description

The Cometic C15703-052 is a race-grade MLX (Multi-Layer-Xtreme) cylinder head gasket designed for the right-hand side (passenger side) of GM Gen-V LT Small Block V8 engines equipped with aftermarket race cylinder heads using the 6-bolt-per-cylinder head bolt pattern and 1/2" head studs. With a 4.150" bore diameter and .052" compressed thickness, this gasket delivers the highest level of sealing performance available for high-output Gen-V LT builds where extreme cylinder pressures and boost levels demand more than a standard MLS gasket can provide. The MLX design features Cometic's proprietary stopper fold-over layer, which creates a torque-limiting combustion seal that resists yielding - making it essential for supercharged, turbocharged, and nitrous race applications.

The "LTR" designation in Cometic's catalog identifies this gasket as purpose-built for the race variant of the Gen-V LT architecture. Production Gen-V LT1 and LT4 engines use a different head bolt configuration and stud size, which means the C15703 series will not interchange with stock OEM applications. This gasket is designed for builders running aftermarket cylinder heads - such as those from CID, Mast Motorsports, or other race head manufacturers - that utilize the 6-bolt layout with 1/2" stud provisions for maximum clamp load. The 4.150" bore accommodates stroker and large-bore race builds common in drag racing, road racing, and high-performance street applications on the Gen-V LT platform.

Installation requires clean, debris-free mating surfaces with a recommended surface finish of 50 RA or finer for proper gasket seal. Cometic MLX gaskets require no supplemental sealants and do not need re-torquing after initial installation. For a complete head gasket replacement, pair this RHS gasket with the corresponding LHS gasket (C15704-052). For OEM Gen-V LT1/LT4 applications with stock head bolt patterns, reference the Cometic C5038 series (4.100" bore) or C15203 series (4.150" bore) instead.
