Cometic Gasket

Quantity Decrease quantity for Cometic C5505-060 .060in MLX Head Gasket 4.040in Bore for GM LS Gen3/4 Increase quantity for Cometic C5505-060 .060in MLX Head Gasket 4.040in Bore for GM LS Gen3/4

Sold out





Product Specification:

SKU:CGSC5505-060

UPC: 191070371975

Weight: 1.3 lb

Type: Head Gaskets

Description

Vehicle Fitment

• GM LS Gen-3/4 Small Block V8 (4.040" bore applications)

Fitment Notes

• Universal performance gasket for LS-series engine builds; not tied to a specific model year or vehicle. Confirm bore size matches your block before ordering

Features

• MLX construction with an integrated "stopper" layer for enhanced combustion chamber sealing
• Improved clamp load around the cylinder without increasing bore distortion
• Built from the same materials as Cometic's MLS gaskets for proven durability
• No sealants or re-torque required after installation
• Suited for high-horsepower, boosted, or nitrous-fed LS builds

Specifications

• Bore: 4.040"
• Compressed Thickness: .060"
• Material: MLX (Multi-Layer-Xtreme)
• Layers: 5

Included Components

• 1x Cylinder Head Gasket

Product Description

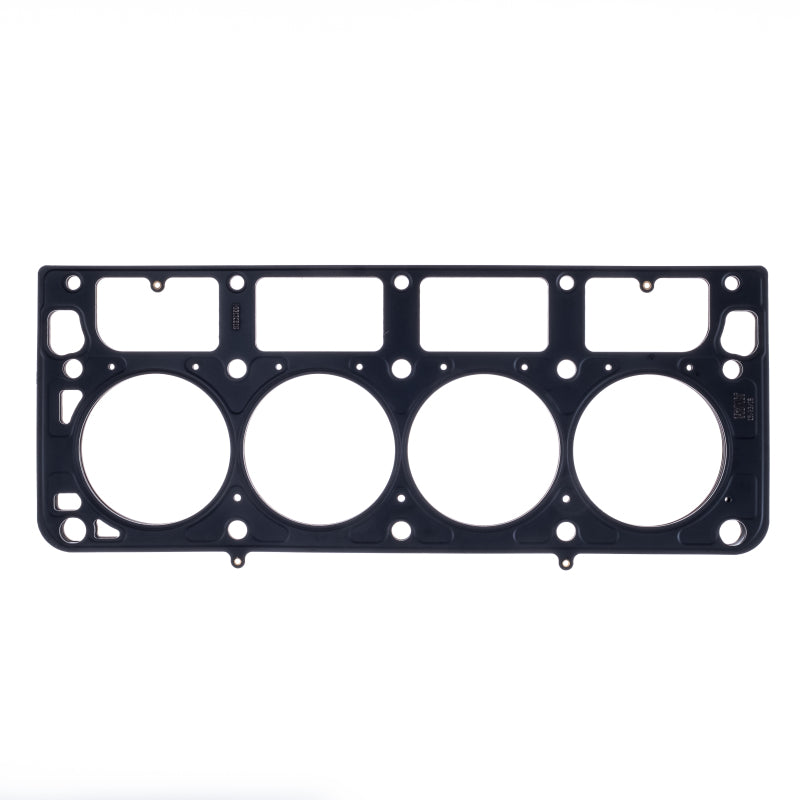

The Cometic C5505-060 is an MLX cylinder head gasket designed for GM LS Gen-3/4 small block V8 builds at a 4.040" bore. Its integrated stopper layer adds extra clamp load around the combustion seal, helping the gasket hold up under the higher cylinder pressures common in boosted or nitrous-assisted builds.

Built from the same proven materials as Cometic's standard MLS line, it installs dry with no sealants or re-torque needed. A strong choice for performance LS engine assembly or rebuilds running this bore size.
