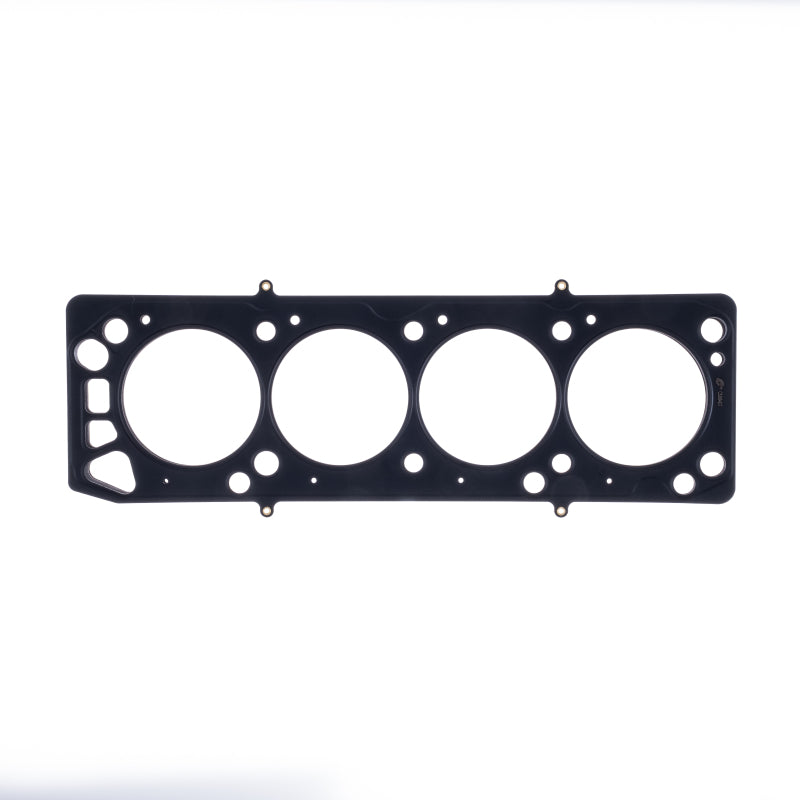

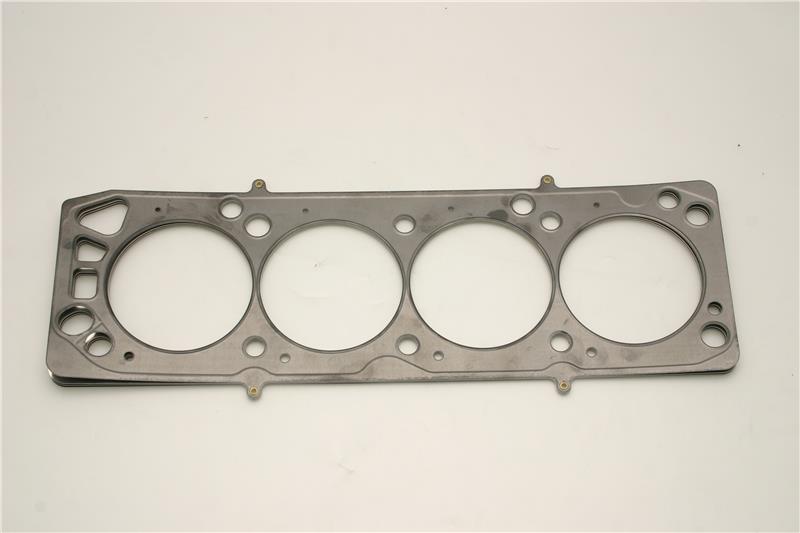

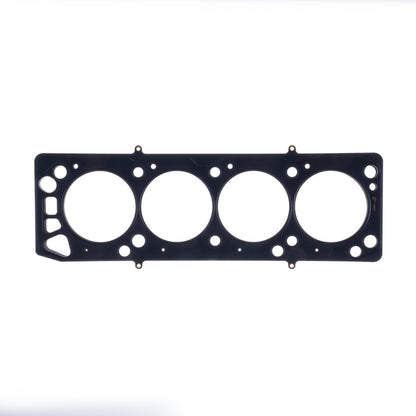

Cometic Gasket C5369-040 MLS Head Gasket for 1986-2001 Ford/Mercury/Merkur 2.3L

Regular price: $83.95
Regular price: ~~$84.41~~
Sale price: $83.95

Shipping calculated at checkout.

In Stock: 6

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:CGSC5369-040

MPN: C5369-040

UPC: 191070011499

Weight: 0.9 lb

Inventory: 6

Type: Head Gaskets

Vehicle Fitment

1986-2001 Ford Ranger (All Trims, 2.3L SOHC, 4WD/RWD)
1986-1987 Ford Aerostar (All Trims, 2.3L SOHC, 4WD/RWD)
1977-1982 Ford Courier (All Trims, 2.3L SOHC, 4WD/RWD)
1988-1990 Mercury Tracer (All Trims, 2.3L SOHC, FWD/RWD)
1985-1989 Merkur XR4Ti (All Trims, 2.3L SOHC, FWD/RWD)
1994-2001 Mazda B2300 (All Trims, 2.3L SOHC, 4WD/RWD)

Fitment Notes

Compatible with SOHC 2.3L engines only.
Not suitable for DOHC configurations.
Designed to fit both Ford, Mercury, Merkur, and Mazda platforms using the 2.3L SOHC engine.

Features

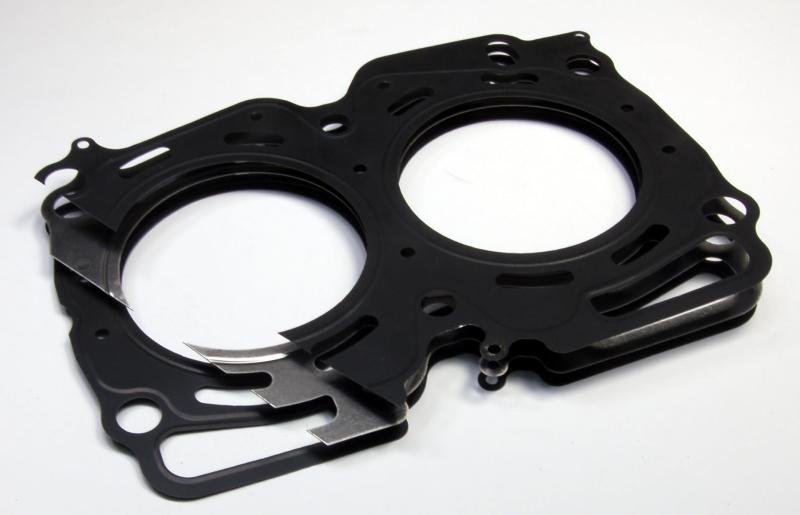

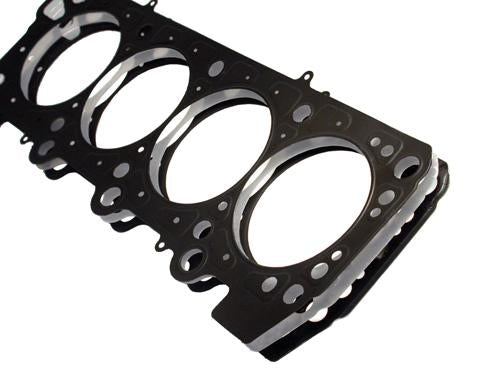

Multi-Layer Steel (MLS) construction for enhanced sealing performance.
Outer layers coated with Viton for superior heat resistance up to 482°F (250°C).
Embossed design to ensure even clamp load and reduced bore distortion.
Ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks.
Requires no sealants, providing a reliable seal without additional materials.
Designed to withstand the shearing forces between dissimilar materials.
Manufactured to meet or exceed strict quality requirements.
Made in the USA, ensuring high manufacturing standards.

Specifications

Bore Size: 3.830 inches (97.3 mm)
Compressed Thickness: 0.040 inches (1.02 mm)
Material: Stainless Steel with Viton coating
Quantity: Sold individually
Position: Upper (Cylinder Head)

Included Components

1x Cometic Gasket C5369-040 MLS Cylinder Head Gasket

Product Description

The Cometic Gasket C5369-040 is a high-performance MLS (Multi-Layer Steel) head gasket designed for 1986-2001 Ford, Mercury, and Merkur 2.3L SOHC engines. With a bore size of 3.830 inches and a compressed thickness of 0.040 inches, this gasket ensures a reliable seal under high-pressure conditions. The MLS construction, featuring multiple layers of stainless steel, provides enhanced strength and resistance to corrosion, making it suitable for both aluminum and cast iron blocks.

The outer layers are coated with Viton, a flouroelastomer rubber material known for its heat resistance up to 482°F (250°C). This coating ensures the gasket can withstand the demands of high-performance engines. The embossed design promotes an even clamp load across the sealing surface, reducing bore distortion and eliminating the need for sealants. Whether you're rebuilding an engine or upgrading for performance, the Cometic C5369-040 head gasket offers durability and reliability.

This gasket is specifically engineered for SOHC 2.3L configurations and is compatible across Ford, Mercury, Merkur, and Mazda platforms. It is not suitable for DOHC engines. Ideal for custom builds, high-performance, and racing applications, the C5369-040 provides long-lasting, leak-free performance for all verified vehicles.
