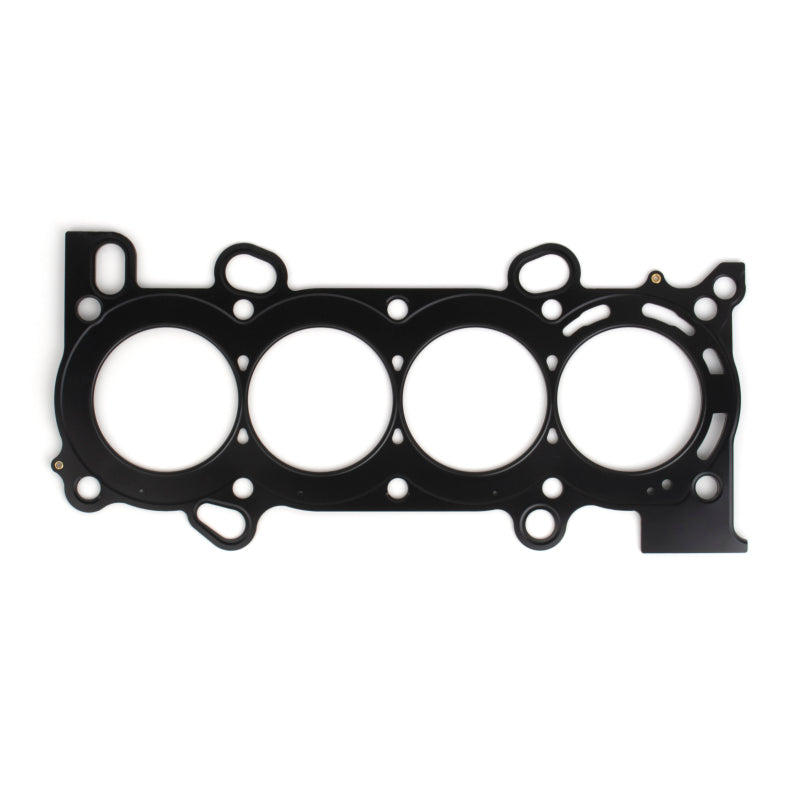

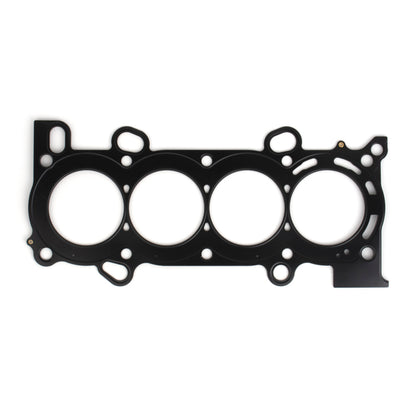

Cometic C4594-051 MLS Head Gasket for Honda/Acura K24 87 mm Bore

Vehicle Fitment

• Honda / Acura K-Series 2.4L - K24Y2, K24Z2, K24Z3, K24Z6, K24Z7
• Acura ILX (2013-2015), Honda Accord (2012), Civic Si (2012-2015), CR-V (2012-2014)

Features

• Multi-Layer Steel (MLS) construction for high clamp strength and durability
• Three-layer stainless steel design offers excellent rebound
• Viton rubber-coated outer layers resist high heat and chemical attack
• Embossed sealing surface helps distribute load evenly
• Requires no sealant or re-torque after installation
• Designed to minimize bore distortion under stress
• Orientation-free design - mounts either way
• Made to order for precision quality

Specifications

• Part Number: C4594-051
• Material: Multi-Layer Steel (MLS)
• Bore Size: 87.00 mm
• Compressed Thickness: 0.051 in (~1.30 mm)
• Number of Layers: 3
• Orientation: None (Symmetrical)

Included Components

• 1x Cylinder Head Gasket (Cometic C4594-051)

Product Description

The **Cometic C4594-051** is a premium MLS (Multi-Layer Steel) head gasket tailored for Honda and Acura K-Series 2.4 L engines - specifically the K24Y2, K24Z2, Z3, Z6, and Z7 variants. With its 87 mm bore and a compressed thickness of 0.051 in, this gasket is engineered to deliver exceptional sealing performance, particularly in rebuilt or high-performance applications.

Built with three stainless-steel layers, the gasket features embossed outer plates coated with Viton rubber. This construction ensures a robust seal under high clamping loads, while resisting heat, oil, and coolant exposure. Its design minimizes distortion and offers great durability across demanding conditions.

The orientation-free layout simplifies installation, and thanks to its MLS construction, it does **not require any sealants or re-torqueing** after installation. Whether you're building a stock-replacement, turbo, or high-output K-Series engine, this gasket provides reliable, high-integrity sealing for optimal engine performance.
