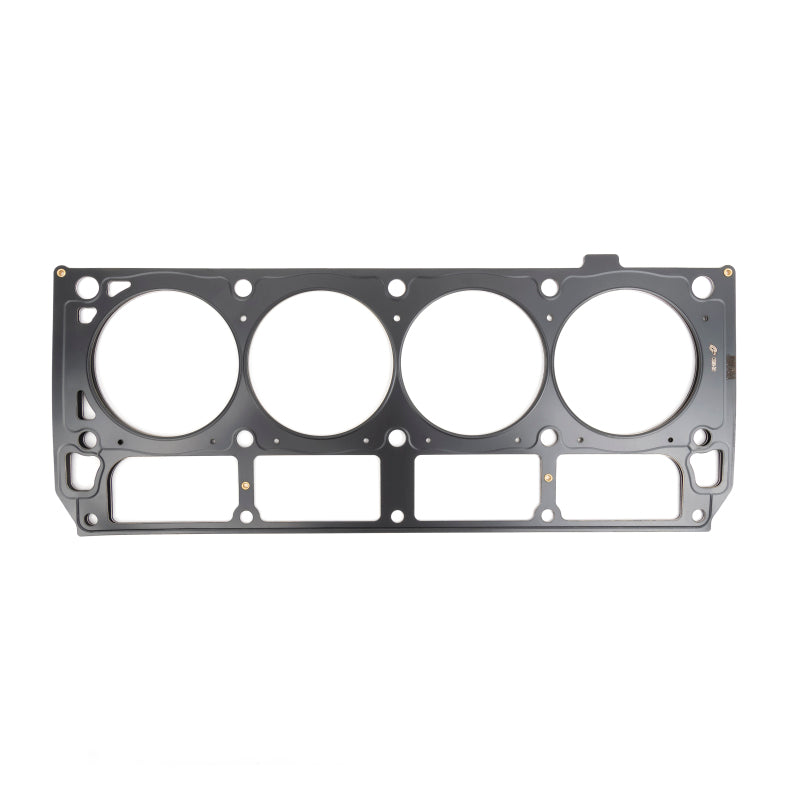

Cometic C5889-051 MLS Head Gasket for 2006-2013 Chevrolet Corvette Z06 7.0L V8

Vehicle Fitment

• 2006-2013 Chevrolet Corvette Z06 (7.0L V8, RWD)
• 2014-2015 Chevrolet Camaro Z/28 (7.0L V8, RWD)

Fitment Notes

• Compatible with LS7 engine applications only.
• Not suitable for LS3, LS9, or other LS-series engines.
• Sold individually; two required per vehicle.

Features

• Multi-Layer Steel (MLS) construction for superior sealing performance.
• Designed for high-output LS7 engines up to 7.0L displacement.
• Outer layers embossed and coated with Viton for enhanced durability.
• Center shim layer made of uncoated stainless steel for strength and resilience.
• Withstands shearing forces between aluminum heads and cast iron blocks.
• Eliminates the need for sealants during installation.
• Ideal for both street performance and racing applications.
• Manufactured in the USA by Cometic Gaskets, a trusted brand in automotive sealing solutions.

Specifications

• Bore Diameter: 4.150 inches (105.410 mm)
• Compressed Thickness: 0.051 inches (1.295 mm)
• Material: Multi-Layer Stainless Steel
• Outer Layer Coating: Viton (heat-resistant to 482°F / 250°C)
• Quantity: Sold individually (two required per vehicle)
• Position: Left and Right sides

Included Components

• 1x Cometic C5889-051 MLS Head Gasket

Product Description

The Cometic C5889-051 MLS head gasket is engineered for high-performance applications, specifically designed for the LS7 engine found in the 2006-2013 Chevrolet Corvette Z06 and the 2014-2015 Chevrolet Camaro Z/28. With a bore diameter of 4.150 inches and a compressed thickness of 0.051 inches, this gasket ensures a precise fit and optimal sealing under high compression and heat conditions.

Constructed from multiple layers of stainless steel, the gasket features embossed outer layers coated with Viton, a heat-resistant material that withstands temperatures up to 482°F (250°C). The center shim layer remains uncoated, providing additional strength and resilience. This MLS design is ideal for applications where traditional gaskets may fail, offering superior sealing performance without the need for sealants.

Designed for both aluminum heads and cast iron blocks, the Cometic C5889-051 MLS head gasket can handle the shearing forces between these materials, ensuring a reliable seal even under extreme conditions. Whether you're building a street performance engine or preparing for track use, this gasket delivers the durability and performance you need.
