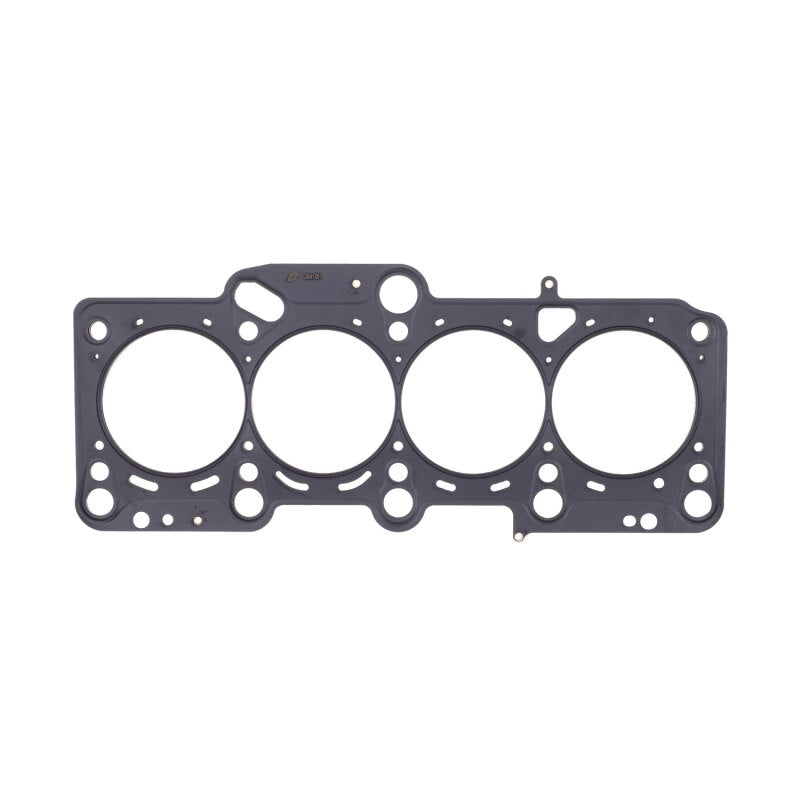

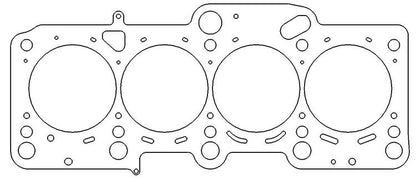

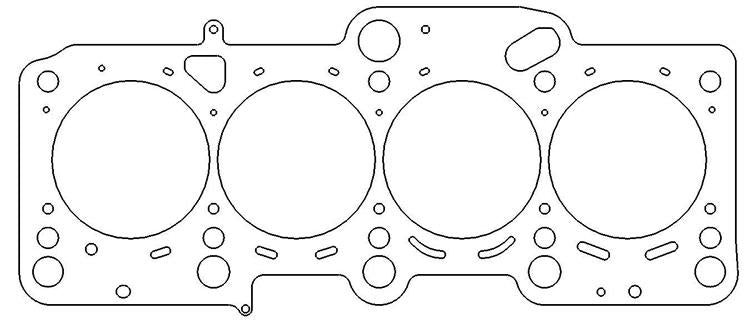

Cometic C4541-051 MLS Head Gasket .051" for 2006-09 VW/Audi 2.0L TFSI EA113

Vehicle Fitment

• 2006-2008 Audi A3 2.0T (EA113 2.0 L Turbo, FWD / Quattro)
• 2007-2009 Audi A4 / A4 Quattro 2.0T EA113
• 2008-2009 Audi TT 2.0T EA113
• 2007-2009 VW Jetta / Golf / GTI 2.0T EA113
• 2007-2009 VW Passat / Eos 2.0T EA113

Features

• Multi-Layer Steel (MLS) construction for high strength and reliable sealing under boost and high combustion pressures :contentReference[oaicite:0]{index=0}
• .051 in (≈1.295 mm) compressed thickness - ideal balance of sealing and combustion chamber clearance :contentReference[oaicite:1]{index=1}
• Bore size 83.5 mm - matches EA113 2.0T cylinder head bore precisely :contentReference[oaicite:2]{index=2}
• Three-layer design: outer embossed layers, center uncoated shim layer for sealing integrity :contentReference[oaicite:3]{index=3}
• Viton coated outer layers for improved resistance to heat, oil, and chemical exposure :contentReference[oaicite:4]{index=4}
• No sealant needed - sealing via proper clamp load and torque sequence :contentReference[oaicite:5]{index=5}
• Compatible with aluminum heads over aluminum or cast iron blocks :contentReference[oaicite:6]{index=6}
• Designed for stock and performance EA113 2.0T applications including turbocharged setups :contentReference[oaicite:7]{index=7}

Specifications

• Part Number: C4541-051 :contentReference[oaicite:8]{index=8}
• Engine: 2.0 L EA113 Turbocharged Inline-4 (VW/Audi) :contentReference[oaicite:9]{index=9}
• Bore Size: 83.5 mm :contentReference[oaicite:10]{index=10}
• Compressed Thickness: .051 in (≈1.295 mm) :contentReference[oaicite:11]{index=11}
• # of layers: 3 MLS steel layers (outer embossed & Viton coated) :contentReference[oaicite:12]{index=12}
• Bore Shape: Round :contentReference[oaicite:13]{index=13}
• Orientation: None required - gasket is non-side specific :contentReference[oaicite:14]{index=14}

Included Components

• 1x Cometic MLS head gasket C4541-051

Product Description

The Cometic C4541-051 is a premium MLS head gasket engineered for the VW/Audi EA113 2.0 L Turbo (commonly found in 2006-2009 Audi & VW 2.0T models). It features a bore diameter of 83.5 mm and a compressed thickness of .051 inches (≈1.295 mm), offering a solid balance between head sealing performance, compression, and combustion chamber clearance. The three-layer stainless steel construction, with Viton-coated outer layers, ensures excellent durability under temperature, charge pressure, and chemical exposure typical of turbocharged engines.

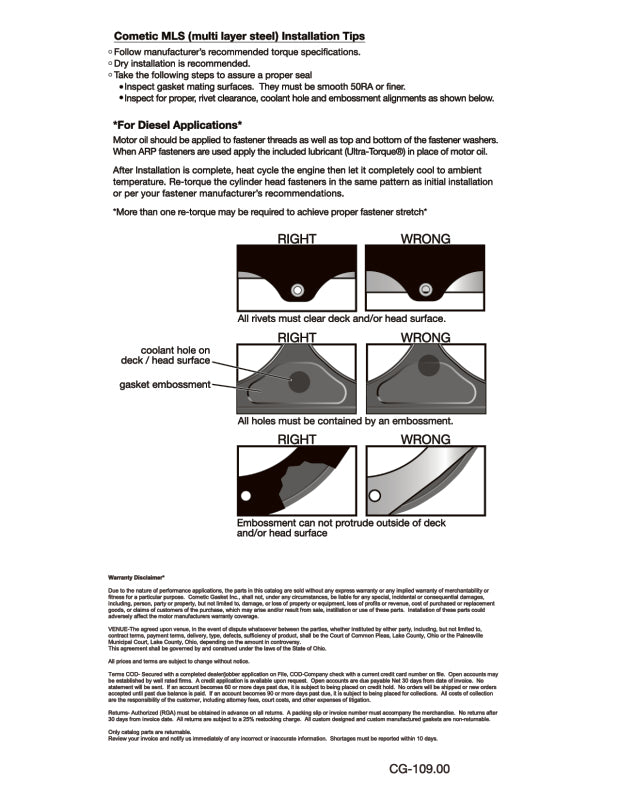

This gasket is ideal for performance rebuilds, proper replacement in stock high-mileage applications, or mild forced induction upgrades in the EA113 platform. It seals without needing additional sealants, but installation requires clean, flat head and block surfaces, proper torque pattern, and specification adherence to prevent leaks. Compatible with aluminum heads over either aluminum or cast iron blocks.

**Fitment confirmed through 2009. 2010 and later coverage unconfirmed at time of listing.**
