Cognito 110-91244 Ball Joint Upper Control Arm Kit for 20-25 GM 2500HD/3500HD

Vehicle Fitment

• 2020-2025 Chevrolet Silverado 2500HD (All Trims, 2WD/4WD)
• 2020-2025 Chevrolet Silverado 3500HD (All Trims, 2WD/4WD)
• 2020-2025 GMC Sierra 2500HD (All Trims, 2WD/4WD)
• 2020-2025 GMC Sierra 3500HD (All Trims, 2WD/4WD)

Fitment Notes

• Fits both 2WD and 4WD models
• Fits all trim levels including WT, Custom, LT, LTZ, High Country, SLE, SLT, AT4, Denali, and all other 2500HD/3500HD trims
• Fits as a stock replacement or in leveled and lifted applications
• Direct replacement - tubular design is a fitment upgrade over factory stamped steel upper control arms
• Does not fit the 2019 and earlier Silverado/Sierra 2500HD/3500HD - those use different Cognito upper control arm kits (110-90910 or 110-91146 for 2011-2019)
• Does not fit the Silverado/Sierra 1500 - different platform
• Does not fit the 2024+ Silverado 2500HD ZR2 or Sierra 2500HD AT4X - those use Cognito 110-91252
• Supersedes previous Cognito part number 110-90802
• No drilling required for installation

Features

• Tubular ball joint upper control arm kit with press-in maintenance-free heavy-duty ball joints
• Modified ball joint angle corrects geometry for stock, leveled, and lifted applications
• Eliminates ball joint travel limitations that cause premature wear in lifted trucks
• Improved allowable droop travel for better ride quality - shocks or limit straps should be the droop limiter, not the upper control arms
• Added caster for improved highway-speed stability and straight-line tracking
• Maintenance-free pivot bushings for long-lasting, grease-free operation
• Tubular steel construction - CNC robot welded for maximum strength and consistency
• Powder coated semi-gloss black for durable corrosion resistance and appearance
• Direct bolt-in installation with no drilling required
• Made in the USA by Cognito Motorsports
• Limited lifetime warranty to the original retail purchaser

Specifications

• Type: Tubular Ball Joint Upper Control Arm Kit (pair)
• Material: Tubular steel, CNC robot welded
• Finish: Powder coated semi-gloss black
• Ball Joint Type: Press-in, maintenance-free, high-angle, heavy-duty
• Pivot Bushings: Maintenance-free
• Fitment Type: Direct replacement
• Supersedes: 110-90802
• UPC: 720843693220
• Warranty: Limited lifetime
• Country of Manufacture: USA

Included Components

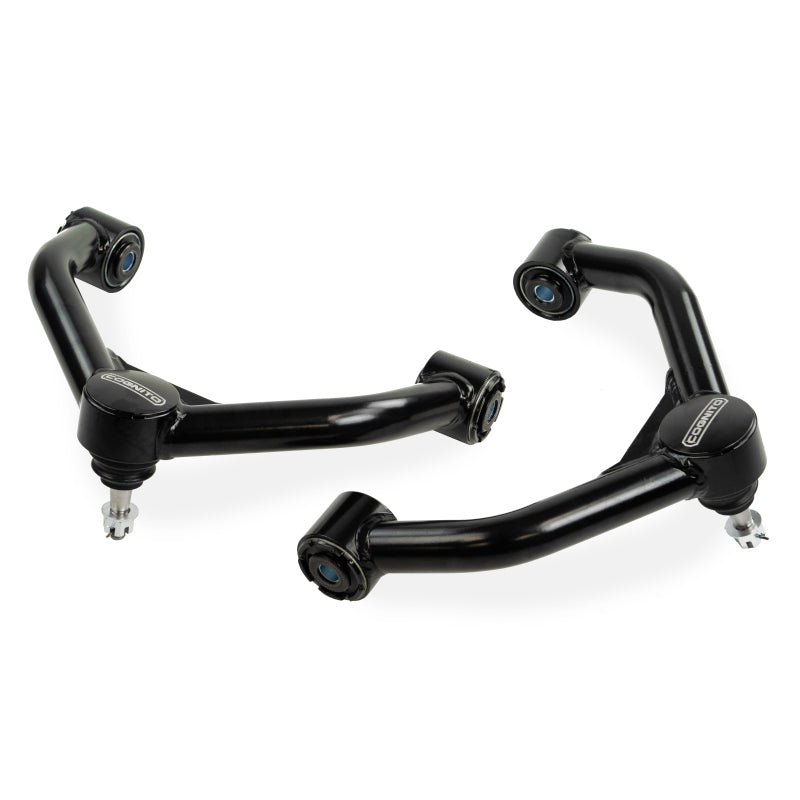

• 1x Driver side Cognito tubular upper control arm assembly (pre-assembled with press-in ball joint and pivot bushings)
• 1x Passenger side Cognito tubular upper control arm assembly (pre-assembled with press-in ball joint and pivot bushings)
• Ball joints (2x, pre-installed)
• Pivot bushings (pre-installed)
• Crush sleeves
• All necessary installation hardware

Product Description

The Cognito 110-91244 is a tubular ball joint upper control arm kit designed for the 2020-2025 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD in both 2WD and 4WD configurations. This kit is a direct replacement for the factory stamped steel upper control arms and is ideal for stock, leveled, and lifted applications where improved suspension geometry, better ride quality, and enhanced durability are desired. The tubular steel construction is CNC robot welded for consistent strength and finished in a durable semi-gloss black powder coat that resists corrosion and complements the truck's undercarriage appearance.

The key advantage of the Cognito upper control arms is their modified ball joint angle, which corrects the suspension geometry for trucks running at stock height, leveled, or lifted. Factory stamped steel upper control arms were originally designed as droop travel limiters, which placed excessive stress on the upper ball joints and caused premature wear - particularly on trucks with leveling kits, lift kits, or larger tires. The Cognito design eliminates this problem by improving the allowable droop travel so that the shocks or limit straps control droop rather than the upper control arm, significantly extending the service life of the ball joints, tie rods, CV axles, and other front suspension components. The added caster also improves highway-speed stability and straight-line tracking.

Each arm comes pre-assembled with press-in maintenance-free high-angle heavy-duty ball joints and maintenance-free pivot bushings, eliminating the need for periodic greasing and providing long-lasting, trouble-free operation in all conditions. Installation is a straightforward direct bolt-in process with no drilling or modification required. This kit supersedes previous Cognito part number 110-90802. Note that the 2024+ Silverado 2500HD ZR2 and Sierra 2500HD AT4X use a different Cognito upper control arm kit (110-91252) due to their unique suspension design. The kit is proudly made in the USA and backed by Cognito's limited lifetime warranty to the original purchaser.
