Cognito 120-90406 HD Adjustable Track Bar for 17-24 Ford F250/F350 4WD

Vehicle Fitment

• 2017-2024 Ford F-250 Super Duty (4WD)
• 2017-2024 Ford F-350 Super Duty (4WD)

Fitment Notes

• 4WD applications only - not for 2WD Super Duty trucks
• Compatible with stock-height trucks and Cognito, McGaughys, MaxTrac, or Full Throttle lift kits

Features

• Adjustable bar length even after installation on the vehicle
• 1.25" Heim joint at the chassis end for added articulation
• 1" Uniball at the axle end
• 17-4 stainless steel mounting pin at the axle
• Heavy-duty 1.5" x 0.25" DOM tubing construction
• Semi-gloss black powder coat finish for corrosion resistance
• No drilling required for installation
• Manufactured in the USA

Specifications

• Tubing: 1.5" x 0.25" DOM
• Chassis-end joint: 1.25" Heim joint
• Axle-end joint: 1" Uniball with 17-4 stainless steel pin
• Shipping weight: 19 lbs

Included Components

• 1x Complete Adjustable Track Bar
• 1x Mounting Hardware Kit

Product Description

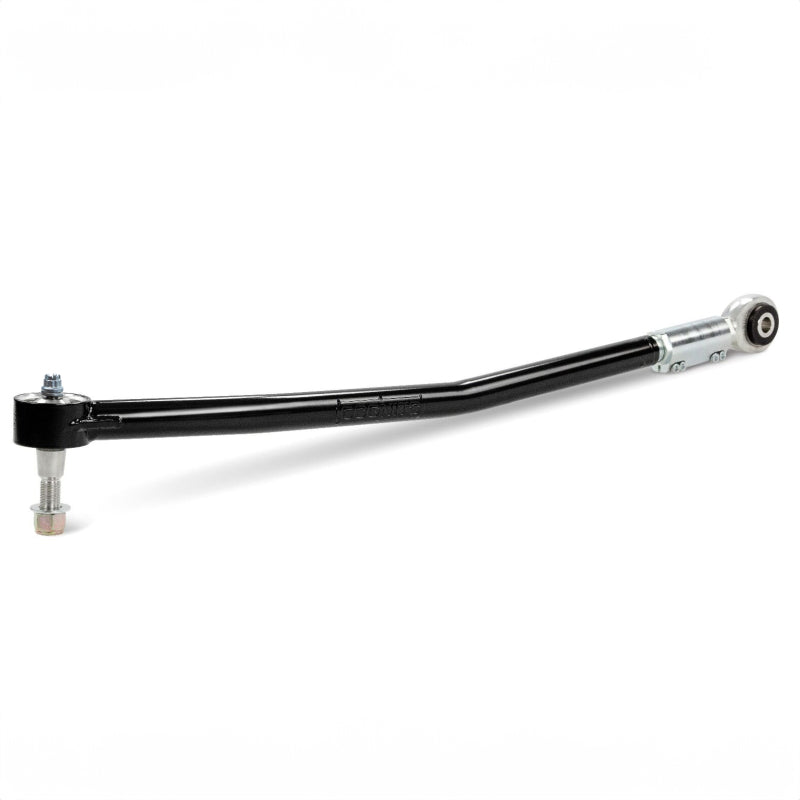

The Cognito 120-90406 replaces the factory track bar on 2017-2024 Ford F-250/F-350 4WD Super Duty trucks with a heavy-duty, fully adjustable design built from 1.5" x 0.25" DOM tubing. Unlike a fixed-length bar, this one can be fine-tuned for length after it's already installed, making it easier to dial in axle centering whether the truck is at stock height or running a lift kit.

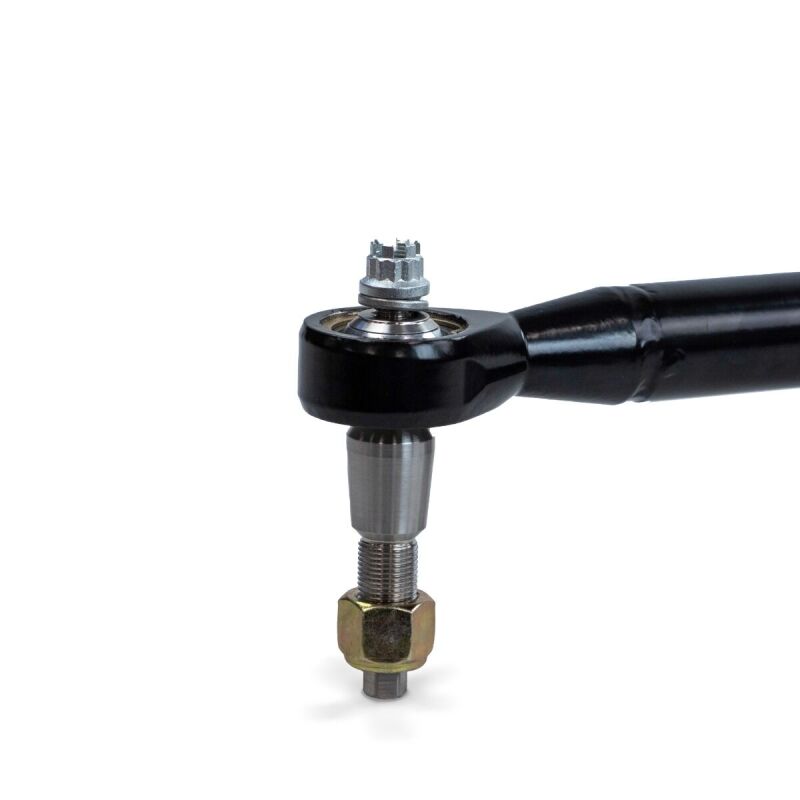

A 1.25" Heim joint at the chassis end and a 1" Uniball with a 17-4 stainless steel pin at the axle end handle the increased articulation that comes with larger lifts, while the semi-gloss black powder coat finish protects against corrosion. It's compatible with Cognito's own lift kits as well as McGaughys, MaxTrac, and Full Throttle systems, and installs without drilling in about 3 hours.
