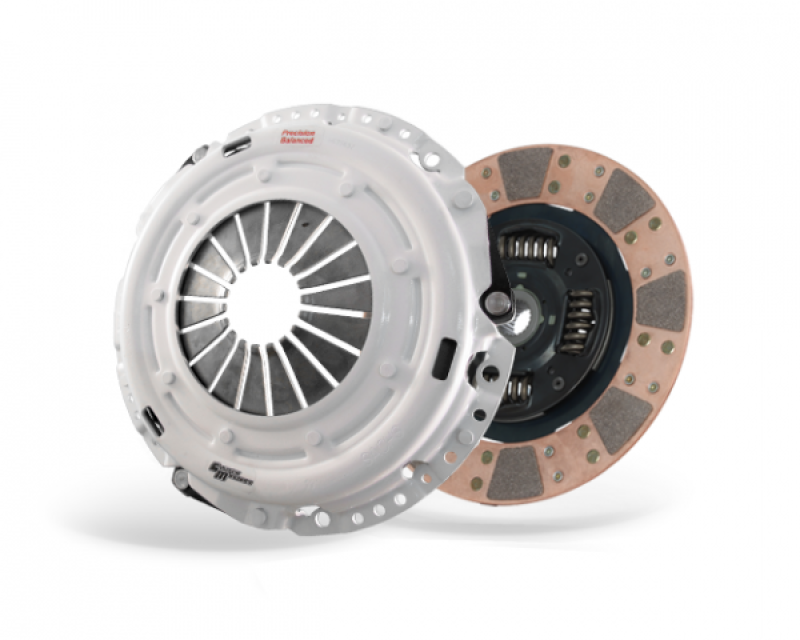

Clutch Masters 16616-HDCL FX400 8-Puck Clutch Kit for 2023-25 Toyota GR Corolla

Vehicle Fitment

• 2023-2025 Toyota GR Corolla (1.6L G16E-GTS Turbo 3-Cylinder, GZEA14, 6-Speed iMT Manual Transmission, GR-FOUR AWD)

Fitment Notes

• 6-speed manual transmission (iMT) only - the GR Corolla is exclusively offered with a manual transmission
• Does not fit standard Corolla, Corolla Hatchback, or Corolla Cross models - GR Corolla only
• Flywheel sold separately - Clutch Masters offers OEM-style steel (FW-616-SF) and aluminum flywheels for this application
• Works with factory OEM flywheel
• This is the 8-puck full-face ceramic lined (HDCL) disc with marcel cushion - the more street-friendly ceramic option compared to the 6-puck (HDC6)
• Ceramic friction material may produce some chatter during low-speed engagement - not recommended for stock or near-stock power levels

Features

• FX400 series single disc clutch kit with Power Plus I heavy-duty pressure plate
• Hi-Leverage self-adjusting pressure plate increases clamping force without excessive pedal pressure
• 8-puck full-face ceramic lined (HDCL) disc with marcel cushion for minimal chatter
• Marcel cushion between disc linings provides compliance during engagement for improved street drivability
• Torque capacity rated at 475 ft-lbs
• Sprung hub design provides moderate dampening in high-torque applications
• Premium ceramic friction material for rapid heat dissipation and outstanding holding capacity
• Complete kit with release bearing, pilot bearing, and alignment tool included

Specifications

• Series: FX400
• Disc Configuration: Single disc, 8-puck full-face ceramic lined, sprung hub with marcel cushion
• Pressure Plate: Power Plus I, Heavy Duty, Hi-Leverage, self-adjusting
• Friction Material: Premium ceramic (full-face lined with marcel)
• Torque Capacity: 475 ft-lbs
• Hub Type: Sprung with marcel cushion
• Flywheel: Works with factory OEM flywheel (sold separately for aftermarket options)

Included Components

• 1x Power Plus I heavy-duty Hi-Leverage self-adjusting pressure plate
• 1x 8-puck full-face ceramic lined disc (sprung hub with marcel cushion)
• 1x Release bearing (OEM or better)
• 1x Pilot bearing (when applicable)
• 1x Alignment tool

Product Description

The Clutch Masters 16616-HDCL is an FX400 series single disc clutch kit designed for the 2023-2025 Toyota GR Corolla equipped with the 1.6L G16E-GTS turbocharged 3-cylinder engine, 6-speed iMT manual transmission, and GR-FOUR all-wheel drive system. With a torque capacity of 475 ft-lbs, this kit provides substantial holding capacity headroom over the factory clutch for GR Corolla owners who have increased power output through tuning, intake, exhaust, downpipe, and intercooler modifications. The 300-horsepower G16E-GTS engine responds aggressively to bolt-on modifications and tuning, quickly exceeding the holding capacity of the factory clutch during spirited driving and track events.

The 8-puck full-face ceramic lined (HDCL) disc is the more street-friendly of Clutch Masters' two FX400 ceramic options for this platform. The full-face design distributes clamping force across a larger surface area than the 6-puck paddle variant, and the marcel cushion between the friction linings provides a small amount of compliance during initial engagement that significantly reduces the clutch chatter inherent to ceramic friction materials. This makes the HDCL disc the preferred choice for GR Corolla owners who daily drive their vehicles and want the holding capacity of a ceramic clutch without the constant chatter in first gear and reverse that the more aggressive 6-puck (HDC6) disc produces.

The Power Plus I pressure plate uses Clutch Masters' Hi-Leverage self-adjusting design to maximize clamping force with controlled pedal effort, protecting the crankshaft thrust bearing from excessive loads. This kit works with the factory OEM flywheel and includes the release bearing, pilot bearing, and alignment tool for a complete installation. For GR Corolla owners seeking the lightest possible rotating mass, Clutch Masters offers lightweight steel (FW-616-SF) and aluminum flywheels sold separately. For a smoother, less aggressive street option, the FX100 (16616-HD00), FX250 (16616-HD0F), and FX350 (16616-HDFF) are available. For dedicated track and race applications requiring maximum holding capacity, the FX500 (16616-HDB6) and the FX725 twin disc (16616-TD7R-SH) are also offered on this platform.
