Clutch Masters 16616-HD00 FX100 Single Disc Kit for 23-25 Toyota GR Corolla

Vehicle Fitment

2023-2025 Toyota GR Corolla 1.6L Turbo 6-Speed Manual (G16E-GTS)

Fitment Notes

• Engine Code: G16E-GTS 1.6L 3-Cylinder Turbocharged
• Chassis Code: GZEA14
• Flywheel sold separately - OEM style flywheel required for FX series kits
• Compatible with stock flywheel or Clutch Masters FW-616-SF steel flywheel
• Professional installation recommended
• Proper break-in procedure required for optimal clutch life

Features

• FX100 single disc clutch kit for heavy-duty street use
• Power Plus I Heavy-Duty pressure plate with Hi-Leverage technology
• 70% increased holding capacity over stock
• 395 ft/lbs torque capacity
• Steel-backed organic friction material disc
• Sprung hub design reduces drivetrain shock
• Only slightly increased pedal pressure over factory
• Normal clutch feel during engagement and disengagement
• Smooth operation for daily driving comfort
• Longer service life than stock clutch
• Designed for exhaust, intake, and up to 50hp nitrous upgrades
• No crankshaft thrust bearing wear from excessive pedal pressure
• Complete kit includes alignment tool and bearings

Specifications

• Brand: Clutch Masters
• Part Number: 16616-HD00
• Product Line: FX100
• Product Type: Single Disc Clutch Kit
• Vehicle Application: 2023+ Toyota GR Corolla
• Engine: G16E-GTS 1.6L 3-Cylinder Turbo
• Transmission: 6-Speed Manual
• Pressure Plate Type: Power Plus I Heavy-Duty
• Disc Type: Steel-Backed Organic
• Hub Type: Sprung
• Torque Capacity: 395 ft/lbs
• Holding Capacity Increase: 70% Over Stock
• Recommended Use: Heavy-Duty Street
• Pedal Feel: Slightly Increased Over Stock
• Flywheel Included: No (Sold Separately)

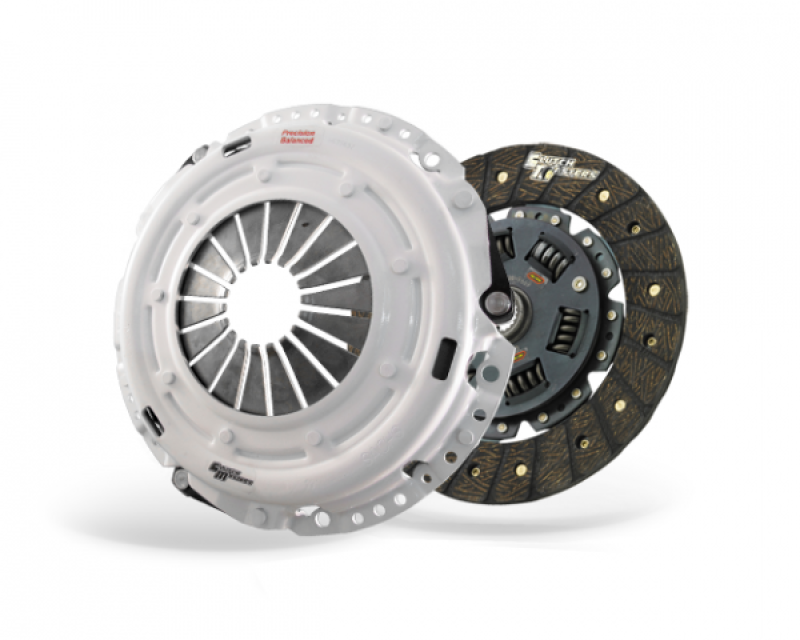

Included Components

• (1) Power Plus I Heavy-Duty pressure plate
• (1) Steel-backed organic friction disc
• (1) Clutch alignment tool
• (1) Release/throw-out bearing (OEM or better quality)
• (1) Pilot bearing (when applicable)
• Instruction card
• Decals

Product Description

The Clutch Masters 16616-HD00 FX100 clutch kit is engineered for the 2023 and newer Toyota GR Corolla equipped with the G16E-GTS 1.6L turbocharged 3-cylinder engine and 6-speed manual transmission. This heavy-duty street clutch system features the Power Plus I pressure plate with Clutch Masters' proprietary Hi-Leverage technology, which increases clamping force by 70% over stock without the excessive pedal pressure that plagues many aftermarket clutches. The increased pedal pressure that typically accompanies high-performance clutches can adversely affect stock clutch linkage and cause premature crankshaft thrust bearing wear, leading to missed shifts, damaged components, and potential engine damage. The FX100 system avoids these issues while delivering 395 ft/lbs of torque capacity to handle bolt-on modifications including exhaust systems, intake upgrades, and up to 50hp nitrous oxide systems. The steel-backed organic friction disc provides extended wear and maintains the smooth engagement characteristics of a factory clutch for comfortable daily driving. The sprung hub design absorbs drivetrain shock for refined operation. This complete kit includes the pressure plate, clutch disc, alignment tool, and OEM-quality release and pilot bearings. Flywheel is sold separately and an OEM-style flywheel is recommended for use with FX series single disc clutch kits.
