Clutch Masters 05500-HD00-R FX100 Clutch Kit Fiat 500 Abarth 500 Turbo 1.4L

Vehicle Fitment

• 2012-2019 Fiat 500 Abarth - 1.4L Turbocharged MultiAir Inline-4, 5-Speed Manual, FWD
• 2013-2019 Fiat 500c Abarth (Cabrio) - 1.4L Turbocharged MultiAir Inline-4, 5-Speed Manual, FWD
• 2013-2019 Fiat 500 Turbo - 1.4L Turbocharged MultiAir Inline-4, 5-Speed Manual, FWD

Fitment Notes

• 5-speed manual transmission only - not compatible with automatic or Dualogic automated manual transmission models
• Rigid (solid) hub disc - compatible with the OEM stock flywheel only; WILL NOT work with an aftermarket lightweight/billet flywheel; if upgrading to a billet flywheel, the dampened disc version (05500-HD00-D) must be used and both clutch and flywheel must be installed simultaneously
• Throw-out bearing is NOT included - reuse your existing throw-out bearing or purchase separately before installation
• Pilot bearing / alignment tool included

Features

• FX100 Stage 1 performance upgrade - up to 90% more holding capacity over stock with minimal increase in pedal effort
• Steel-backed organic friction disc with rigid hub - smooth, progressive engagement with stock-like pedal feel for daily street use
• Hi-Leverage™ heavy-duty pressure plate - Clutch Masters' proprietary design increases clamping force through a re-engineered fulcrum point without raising pedal effort to uncomfortable levels
• Engineered for bolt-on modified Fiat 500 Abarth and 500 Turbo builds - handles exhaust, intake, ECU tune, and up to 50 hp NOS upgrades
• Longer service life than stock - improved friction material and reinforced pressure plate deliver better wear resistance over the OEM clutch
• Verified by Fiat 500 specialists to handle 240+ whp on modified 1.4T builds
• Made in the USA by Clutch Masters since 1976

Specifications

• Part Number: 05500-HD00-R
• Clutch System: FX100 Stage 1
• Clutch Type: Push-Type
• Pressure Plate Style: Hi-Leverage™ Heavy Duty
• Disc Material: Steel-Backed Organic Lined
• Disc Center Style: Rigid (Solid Hub)
• Flywheel Compatibility: OEM Stock Flywheel Only
• Application: Fiat 500 Abarth / 500 Turbo - 1.4L Turbo Inline-4, 5-Speed Manual

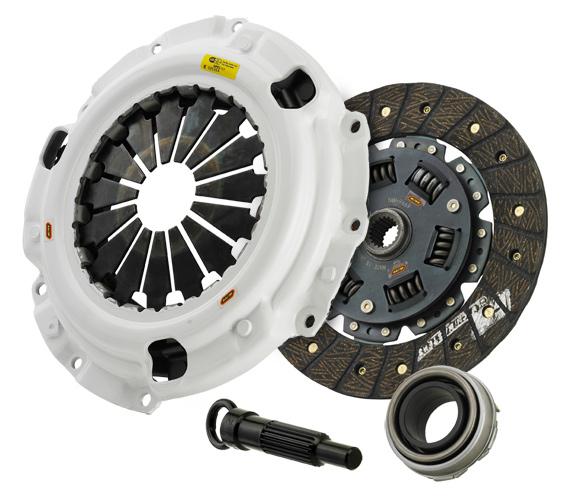

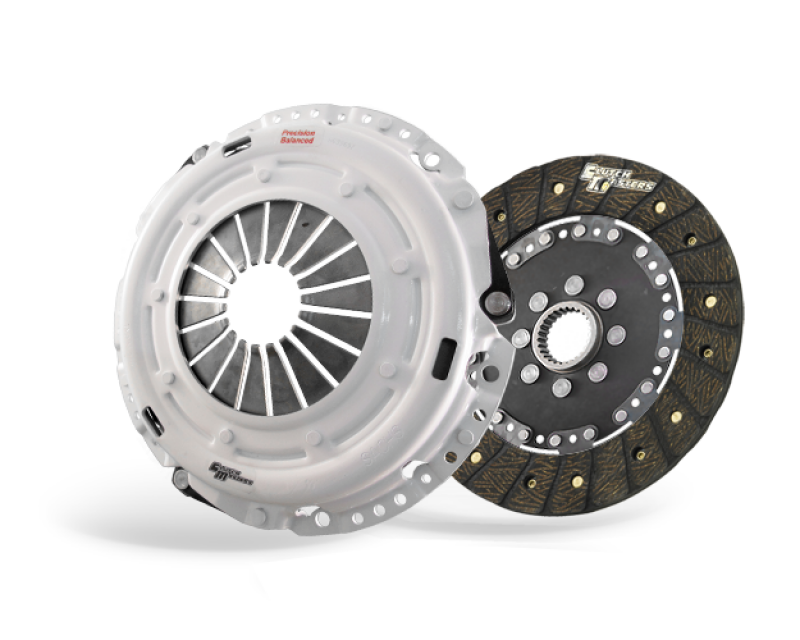

Included Components

• 1x Hi-Leverage™ Heavy Duty Pressure Plate
• 1x Steel-Backed Organic Rigid-Hub Friction Disc
• 1x Clutch Alignment Tool

Product Description

The Clutch Masters 05500-HD00-R is an FX100 Stage 1 clutch kit for the Fiat 500 Abarth and 500 Turbo equipped with the 1.4L turbocharged MultiAir engine and 5-speed manual transmission. It's the ideal first upgrade for 500 Abarth owners who have added bolt-on modifications and need more clutch capacity than the OEM unit can reliably provide - without changing the familiar pedal feel and engagement behavior of a stock clutch.

The FX100 delivers up to 90% more holding capacity over stock through Clutch Masters' Hi-Leverage™ pressure plate and a steel-backed organic rigid-hub disc, making it fully capable of handling heavily tuned Abarth builds producing 200+ wheel horsepower. Important installation notes: this rigid-hub disc is designed for use with the OEM stock flywheel only - if you plan to install an aftermarket billet flywheel, you must instead use the dampened disc version (05500-HD00-D) and install both the clutch and flywheel together. The throw-out bearing is not included and should be sourced separately before beginning the install.
