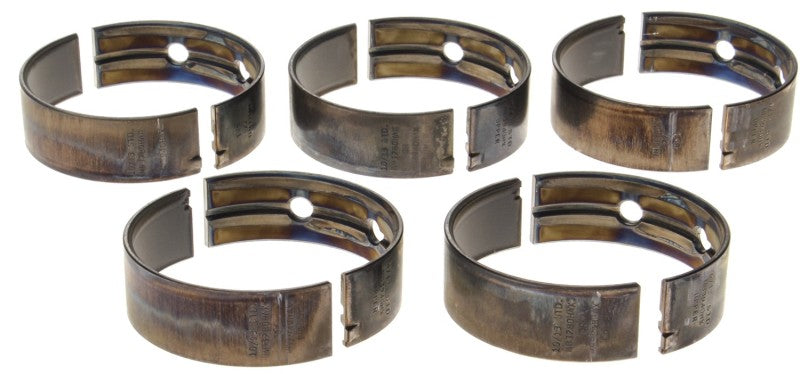

Clevite MS2296HX H-Series Main Bearing Set (.001" Extra Clearance) for 5.7-6.4 L

Vehicle Fitment

• Chrysler / Dodge / Jeep / Ram - 5.7 L and 6.4 L Hemi V8 engines
• Applicable for high-performance or stock-based Hemi builds requiring extra oil clearance

Features

• H-Series high-performance tri-metal main bearing design
• Extra 0.001" oil clearance for improved lubrication under high load
• Steel backing with copper-lead core and durable overlay
• High crush factor ensures secure seating and reliable contact
• Enlarged chamfers for crank fillet clearance
• Half-groove design in upper shells for optimized oil flow
• Designed for medium to high RPM performance applications
• Durable construction suitable for street and motorsport use

Specifications

• Part Number: MS2296HX
• Series: Clevite 77 H-Series
• Oil Clearance: +0.001" (0.025 mm) extra
• Size: Standard journal size (STD)
• Material: Tri-metal (steel / copper-lead / overlay)
• Groove: Half-groove upper shell, plain lower shell
• Quantity: Set of 5 main bearing shells

Included Components

• 5x main bearing shells (upper and lower halves)

Product Description

The **Clevite MS2296HX** is a high-performance H-Series main bearing set designed for 5.7 L and 6.4 L Hemi V8 engines. The extra 0.001" oil clearance provides an enhanced oil film, making it ideal for high-load, high-RPM applications or engines with slightly worn crank journals.

Constructed with a tri-metal design - steel backing, copper-lead core, and precision overlay - these bearings offer exceptional strength, fatigue resistance, and reliability. The high crush factor ensures secure seating and consistent contact, while enlarged edge chamfers accommodate crank fillets for smooth operation.

The upper half-groove allows efficient oil distribution, ensuring the engine stays well-lubricated even under performance conditions. Perfect for street performance or motorsport builds, the MS2296HX delivers durable, long-lasting support for the crankshaft in demanding Hemi engine applications.
