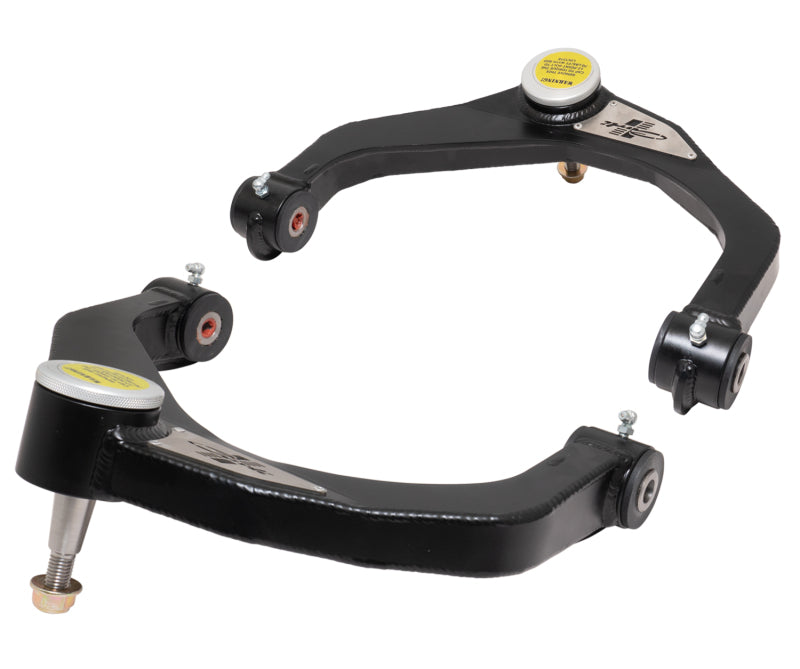

Carli CS-RAM15UCA-09 Boxed Upper Control Arms for 09-26 Ram 1500 4x4

Vehicle Fitment

• 2009-2026 Ram 1500 (4WD)

Fitment Notes

• Does not fit RHO or TRX trims
• Designed to correct geometry for Carli 2.5"-3" leveling lift systems

Features

• Boxed steel construction using a strategic combination of 1/8" and 3/16" cold-rolled steel for added strength
• 1" FK uniball paired with an in-house machined 17-4 stainless uniball pin
• Provides 1" more misalignment (droop travel) than the restrictive factory ball joint
• Anodized aluminum cap protects the uniball from environmental wear
• Modified pivot point position corrects geometry specifically for leveled ride height
• Serviceable Energy Suspension bushings and crush sleeves at the frame mount reduce vibration
• Durable black powder coat finish for long-term corrosion resistance
• Bolt-on installation, direct replacement for the factory upper control arm

Specifications

• Construction: 1/8" and 3/16" cold-rolled boxed steel
• Uniball: 1" FK uniball, 17-4 stainless steel pin
• Frame bushings: Serviceable Energy Suspension
• Finish: Black powder coat
• Recommended wheel/tire: 8.5" wide wheel, 4.5" backspacing, 33" tire for minimal trimming

Included Components

• 2x Front Upper Control Arms
• Mounting Hardware

Product Description

The Carli CS-RAM15UCA-09 Boxed Upper Control Arms are built for 2009-2026 Ram 1500 4WD trucks (excluding RHO and TRX) running a Carli leveling suspension system. They replace the factory upper control arms with a heavy-duty boxed steel design that corrects geometry at leveled ride height, restoring proper alignment that factory arms lose once a lift is installed.

A 1" FK uniball with a machined 17-4 stainless pin replaces the restrictive factory ball joint, adding roughly an inch of additional droop travel for better articulation on lifted trucks. Serviceable frame-side bushings keep vibration in check, while the black powder coat finish protects against the elements. It's a direct bolt-on upgrade for Ram 1500 owners running Carli's Commuter or Performance suspension systems who want more durable, better-geometry control arms than stock.
