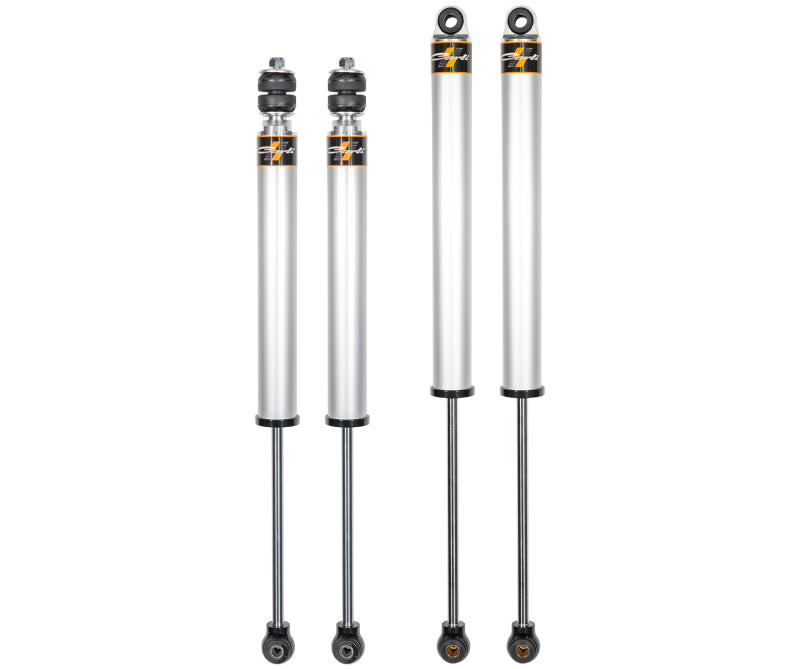

Carli AS-FLVLSPKG-CS20IFP-B Commuter 2.0 IFP Shock Set for 05-25 Ford F250/F350

Vehicle Fitment

• 2005-2007 Ford F-250 Super Duty (4WD, 6.0L Power Stroke Diesel)
• 2005-2007 Ford F-350 Super Duty (4WD, 6.0L Power Stroke Diesel)
• 2008-2010 Ford F-250 Super Duty (4WD, 6.4L Power Stroke Diesel)
• 2008-2010 Ford F-350 Super Duty (4WD, 6.4L Power Stroke Diesel)
• 2011-2016 Ford F-250 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2011-2016 Ford F-350 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2017-2019 Ford F-250 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2017-2019 Ford F-350 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2020-2022 Ford F-250 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2020-2022 Ford F-350 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2023-2025 Ford F-250 Super Duty (4WD, 6.7L Power Stroke Diesel)
• 2023-2025 Ford F-350 Super Duty (4WD, 6.7L Power Stroke Diesel)

Fitment Notes

• 4WD diesel models only - does not fit 2WD trucks
• Does not fit gasoline-powered F-250/F-350 trucks - use AS-FLVLSPKG-CS20IFP-C for gas engine applications
• "-B" tuning is valved specifically for trucks running stock leaf springs or Carli Progressive Add-a-Packs (PAP) - do not use with Carli Full Progressive Leaf Springs (use "-A" tuning instead)
• This is a shock package component - the front and rear shock set used within Carli Commuter leveling system kits
• Compatible with 2.5" Carli front leveling coil springs and stock or Add-a-Pack rear leaf springs
• 2020+ trucks achieve approximately 3.5" of front lift with Carli leveling coils; 2005-2019 trucks achieve approximately 2.5"
• Carli proprietary tuning is based specifically around the weight of the F250/F350 diesel platform

Features

• Carli-SPEC 2.0" internal floating piston (IFP) shocks with Carli proprietary tuning developed specifically for the Ford Super Duty diesel platform
• Front and rear shock set provides balanced damping across both axles for consistent on-road ride quality
• "-B" valving profile features substantially more rebound tuning than the "-A" variant, preventing the rear from bouncing out once compressed - optimized for stiffer stock/Add-a-Pack leaf springs
• 6063 aluminum shock bodies for superior heat dissipation, corrosion resistance, and clean long-lasting appearance
• 5/8" hardened, chrome-plated steel shock shafts for durability and smooth operation
• 9" front wheel travel and 12.3" rear wheel travel - significant improvement over factory shocks
• Designed for on-road, in-town, highway, and towing/hauling applications - Carli's entry-level shock package for daily drivers
• Internal reservoir design provides a clean, compact installation without external hoses or reservoir mounts
• Designed and engineered by Carli Suspension - made in the USA

Specifications

• Part Number: AS-FLVLSPKG-CS20IFP-B
• Brand: Carli Suspension
• Type: Commuter 2.0 IFP Leveling Shock Package (Front and Rear)
• Shock Diameter: 2.0 in.
• Shock Style: Internal Floating Piston (IFP) - no external reservoir
• Shock Body Material: 6063 Aluminum
• Shaft Material: 5/8 in. Hardened, Chrome-Plated Steel
• Tuning Profile: "-B" - Stock Leaf Springs / Carli Progressive Add-a-Packs (PAP)
• Lift Compatibility: 2.5 in. (2005-2019) / 3.5 in. (2020+) with Carli leveling coils
• Front Wheel Travel: 9.0 in.
• Rear Wheel Travel: 12.3 in.
• Engine Compatibility: Power Stroke Diesel (6.0L, 6.4L, 6.7L)
• Quantity: Set of 4 (2 front, 2 rear)
• Compatible Carli Systems: CS-FLVL-COM-CS-05-PAP, CS-FLVL-COM-CS-08-PAP, CS-FLVL-COM-CS-11-PAP, CS-FLVL-COM-CS-17-PAP, CS-FLVL-COM-CS-23-PAP
• Position: Front and Rear

Included Components

• 2x Carli-SPEC 2.0" IFP Front Shocks (diesel-specific, "-B" PAP tuning, 6063 aluminum body)
• 2x Carli-SPEC 2.0" IFP Rear Shocks (diesel-specific, "-B" PAP tuning, 6063 aluminum body)

Product Description

The Carli AS-FLVLSPKG-CS20IFP-B is the Commuter 2.0 IFP leveling shock package - Carli Suspension's entry-level custom-tuned shock set for the 2005-2025 Ford F-250 and F-350 Super Duty 4WD diesel platform. Designed for owners seeking the best possible on-road ride quality who do not plan to off-road their vehicle, this complete front and rear shock set utilizes Carli-SPEC 2.0" internal floating piston shocks with proprietary tuning developed specifically around the weight and handling characteristics of the diesel Super Duty. The Commuter is purpose-built for on-road comfort - in town, on the highway, and while towing - delivering all-around ride quality that far exceeds factory shocks at an accessible price point.

The "-B" designation indicates this shock set is valved specifically for trucks running stock leaf springs or Carli Progressive Add-a-Packs in the rear. This tuning profile features substantially more rebound damping than the "-A" (Full Spring Pack) variant, which prevents the stiffer stock or Add-a-Pack rear springs from bouncing the rear of the truck out once compressed over bumps. Running the wrong tuning profile with the wrong spring type will result in suboptimal ride quality - the "-B" should not be paired with Carli Full Progressive Leaf Springs, and the "-A" should not be paired with stock springs. Each shock features a 6063 aluminum body for superior heat dissipation and corrosion resistance, along with a 5/8" hardened, chrome-plated steel shaft for smooth, long-lasting operation.

This shock package provides 9 inches of front wheel travel and 12.3 inches of rear wheel travel - a meaningful improvement over factory shocks that translates to better absorption of road imperfections, expansion joints, and uneven surfaces. The internal floating piston design keeps the installation clean and compact without external hoses or reservoir mounts, making it ideal for daily-driven trucks where simplicity and appearance matter. This shock set is a component used within Carli's Commuter leveling systems across all Super Duty model years from 2005 through 2025, and is designed to pair with Carli's front leveling coil springs. For owners who want off-road capability in addition to on-road comfort, Carli offers the Backcountry (2.0" remote reservoir) and Pintop (2.5" King) shock packages as upgrades within the same leveling system framework.
