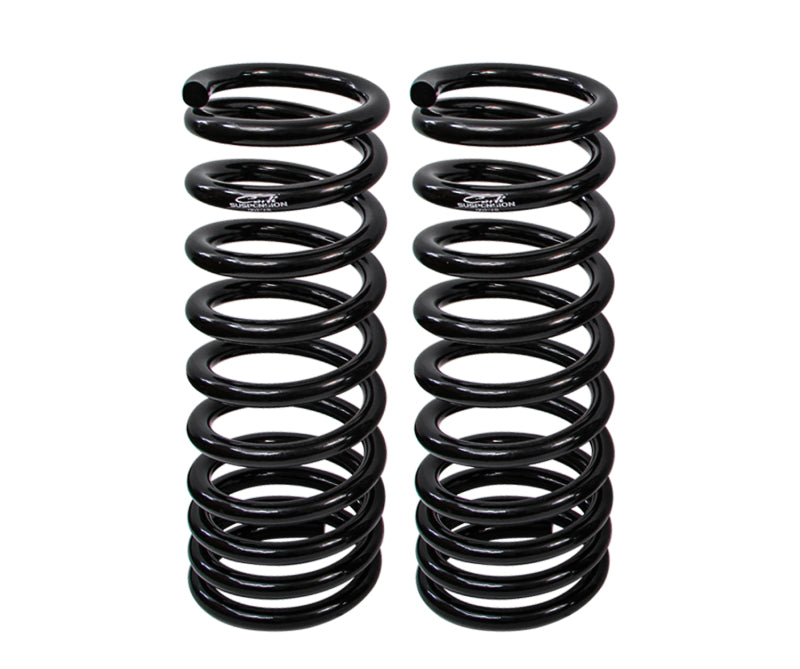

Carli CS-DMRC-03-D 2.75" Lift Multi-Rate Front Coil Springs for 03-09 Ram 2500

Vehicle Fitment

• 2003-2009 Dodge Ram 2500 (ST, SLT, Laramie, Sport, 5.9L Cummins I6 Turbo Diesel [2003-2007] / 6.7L Cummins I6 Turbo Diesel [2007.5-2009], 4WD)
• 2003-2009 Dodge Ram 3500 (ST, SLT, Laramie, 5.9L Cummins I6 Turbo Diesel [2003-2007] / 6.7L Cummins I6 Turbo Diesel [2007.5-2009], 4WD)

Fitment Notes

• 4WD models only - does not fit 2WD applications
• Diesel engine applications only - does not fit 5.7L Hemi V8 trucks (use CS-DMRC-03-H for Hemi and Power Wagon applications)
• Spring rate is tuned for the heavier diesel drivetrain weight; using these coils on a Hemi truck will result in more lift than specified
• These coils will physically bolt into any 4WD 1994-2013 Ram 2500/3500, but the spring rate is designated for 2003-2009 diesel short-arm trucks
• For 2010-2013 diesel trucks, Carli recommends the CS-DLRC-10-D linear rate coils
• Lift height varies from 2.75 to 3 inches depending on cab configuration

Features

• Multi-rate (progressive) coil design with variable spacing for a dual-stage spring rate
• Soft initial compression for excellent small-bump compliance on paved roads
• Progressive rate stiffens under heavy loads for control during off-road driving, hard braking, and cornering
• Provides 2.75-3 inches of front lift depending on cab configuration
• Increases front suspension travel by up to 50% over the factory platform
• Driver and passenger side-specific matched pair for balanced ride height
• Shot peened for increased fatigue resistance and extended spring life
• Pre-set to prevent settling or sagging over time
• Powder coated for corrosion resistance and long-lasting appearance

Specifications

• Position: Front
• Spring Type: Multi-rate (progressive)
• Lift Height: 2.75-3 inches (cab configuration dependent)
• Treatment: Shot peened, pre-set, powder coated
• Configuration: Driver and passenger side-specific pair
• Engine Compatibility: Diesel only (5.9L / 6.7L Cummins)
• Drivetrain: 4WD only
• Shipping Weight: 83 lbs
• Shipping Dimensions: 24" L x 16" W x 8" H

Included Components

• 2x Front multi-rate coil springs (driver side and passenger side specific, powder coated)

Product Description

The Carli Suspension CS-DMRC-03-D Multi-Rate Front Coil Springs are purpose-built for 2003-2009 Dodge Ram 2500 and 3500 4WD trucks equipped with the 5.9L or 6.7L Cummins turbo diesel engine. These coils deliver 2.75 to 3 inches of front lift depending on cab configuration, providing a leveled stance while dramatically improving ride quality over the factory springs. Unlike a simple spacer lift, these coils replace the factory springs entirely and are tuned to complement the weight and dynamics of the diesel drivetrain for a balanced, comfortable driving experience both on and off road.

The multi-rate design is what sets these coils apart. Each coil is wound with variable spacing - the lower winds are closer together, while the upper winds are spaced farther apart. Under light loads, the full length of the spring is active, providing a soft initial rate that soaks up small bumps and road imperfections with ease. As more force is applied, the tighter bottom coils progressively contact each other and become inactive, effectively shortening the spring and increasing its stiffness. This gives the truck a compliant, comfortable ride on the highway while providing the firmness and control needed during aggressive off-road driving, towing, heavy braking, and hard cornering.

Each pair is engineered as a driver and passenger side-specific matched set for precise ride height balance. The springs are shot peened for maximum fatigue resistance, pre-set so they will never sag or settle, and finished with a durable powder coat. These coils are a core component of Carli's Leveling, Starter, Commuter, Backcountry, Pintop, and Dominator suspension systems for the third-generation Ram HD platform. They can also be purchased as a standalone upgrade to replace tired or sagging factory springs. Shocks, track bar, sway bar, and other suspension components are sold separately or included in complete Carli system packages.
