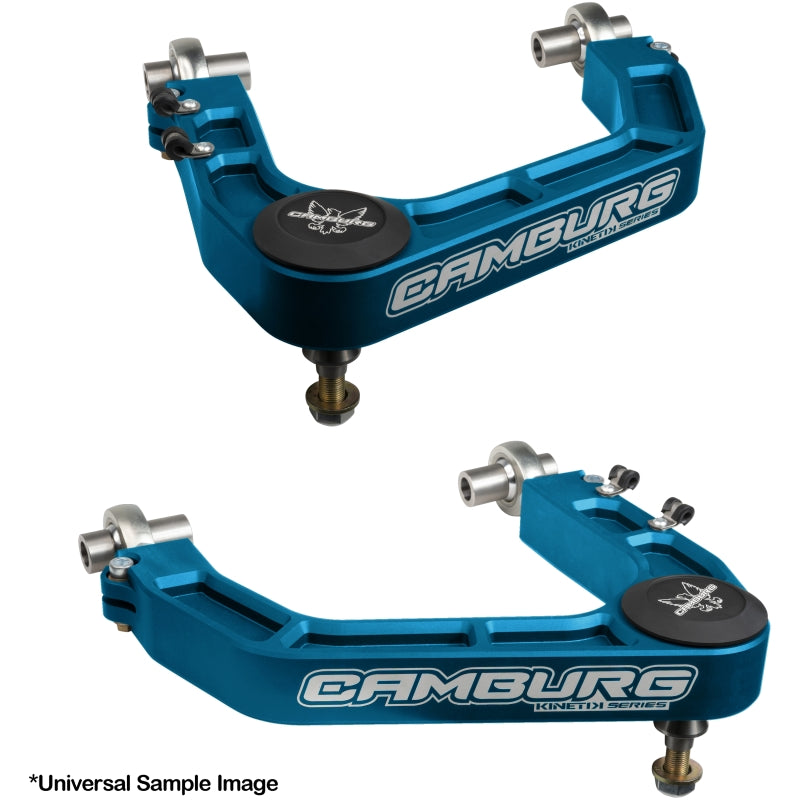

Camburg CAM-310194-BLU KINETIK V2 Uniball UCA Blue 2024-25 Tacoma 4Runner LX600

Vehicle Fitment

• 2024-2025 Toyota Tacoma (All Trims, 2WD/4WD) - Designed for 1-3" of lift
• 2025 Toyota 4Runner (All Trims, 4WD) - Designed for 1-3" of lift
• 2022-2025 Toyota Land Cruiser 300 (All Trims, 4WD) - Designed for 1-3" of lift
• 2024-2025 Toyota Land Cruiser 250 (All Trims, 4WD) - Designed for 1-3" of lift
• 2022-2025 Lexus LX600 (All Trims, 4WD) - Designed for 1-3" of lift
• 2024-2025 Lexus GX550 (All Trims, 4WD) - Designed for 1-3" of lift

Fitment Notes

• Designed for 1-3" of lift when paired with aftermarket extended-length coilovers - lift is determined by coilovers, not the control arms alone
• Air ride sensor brackets included for vehicles equipped with air ride suspension systems (LX600, GX550, Land Cruiser-equipped trims)
• Model-specific tapered stainless steel uniball spindle adaptors provide a precision bolt-on fit - no drilling or modifications required
• Inner fender trimming or body mount modification behind the front tires may be required depending on wheel, tire, and offset selection
• Color: King Blue (BLU suffix) - anodized to match King Shocks; also available in Gray, Red, and Gold
• Professional installation and alignment required after installation

Features

• CNC machined in-house from aerospace-grade 6061 billet aluminum for maximum strength over OEM stamped arms
• FK 1.25" uniball with military-grade PTFE liner - stronger and longer-lasting than the factory ball joint, with increased misalignment for maximum wheel travel
• FK 7/8" chromoly heim joints at frame pivots provide additional camber and caster adjustability while eliminating flex and deflection under hard use and heavy braking
• Corrects caster and camber geometry after lifting - maintains proper alignment specs and improves on- and off-road handling
• Increases usable front wheel travel for improved articulation and off-road capability
• Model-specific one-piece tapered heat-treated stainless steel uniball spindle adaptors - no drilling required
• Air ride sensor brackets included to accommodate OEM air suspension sensor linkage
• Bead blasted, Type II anodized King Blue finish with laser-etched Camburg logo
• All necessary hardware included - Made in USA

Specifications

• Material: Aerospace-Grade 6061 Billet Aluminum
• Finish: Bead Blasted, Type II Anodized King Blue - Laser Etched Camburg Logo
• Uniball: FK 1.25" with Military-Grade PTFE Liner
• Spindle Adapter: Model-Specific Tapered Heat-Treated Stainless Steel (One-Piece)
• Frame Pivot: FK 7/8" Chromoly Heim Joints (Camber/Caster Adjustable)
• Lift Range: 1-3" (with aftermarket coilovers)
• Position: Front Upper Control Arms (Pair)
• Series: KINETIK V2 Series
• Manufacturing: CNC Machined In-House - Made in USA

Included Components

• 2x Camburg KINETIK V2 Billet Upper Control Arms (King Blue)
• 2x FK 1.25" Uniball Cover Caps with O-Rings (press-on, pre-installed)
• 2x Tapered Uniball Spindle Adaptors (heat-treated stainless steel)
• 2x Domed Uniball Spacers
• 4x FK 7/8" Heim Joints with Heim Spacers (short and long)
• 2x Air Ride Sensor Brackets (for air suspension-equipped trims)
• 2x Stainless Rubber Clamps
• All necessary AN/Mil-spec mounting hardware (12pt bolts, Allen bolts, Allen screws, jam nuts, lock nuts, flanged nuts, nyloc nuts, stainless washers)

Product Description

The Camburg CAM-310194-BLU is the King Blue KINETIK V2 Series billet uniball upper control arm kit designed for a broad family of Toyota and Lexus platforms sharing the new TNGA-F architecture: the 2024-2025 Tacoma, 2025 4Runner, 2022-2025 Land Cruiser 300, 2024-2025 Land Cruiser 250, 2022-2025 Lexus LX600, and 2024-2025 Lexus GX550. Finished in King Blue Type II anodize to match King Shocks, these arms combine premium aesthetics with Camburg's proven KINETIK V2 construction.

Each arm is CNC machined in-house from aerospace-grade 6061 billet aluminum and fitted with an FK 1.25" PTFE-lined uniball - replacing the factory ball joint to gain wheel travel, increase misalignment angle, and eliminate the single largest weak point in the OEM front suspension. Model-specific tapered stainless steel spindle adaptors deliver a precise bolt-on fit with no drilling. FK 7/8" chromoly heim joints at the frame provide adjustable caster and camber correction while eliminating deflection under hard use. Air ride sensor brackets are included for trims equipped with OEM air suspension. Designed for 1-3" of lift with aftermarket coilovers; all hardware is included for installation.
