Brembo KT04523 Rear Brake Kit for 2017-2022 Mercedes-Benz E/CLS AMG 3.0L

Vehicle Fitment

• 2018 Mercedes-Benz E400 (W213, 3.0L V6 Twin-Turbo, RWD/4MATIC AWD)
• 2017-2018 Mercedes-Benz E43 AMG (W213, 3.0L V6 Twin-Turbo, 4MATIC AWD)
• 2019-2022 Mercedes-Benz E450 (W213, 3.0L I6 Turbo, RWD/4MATIC AWD)
• 2019-2022 Mercedes-Benz E53 AMG (W213, 3.0L I6 Turbo Mild Hybrid, 4MATIC AWD)
• 2019-2021 Mercedes-Benz CLS450 (C257, 3.0L I6 Turbo Mild Hybrid, RWD/4MATIC AWD)
• 2019-2021 Mercedes-Benz CLS53 AMG (C257, 3.0L I6 Turbo Mild Hybrid, 4MATIC AWD)

Fitment Notes

• Rear axle brake kit.
• Kit consists of 2x Brembo 09.D532.13 rear rotors and 1x P50138 rear brake pad set.
• 2018 E400 fitment includes Base and 4MATIC configurations where the specified rear brake system is installed.
• 2017-2018 E43 AMG fitment is 4MATIC AWD only.
• 2019-2022 E450 fitment includes Base and 4MATIC configurations where the specified rear brake system is installed.
• 2019-2022 E53 AMG fitment is 4MATIC AWD only.
• 2019-2021 CLS450 includes Base and 4MATIC configurations.
• 2019-2021 CLS53 AMG fitment is 4MATIC AWD only.
• 2022 CLS450 and E450 coverage is verified; 2022 CLS53 AMG and E53 AMG coverage is not included.
• Verify the factory rear brake configuration before installation.

Features

• Brembo OE-equivalent rear disc brake kit.
• Complete rear-axle pad and rotor replacement solution.
• Includes Brembo PRIME low-metallic rear brake pads.
• Low-metallic friction material is engineered for OE-equivalent braking performance.
• Premium pad shims help reduce brake noise and vibration.
• Acoustic wear indication provides notification as the pad approaches its service limit.
• Includes high-carbon Brembo rear rotors designed for improved damping characteristics.
• High-carbon construction supports heat conduction and thermal stability.
• Internally ventilated rotor design promotes heat dissipation.
• Coated rotor surface helps protect exposed areas against corrosion.
• Two-piece Co-Cast rotor construction matches the applicable OE-style configuration.
• Matched pads and rotors simplify complete rear brake service.

Specifications

• Brand: Brembo
• Part Number: KT04523
• Product Type: Rear Disc Brake Pad and Rotor Kit
• Position: Rear
• Rotor Part Number: 09.D532.13
• Brake Pad Part Number: P50138
• Rotor Diameter: 360 mm
• Rotor Thickness: 26 mm
• Rotor Minimum Thickness: 23.4 mm
• Rotor Centering Diameter: 69 mm
• Rotor Mounting Holes: 5
• Rotor Type: Internally Ventilated, Two-Piece Co-Cast
• Rotor Material: High-Carbon Cast Iron
• Rotor Surface: Coated
• Brake Pad Material: PRIME Low-Metallic
• Brake Pad Width: 129 mm
• Brake Pad Thickness: 17 mm
• Brake Pad Height: 49/70 mm
• Brake System: TRW/Lucas/Girling
• Wear Indicator: Prepared for Wear Indicator
• WVA: 22602, 22603

Included Components

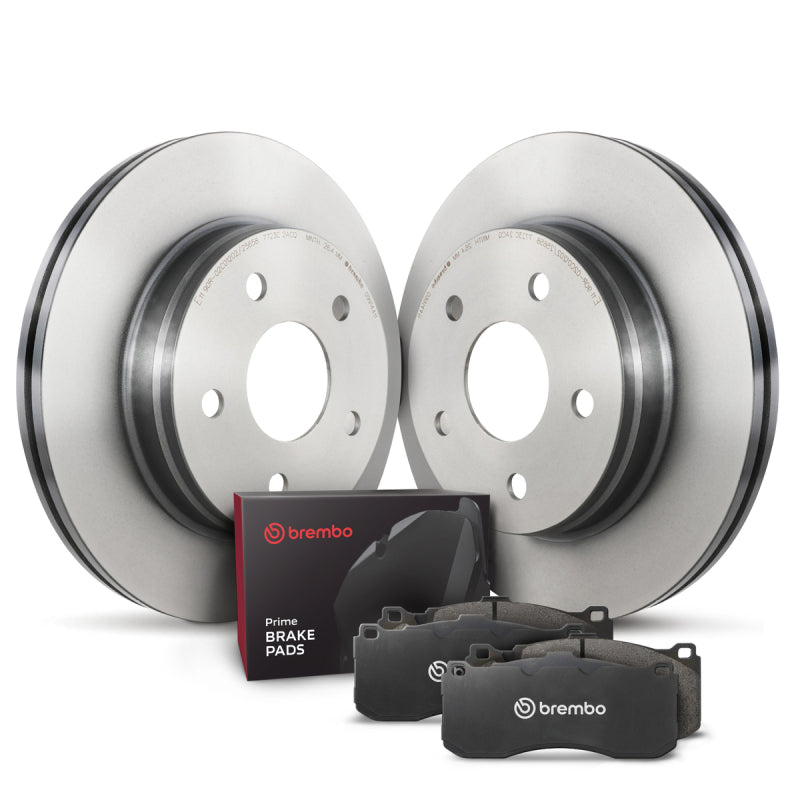

• 2x Brembo 09.D532.13 Rear Brake Rotors
• 1x Brembo P50138 Rear Brake Pad Set

Product Description

The Brembo KT04523 OE Rear Disc Brake Kit combines two 09.D532.13 high-carbon rear rotors with a P50138 PRIME low-metallic rear brake pad set. Designed for compatible Mercedes-Benz E-Class and CLS-Class applications, this matched rear-axle package provides an OE-equivalent replacement solution for vehicles equipped with the specified factory rear brake configuration.

The 09.D532.13 rotors measure 360 mm in diameter and 26 mm in thickness and feature internally ventilated, two-piece Co-Cast construction. High-carbon material is designed to improve damping, reduce vibration and noise, and promote effective heat transfer. The coated rotor surface adds corrosion protection to exposed areas. The P50138 pads use PRIME low-metallic friction material and include pad accessories and preparation for an electronic wear indicator.

KT04523 is verified for the 2018 Mercedes-Benz E400, 2017-2018 E43 AMG, 2019-2022 E450, 2019-2022 E53 AMG, 2019-2021 CLS450, and 2019-2021 CLS53 AMG. The applicable vehicles use 3.0L turbocharged engines, with RWD or 4MATIC AWD depending on model and trim. Confirm the vehicle's rear brake configuration and 360 mm rotor specification before installation.
