Brembo KT00A98 Front Brake Kit for 2014-2020 Mercedes CLA250/GLA250

Vehicle Fitment

• 2014-2019 Mercedes-Benz CLA250 (C117, 2.0L I4 Turbo, FWD/4MATIC AWD, Base)
• 2015-2020 Mercedes-Benz GLA250 (X156, 2.0L I4 Turbo, FWD/4MATIC AWD, Base)

Fitment Notes

• Front axle brake kit.
• Requires the factory 320 mm x 30 mm front rotor configuration.
• CLA250 Base and 4MATIC configurations are included for 2014-2019.
• GLA250 Base and 4MATIC configurations are included for 2015-2020.
• Not for vehicles equipped with the Sport Package or a different front rotor configuration.
• Mercedes-Benz CLA250 and GLA250 use the 2.0L turbocharged four-cylinder engine for the verified applications.
• 2021-2026 applications are not included because this kit's verified coverage ends with the X156 GLA250 in 2020.
• Verify the factory front rotor dimensions and brake configuration before installation.

Features

• Brembo OE-equivalent front brake pad and rotor kit.
• Complete front-axle solution combining pads and rotors.
• Includes Brembo Premium NAO Ceramic brake pads.
• Includes Brembo Premium UV-Coated front rotors.
• 320 mm rotor diameter provides the specified front braking surface.
• 30 mm nominal rotor thickness matches the compatible factory configuration.
• 27.4 mm minimum thickness provides the specified service limit.
• Vented rotor construction promotes heat dissipation during braking.
• High-carbon cast-iron construction supports thermal stability and durability.
• UV coating helps protect exposed rotor surfaces against corrosion.
• NAO Ceramic friction material is designed for quiet, comfortable braking.
• Low-dust friction characteristics help reduce visible wheel contamination.
• OE-equivalent components are designed for direct replacement on compatible applications.

Specifications

• Brand: Brembo
• Part Number: KT00A98
• Product Type: Front Brake Pad and Rotor Kit
• Position: Front
• Rotor Part Number: 09.B807.41
• Brake Pad Part Number: P50093N
• Rotor Outside Diameter: 320 mm
• Rotor Nominal Thickness: 30 mm
• Rotor Minimum Thickness: 27.4 mm
• Rotor Overall Height: 51 mm
• Rotor Centering Diameter: 67 mm
• Rotor Mounting Holes: 5
• Rotor Type: Vented
• Rotor Construction: High-Carbon Cast Iron
• Rotor Surface: Plain
• Rotor Finish: UV Coated
• Brake Pad Material: Premium NAO Ceramic
• Brake Pad Application: OE Equivalent
• Rotor Tightening Torque: 130 Nm
• Rotor OE Reference: A2464212612

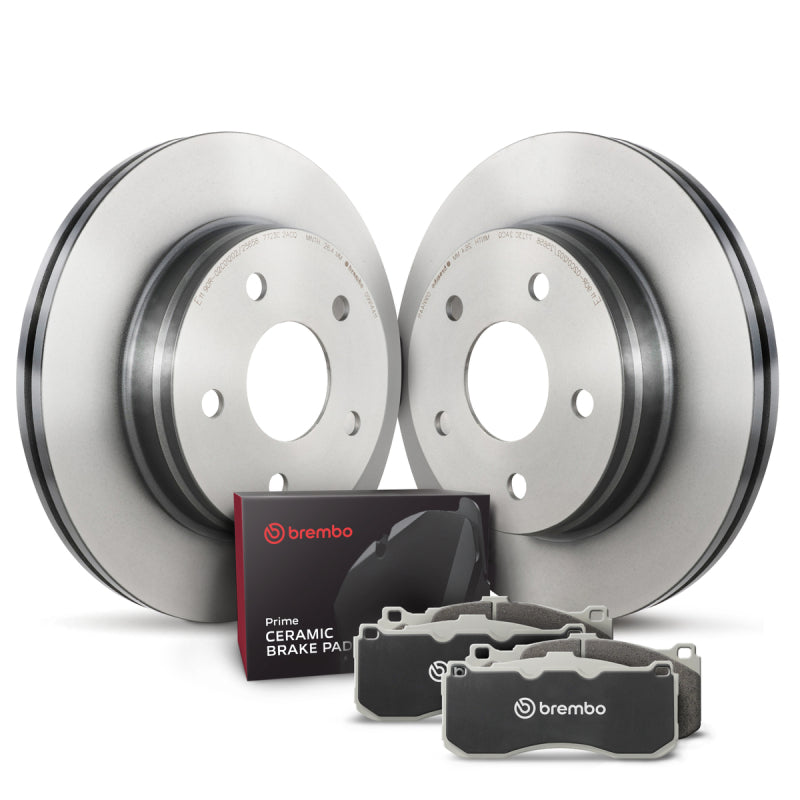

Included Components

• 2x Brembo 09.B807.41 Front Brake Rotors
• 1x Brembo P50093N Front Brake Pad Set

Product Description

The Brembo KT00A98 Front Brake Kit combines two 09.B807.41 Premium UV-Coated front brake rotors with a P50093N Premium NAO Ceramic brake pad set. Designed for compatible Mercedes-Benz CLA250 and GLA250 models using the 320 mm front brake configuration, the kit provides a matched solution for complete front-axle brake service.

The included 09.B807.41 rotors measure 320 mm in diameter and 30 mm in nominal thickness. They use high-carbon cast-iron construction, a vented design, and UV-coated surfaces for thermal performance and corrosion protection. The P50093N Premium NAO Ceramic pads are engineered for quiet operation, reduced vibration, and low visible brake dust while maintaining OE-equivalent fit and function.

KT00A98 is verified for 2014-2019 Mercedes-Benz CLA250 and 2015-2020 Mercedes-Benz GLA250 applications in Base and 4MATIC configurations. The applicable vehicles use a 2.0L turbocharged four-cylinder engine and the specified 320 mm x 30 mm front rotor. Sport Package and other configurations using a different front brake system are excluded. Confirm the original rotor dimensions and brake configuration before installation.
