Brembo KT04495 Front Brake Kit for 2012-2019 Mercedes-Benz ML63/GL63/GLE63/GLS63

Vehicle Fitment

• 2012-2015 Mercedes-Benz ML63 AMG (W166, 5.5L V8 Biturbo, AWD)
• 2013-2016 Mercedes-Benz GL63 AMG (X166, 5.5L V8 Biturbo, AWD)
• 2017-2019 Mercedes-Benz GLE63 AMG (W166, 5.5L V8 Biturbo, AWD)
• 2016-2019 Mercedes-Benz GLE63 AMG S (W166, 5.5L V8 Biturbo, AWD)
• 2017-2019 Mercedes-Benz GLS63 AMG (X166, 5.5L V8 Biturbo, AWD)

Fitment Notes

• Does not fit vehicles equipped with Ceramic Brake System (Option Code B07)
• Front axle application only - does not replace rear brake components
• Confirm brake caliper bolt pattern and rotor hat depth before installation

Features

• Drilled and slotted rotor surface improves bite and reduces heat buildup
• Pillar Vent Technology provides up to 40% more cooling efficiency
• High Carbon cast iron construction minimizes noise and vibration
• UV-coated finish protects the full disc surface against corrosion
• Low-Met brake pads formulated to match OEM friction and feel
• Perfectly matched pad and rotor combo for consistent, fade-resistant stopping
• All hardware and retaining screws included for a complete, tool-ready install
• Direct OE replacement - no modifications or drilling required

Specifications

• Position: Front
• Rotor Diameter: 390mm
• Rotor Type: Vented, Drilled, Slotted
• Rotor Finish: UV Coated (full disc including braking surface)
• Rotor Material: High Carbon Cast Iron
• Pad Compound: Low-Met (Semi-Metallic)
• Rotor Part Number: Brembo 09.B805.11
• Pad Part Number: Brembo P50127

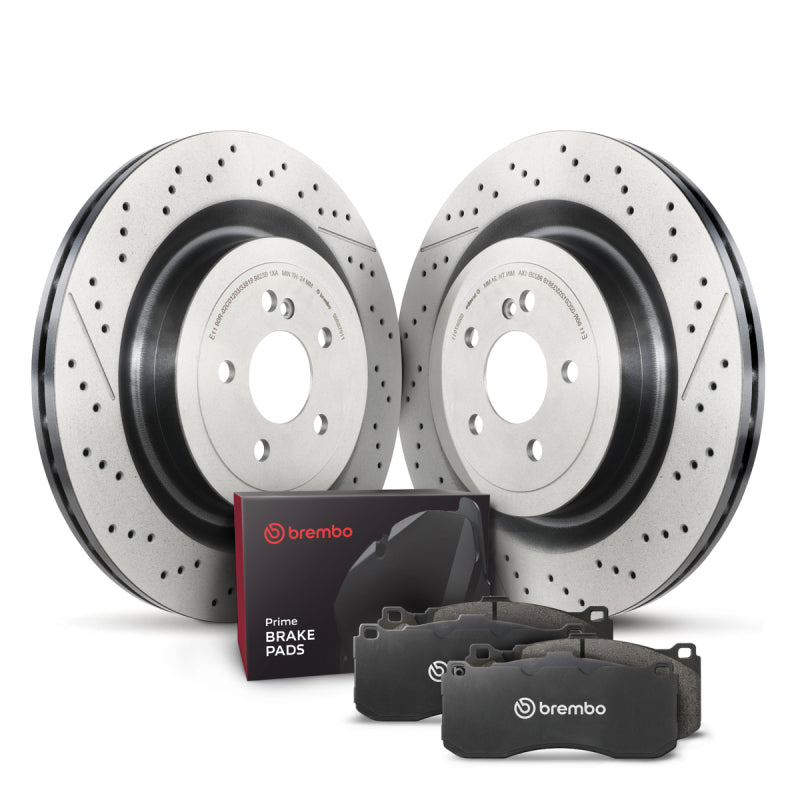

Included Components

• 2x Brembo 09.B805.11 Front Disc Brake Rotors (Drilled, Slotted, UV Coated, Vented, 390mm)
• 1x Brembo P50127 Front Disc Brake Pad Set (Low-Met)
• 1x Retaining Screw/Hardware Kit

Product Description

The Brembo KT04495 is a complete front brake kit engineered specifically for high-output AMG SUVs including the ML63, GL63, GLE63, GLE63 S, and GLS63 AMG. The kit pairs Brembo's 390mm drilled and slotted High Carbon rotors with Low-Met brake pads - the same materials and formulations used in original factory brake systems on these vehicles. Pillar Vent Technology built into the rotor design increases airflow through the disc, delivering up to 40% greater cooling versus standard cast rotors, which is critical under the high thermal loads generated by powerful AMG powertrains.

Installation is straightforward with no drilling, fabrication, or caliper changes needed. The full UV coating on the rotor - including the braking surface - provides long-lasting corrosion resistance, keeping the disc looking and performing like new well beyond initial break-in. All necessary mounting hardware is included in the box. This kit is ideal for drivers who want a direct factory-quality brake upgrade with improved heat management and longer service life on their W166 or X166 platform AMG SUV.
