Brembo KT04346 Rear Disc Kit for 2010-2020 Chrysler 300/Dodge Charger/Challenger

Vehicle Fitment

• 2010 Chrysler 300 (LX, 2.7L V6/3.5L V6/5.7L V8, RWD, applicable BR4 rear brake configuration)
• 2012-2014 Chrysler 300 (LX, 3.6L V6/5.7L V8/6.4L V8, RWD, applicable BR4 rear brake configuration)
• 2016-2020 Chrysler 300 (LX, 3.6L V6/5.7L V8, RWD/AWD, applicable BR4 rear brake configuration)
• 2010 Dodge Charger (LX, 2.7L V6/3.5L V6/5.7L V8/6.1L V8, RWD, applicable BR4 rear brake configuration)
• 2011-2020 Dodge Charger (LD, 3.6L V6/5.7L V8/6.4L V8/6.2L V8 Supercharged, RWD/AWD, applicable BR4 rear brake configuration)
• 2011-2020 Dodge Challenger (LC, 3.6L V6/5.7L V8/6.1L V8/6.4L V8/6.2L V8 Supercharged, RWD, applicable BR4 rear brake configuration)

Fitment Notes

• Rear axle disc brake kit consisting of Brembo 09.A182.21 rotors and P11024 low-metallic rear brake pads.
• Requires the BR4 Performance rear brake configuration with 350 mm rear rotors.
• 2010 Chrysler 300 and 2010 Dodge Charger applications require the specific compatible rear brake configuration.
• Chrysler 300 2011 and 2015 model years are not included in the verified KT04346 application coverage.
• Dodge Charger 2011-2020 applications include the listed RWD and applicable AWD configurations only where the BR4 brake system is installed.
• Dodge Challenger applications include SRT8, SRT 392, Hellcat, Scat Pack, Demon, Super Stock, and other listed trims when equipped with BR4 rear brakes.
• Verify the factory BR4 brake code and 350 mm rear rotor configuration before installation.
• 2021-2026 applications are not included because this specific kit's verified coverage ends with the 2020 model year.

Features

• Brembo PRIME low-metallic rear disc brake kit.
• Complete rear-axle replacement solution with pads and rotors.
• 350 mm rear rotor diameter provides the specified braking surface.
• 28 mm nominal rotor thickness matches the BR4 performance brake configuration.
• Ventilated rotor construction promotes heat dissipation during repeated braking.
• High-carbon cast-iron construction supports thermal stability and reduced vibration.
• UV-coated rotor finish provides corrosion protection on exposed surfaces.
• Pillar Venting Technology helps improve rotor cooling efficiency.
• PRIME low-metallic pads are formulated for OE-equivalent braking performance.
• Premium shims help reduce brake noise and vibration.
• Acoustic wear indication provides notification as the pads approach replacement condition.
• OE-equivalent design provides factory-style replacement fitment on compatible BR4 applications.

Specifications

• Brand: Brembo
• Part Number: KT04346
• Product Type: Rear Disc Brake Pad and Rotor Kit
• Position: Rear
• Rotor Part Number: 09.A182.21
• Brake Pad Part Number: P11024
• Rotor Diameter: 350 mm
• Rotor Thickness: 28 mm
• Rotor Minimum Thickness: 26 mm
• Rotor Height: 68 mm
• Rotor Centering Diameter: 73 mm
• Rotor Mounting Holes: 5
• Rotor Type: Ventilated
• Rotor Construction: High-Carbon Cast Iron
• Rotor Surface: Slotted
• Rotor Finish: UV Coated
• Brake Pad Material: PRIME Low-Metallic
• Pad Width: 109.8 mm
• Pad Height: 69.2 mm
• Pad Thickness: 14.8 mm
• Brake System: Brembo
• Wear Indicator: Acoustic
• FMSI: 7958-D1053

Included Components

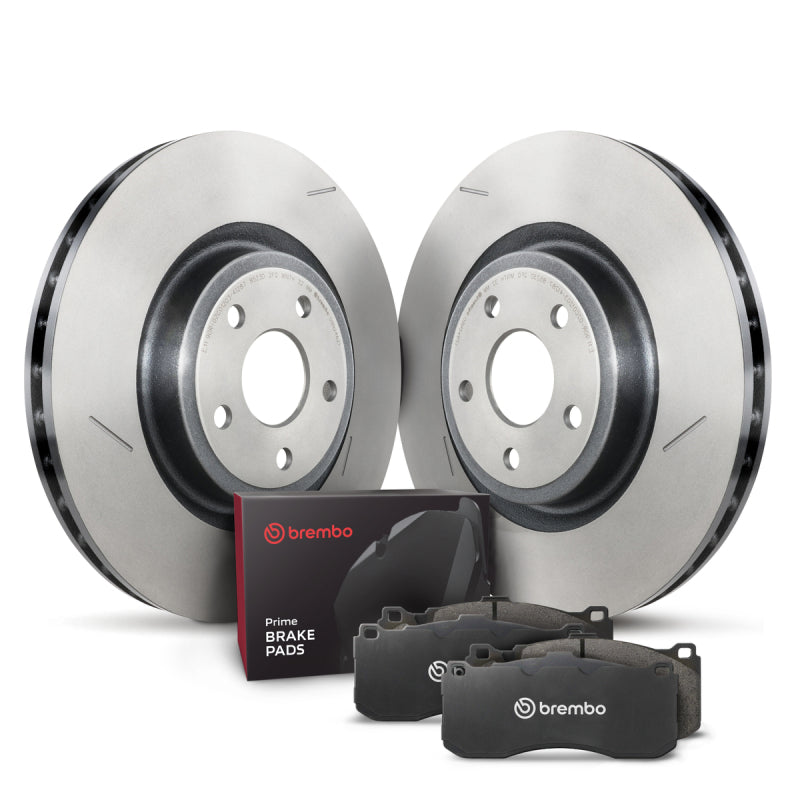

• 2x Brembo 09.A182.21 Rear Brake Rotors
• 1x Brembo P11024 Rear Brake Pad Set

Product Description

The Brembo KT04346 PRIME Rear Disc Brake Kit combines two 09.A182.21 UV-coated ventilated rear rotors with a P11024 PRIME low-metallic brake pad set. Designed for compatible Chrysler 300, Dodge Charger, and Dodge Challenger applications equipped with the BR4 performance rear brake system, the kit provides a matched solution for complete rear-axle brake service.

The 09.A182.21 rotors measure 350 mm in diameter, 28 mm in nominal thickness, and 68 mm in height, with a 73 mm center bore and five mounting holes. High-carbon cast-iron construction supports heat conduction and vibration damping, while the ventilated design promotes cooling. Brembo's UV coating protects exposed surfaces against corrosion, and the slotted friction surface supports consistent pad contact.

The P11024 PRIME low-metallic pads measure 109.8 mm wide, 69.2 mm high, and 14.8 mm thick. Brembo specifies an OE-equivalent low-metallic formulation with premium shims and an acoustic wear indicator. KT04346 is verified for selected 2010-2020 Chrysler 300, 2010-2020 Dodge Charger, and 2011-2020 Dodge Challenger applications. Confirm the vehicle's BR4 brake code and 350 mm rear rotor configuration before installation.
