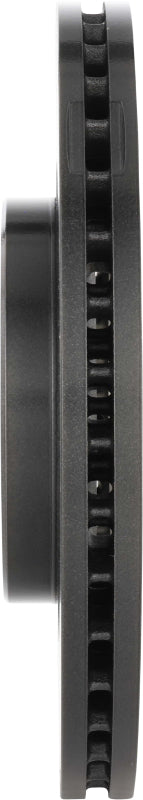

Brembo 09.D761.11 Front Rotor for 2019-2022 Mercedes-Benz G550 4.0L V8

Vehicle Fitment

• 2019-2022 Mercedes-Benz G550 (W463, 4.0L V8 Twin-Turbo, 4Matic AWD, Base)

Fitment Notes

• Front axle application.
• Designed for the standard G550 front brake configuration using the 355 mm rotor.
• 4Matic all-wheel drive configuration.
• Not for Mercedes-Benz G63 AMG applications, which use a different high-performance front brake system.
• Verify the original rotor dimensions and OE brake configuration before installation.
• Replace front rotors in axle pairs for balanced braking performance.

Features

• Brembo Prime Line OE-equivalent replacement front brake rotor.
• 355 mm outside diameter provides the specified braking surface.
• 32 mm nominal thickness matches the compatible factory brake configuration.
• 29.4 mm minimum thickness defines the specified service limit.
• Ventilated construction promotes heat dissipation during repeated braking.
• PVT pillar ventilation technology supports efficient thermal management.
• High-carbon cast-iron construction provides thermal stability and durability.
• UV-coated surface provides enhanced corrosion protection.
• 85 mm centering diameter matches the specified Mercedes-Benz hub interface.
• Five-hole mounting configuration matches the compatible G550 hub.
• OE-equivalent design requires no modifications when correctly matched to the vehicle.
• ECE-R90 type-approved Brembo Prime design.

Specifications

• Brand: Brembo
• Part Number: 09.D761.11
• Product Line: Prime
• Product Type: Brake Disc Rotor
• Position: Front
• Fitting Side: Left/Right
• Outside Diameter: 355 mm
• Nominal Thickness: 32 mm
• Minimum Thickness: 29.4 mm
• Overall Height: 56.7 mm
• Centering Diameter: 85 mm
• Mounting Holes: 5
• Brake Disc Type: Ventilated
• Ventilation Technology: PVT
• Material: High-Carbon Cast Iron
• Surface Type: Smooth
• Surface Treatment: UV Coated
• Construction: Full Cast
• ECE-R90 Type Approved: Yes
• OE Reference: 4634210000
• EAN: 8020584313121
• Units Per Box: 1x

Included Components

• 1x Brembo 09.D761.11 Front Brake Rotor
• 1x Fixing Screw Kit

Product Description

The Brembo 09.D761.11 Prime Front Brake Rotor is an OE-equivalent replacement designed for the 2019-2022 Mercedes-Benz G550 W463 equipped with the 4.0L V8 Twin-Turbo engine and 4Matic all-wheel drive. Measuring 355 mm in diameter and 32 mm in nominal thickness, this ventilated front rotor is engineered around the factory brake dimensions for the compatible G550 configuration.

Brembo uses high-carbon cast iron and PVT pillar ventilation technology to support thermal stability and efficient heat dissipation during repeated braking. The rotor features an 85 mm center bore, five mounting holes, 56.7 mm overall height, and 29.4 mm minimum thickness. A UV protective coating helps protect the hub and outer edges against corrosion, while the Prime design is ECE-R90 type approved.

The 09.D761.11 is supplied individually with the required fixing screw hardware and can be installed on either front side when the vehicle uses the specified 355 mm brake configuration. It is not intended for G63 AMG models with their different high-performance braking system. Verify the factory rotor dimensions and brake configuration before installation, and replace front rotors in axle pairs for balanced braking performance.
