Brembo 09.E232.11 UV Coated Vented Front Rotor for Honda Odyssey/Pilot/Passport

Vehicle Fitment

• 2011-2023 Honda Odyssey (LX, EX, EX-L, Touring, Touring Elite, Elite, 3.5L V6, FWD)
• 2016-2022 Honda Pilot (LX, EX, EX-L, Touring, Elite, Black Edition, Special Edition, 3.5L V6, FWD/AWD)
• 2019-2023 Honda Passport (Sport, EX-L, Touring, Elite, TrailSport, 3.5L V6, FWD/AWD)
• 2017-2023 Honda Ridgeline (Sport, RTL, RTL-E, Black Edition, 3.5L V6, FWD/AWD)
• 2014-2020 Acura MDX (Base, SH-AWD, Sport Hybrid, 3.5L V6, FWD/AWD)

Fitment Notes

• Fits vehicles equipped with a 320mm diameter front brake rotor - verify rotor diameter before ordering.
• Honda OE part numbers replaced: 45251TK8A00, 45251TK8A01, 45251TK8A02, and 45251T3RA00.
• Sold individually (1 rotor per pack) - order two for a complete front axle replacement.

Features

• Full UV anti-corrosion coating protects the entire rotor surface, including internal venting chambers, for long-lasting appearance and durability.
• Vented disc design promotes superior heat dissipation, reducing brake fade under heavy or repeated braking loads.
• High-carbon grey cast iron construction minimizes noise, vibration, and harshness for a refined driving experience.
• ECE R-90 certified - meets or exceeds original equipment safety and performance standards.
• Precision-machined braking surface delivers consistent pad contact and reduces the risk of thickness variation or pulsation.
• Electronically balanced at the factory for smooth, vibration-free performance right out of the box.
• Solvent-free UV coating process reduces energy consumption by up to 98% versus conventional coating methods.
• Intelligent hub marking shows part number and minimum discard thickness for easy service reference.

Specifications

• Position: Front (Left or Right)
• Rotor Type: Vented
• Rotor Construction: Composite, 1-Piece
• Rotor Material: Grey Cast Iron
• Outer Diameter: 320.04mm (12.6")
• Nominal Thickness: 28mm (1.1")
• Minimum Discard Thickness: 26mm (1.02")
• Hub Height: 46.99mm (1.85")
• Bolt Circle: 5 x 120mm
• Lug Holes: 5
• Surface Finish: Smooth, UV Coated
• ABS Tone Ring: Not Included
• Replaces Honda OE#: 45251TK8A00 / 45251TK8A01 / 45251TK8A02 / 45251T3RA00
• Units Per Pack: 1

Included Components

• 1x Brembo PRIME UV Coated Front Brake Rotor (09.E232.11)
• 1x Fixing Screw / Hardware Kit

Product Description

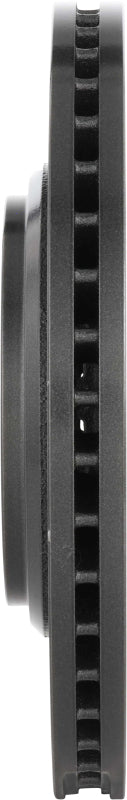

The Brembo 09.E232.11 is a PRIME UV Coated, vented front brake rotor engineered as a direct OE replacement for a broad range of Honda and Acura SUVs and minivans, including the Odyssey (2011-2023), Pilot (2016-2022), Passport (2019-2023), Ridgeline (2017-2023), and Acura MDX (2014-2020). It replaces multiple Honda OE part numbers including 45251TK8A02, making it a verified fit across all standard trim levels on the supported platforms.

Built from high-carbon grey cast iron and finished with Brembo's solvent-free UV coating, this rotor delivers excellent corrosion resistance, reduced NVH, and consistent stopping power. The vented design manages heat effectively across the demanding stop-and-go and highway driving conditions typical for these larger vehicles. Each rotor is electronically balanced and ECE R-90 certified, arriving ready to install with all necessary hardware included. Sold individually - two are required for a complete front axle service.
