Brembo KT00820 OE Front 325mm Disc Brake Kit for 2016-2020 Jaguar XE/XF

Vehicle Fitment

• 2017-2020 Jaguar XE (X760), RWD/AWD, Front, 325mm disc package
• 2016-2020 Jaguar XF (X260), RWD/AWD, Front, 325mm disc package

Fitment Notes

• For vehicles equipped with the standard 325mm front brake package only; does not fit XE or XF variants with the 350mm front rotor option
• Verify rotor diameter by VIN before ordering, as multiple front brake packages were offered

Features

• Complete front axle kit: ceramic pads and UV-coated vented rotors matched for fitment and performance
• Ceramic pad compound minimizes noise and vibration for driving comfort
• Reduced friction wear and dust emission keeps wheels cleaner
• High-carbon cast iron rotor construction improves heat conduction and shortens cooling times
• OE-equivalent design, meets or exceeds original material specs
• ECE-R90 type-approved for road use
• All required installation hardware included in the box
• Ready-to-install kit, no separate parts sourcing required

Specifications

• Position: Front
• Disc Type: Vented
• Diameter: 325mm
• New Thickness: 30mm
• Minimum Thickness: 28mm
• Bolt Holes: 5
• Centering Bore: 64mm
• Height: 48mm
• Pad Compound: Ceramic

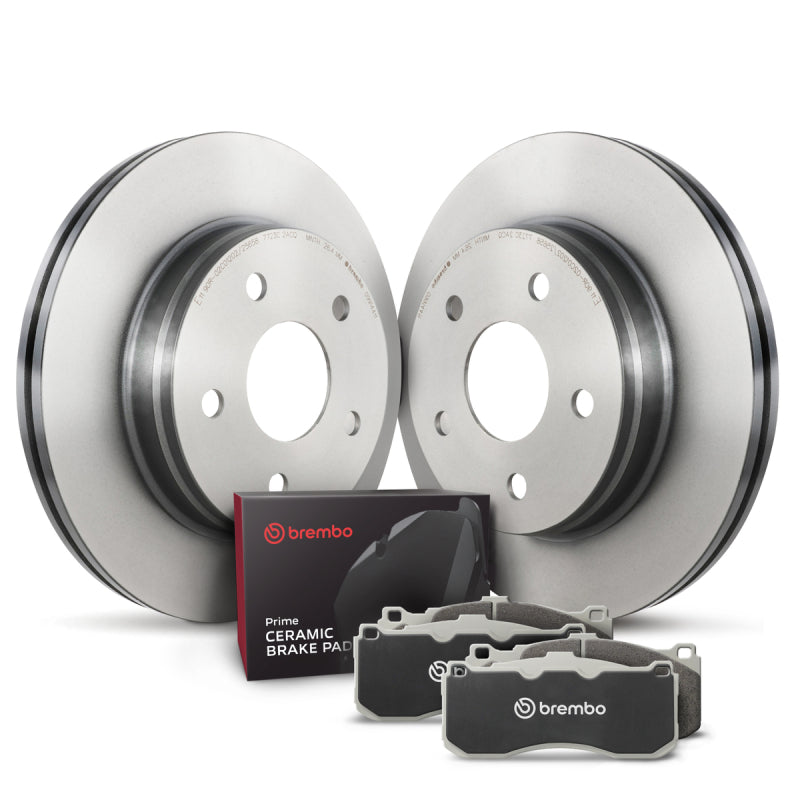

Included Components

• 2x Brembo Front Brake Rotors (325mm, Vented)
• 1x Brembo Ceramic Front Brake Pad Set
• Installation hardware

Product Description

The Brembo KT00820 is a complete front brake kit pairing UV-coated 325mm vented rotors with ceramic brake pads, engineered as a direct OE-equivalent replacement for the Jaguar XE and XF. Supplying matched components in one box removes the guesswork from sourcing compatible rotors and pads separately.

The ceramic pad formulation minimizes noise and vibration while reducing dust emission for cleaner wheels, and the high-carbon cast iron rotor construction improves heat conduction for better driving comfort and consistent stopping performance.

This kit suits XE and XF owners replacing worn front brake components who want a reliable, ready-to-install solution matching original equipment specifications, with all necessary hardware included for straightforward installation.
