Brembo KT04334 Rear Low-Met Brake Pads UV Coated Rotors for 17-23 Jaguar F-Pace

Vehicle Fitment

• 2017-2020 Jaguar F-Pace (X761, 2.0L I4 Turbo / 3.0L V6 Supercharged, AWD)
• 2019-2020 Jaguar I-Pace (X590, Electric, AWD)
• 2018-2019 Land Rover Discovery Sport (L550, 2.0L I4 Turbo, AWD)
• 2021-2023 Land Rover Discovery Sport (L550, 2.0L I4 Turbo / 2.0L I4 MHEV, AWD)
• 2019-2020 Land Rover Range Rover Velar (L560, 2.0L I4 Turbo, AWD)

Fitment Notes

• Rear axle application only
• Equipped with Teves brake system - verify brake system type before ordering
• Does not fit Jaguar F-Pace SVR or F-Pace models equipped with larger performance rear brake packages
• Does not fit 2020 Land Rover Discovery Sport (gap year between L550 generations - confirm model year and brake rotor diameter)
• Fitment varies by trim, engine, and brake option code - confirm 300mm rear rotor diameter matches your vehicle before ordering
• Does not fit Volvo models despite shared pad compatibility - rotor specification differs

Features

• Complete rear brake pad and rotor kit - precision-matched Brembo components in a single box for optimal braking performance
• Brembo Prime Low-Met brake pads deliver OE-equivalent performance with patented friction materials and premium shim technology
• UV Coated rotors provide environmentally friendly, solvent-free corrosion protection across the entire disc surface including internal venting chambers
• High Carbon cast iron rotor construction offers a higher damping coefficient for reduced vibration, noise, and improved braking comfort
• Superior heat conduction properties allow faster transfer of heat from braking surfaces, shortening cooling times under heavy use
• Low-Met formulation delivers strong braking performance in all driving conditions with ECE R-90 approval
• Premium stainless-steel hardware and lubricant included for a complete, professional-grade installation
• Fixing screw kit included with rotors for straightforward, worry-free bolt-on replacement
• Pads are thermal scorched at the factory to minimize break-in requirements and initial fade

Specifications

• Position: Rear
• Rotor Diameter: 300mm (11.81 in.)
• Rotor Type: Vented
• Rotor Surface: Solid (Non-Drilled)
• Rotor Material: High Carbon Cast Iron
• Rotor Coating: UV Coated
• Rotor Part Number: 09.C209.11
• Brake Pad Material: Low-Met
• Brake Pad Part Number: P86029
• Brake System: Teves
• OE Reference (Rotor): LR090699
• OE Reference (Pads): T2H7439, LR061385, 31471265
• Lug Count: 5
• Kit Type: OE Replacement

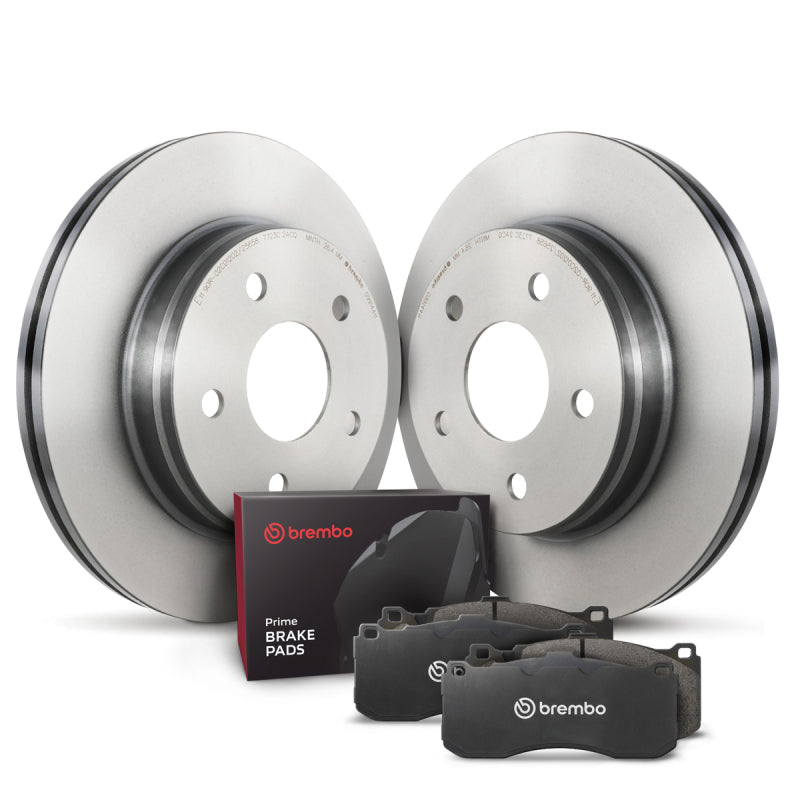

Included Components

• 2x Brembo 09.C209.11 Rear Disc Brake Rotors (UV Coated, Vented, 300mm)
• 1x Brembo P86029 Rear Low-Met Brake Pad Set
• 1x Fixing Screw Kit
• 1x Premium Stainless-Steel Hardware and Lubricant Kit

Product Description

The Brembo KT04334 is a complete rear disc brake pad and rotor kit engineered for select Jaguar and Land Rover vehicles, including the F-Pace, I-Pace, Discovery Sport, and Range Rover Velar. This kit combines Brembo's Prime Low-Met brake pads with UV coated, high carbon cast iron rotors, delivering a comprehensive rear brake service solution that meets or exceeds original equipment specifications. Every component is carefully matched to ensure consistent, confident braking across all driving conditions - from highway cruising to spirited driving on winding roads.

The Low-Met pad formulation is specifically engineered for the North American market, offering strong stopping power with reduced noise and smooth pedal modulation. Brembo's patented shim technology dampens vibration at the pad-to-caliper interface, resulting in quieter operation compared to many aftermarket alternatives. The 300mm vented rear rotors are constructed from elevated carbon content cast iron, which provides superior thermal stability, enhanced damping characteristics, and better resistance to warping under repeated hard braking. The UV coating protects the entire rotor - including the internal ventilation chambers - against corrosion right out of the box, eliminating the need for any pre-installation surface preparation.

This kit is designed as a direct bolt-on replacement for vehicles equipped with the Teves rear brake system and 300mm rear rotors. All necessary hardware, including fixing screws and premium lubricant, is included for a straightforward installation. The Brembo KT04334 is an ideal solution for owners of the Jaguar F-Pace, I-Pace, Land Rover Discovery Sport, and Range Rover Velar who want to restore factory-level braking performance with trusted, OE-quality components in a single convenient package.
