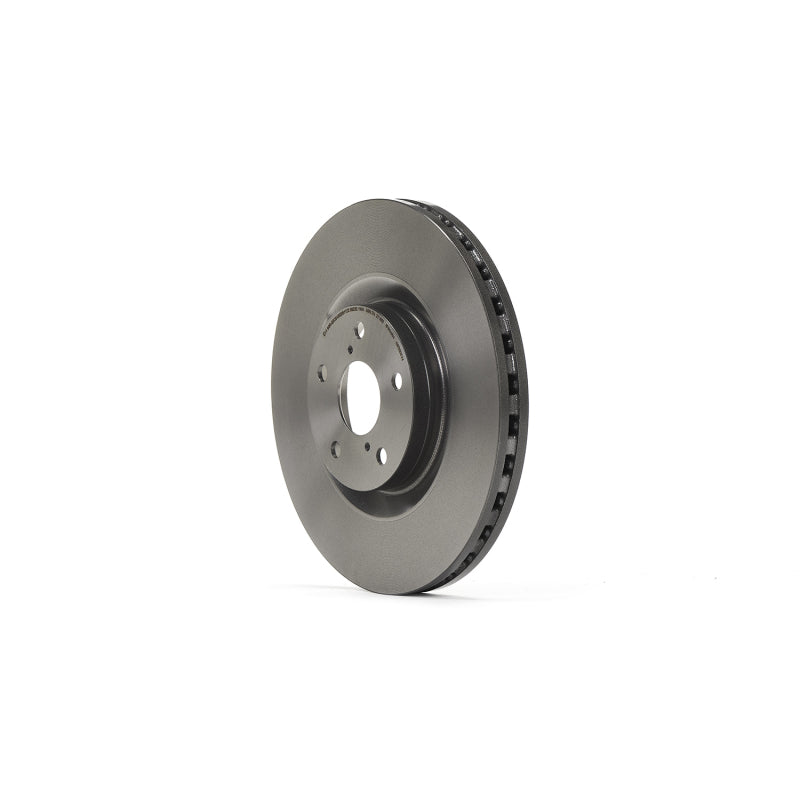

Brembo 09.D507.11 Front Rotor for 2011-2024 Lexus GS/IS/RC

Vehicle Fitment

• 2011-2020 Lexus GS350 (S19, 3.5L V6, RWD; applicable AWD configurations)
• 2013-2020 Lexus GS350 F Sport (S19, 3.5L V6, RWD/AWD)
• 2011-2018 Lexus GS450h (S19, 3.5L V6 Hybrid, RWD)
• 2011 Lexus GS460 (S19, 4.6L V8, RWD)
• 2016-2017 Lexus GS200t (S19, 2.0L Turbo I4, RWD)
• 2018-2019 Lexus GS300 (S19, 2.0L Turbo I4, RWD)
• 2011-2020 Lexus IS350 (XE30, 3.5L V6, RWD/AWD)
• 2011-2015 Lexus IS350 C (XE20, 3.5L V6, RWD)
• 2014-2015 Lexus IS350 C F Sport (XE20, 3.5L V6, RWD)
• 2014-2024 Lexus IS350 F Sport (XE30, 3.5L V6, RWD/AWD)
• 2016-2017 Lexus IS200t (XE30, 2.0L Turbo I4, RWD)
• 2016-2024 Lexus IS300 (XE30, 2.0L Turbo I4/3.5L V6, RWD/AWD where equipped)
• 2016-2017 Lexus RC200t (C10, 2.0L Turbo I4, RWD)
• 2016-2024 Lexus RC300 (C10, 2.0L Turbo I4/3.5L V6, RWD/AWD where equipped)
• 2015-2024 Lexus RC350 (C10, 3.5L V6, RWD/AWD where equipped)

Fitment Notes

• Front axle application only.
• Fitment requires the vehicle to use the 334 mm x 30 mm front brake configuration.
• Some Lexus models and trims use different front rotor sizes; verify the factory brake configuration before ordering.
• AWD and RWD configurations can use different brake configurations depending on model, trim, and model year.
• F Sport, C, and other performance-oriented trims require confirmation of the 334 mm factory front rotor specification.
• 2025-2026 applications are not included because complete part-specific fitment could not be sufficiently verified.
• Replace front rotors in axle pairs for balanced braking performance.

Features

• Brembo Prime Line OE-equivalent replacement front brake rotor.
• 334 mm outside diameter provides the specified braking surface.
• 30 mm nominal thickness matches the applicable factory brake configuration.
• 27 mm minimum thickness defines the specified service limit.
• Internally ventilated construction promotes effective heat dissipation.
• PVT pillar ventilation technology improves cooling efficiency and thermal resistance.
• High-carbon cast-iron construction provides strength and thermal stability.
• UV-coated surface provides enhanced corrosion protection.
• 62 mm centering diameter provides the specified hub interface.
• Five-hole mounting pattern matches compatible Lexus applications.
• OE-equivalent design requires no modifications when correctly matched to the vehicle.
• ECE-R90 type-approved Brembo Prime design.

Specifications

• Brand: Brembo
• Part Number: 09.D507.11
• Product Line: Prime
• Product Type: Brake Disc Rotor
• Position: Front
• Outside Diameter: 334 mm
• Nominal Thickness: 30 mm
• Minimum Thickness: 27 mm
• Overall Height: 51 mm
• Centering Diameter: 62 mm
• Mounting Holes: 5
• Brake Disc Type: Ventilated
• Ventilation Technology: PVT
• Material: High-Carbon Cast Iron
• Surface Type: Plain
• Surface Treatment: UV Coated
• Construction: One-Piece
• ECE-R90 Type Approved: Yes
• EAN: 8020584310281
• OE References: 4351230350, 4351230351, 4351630040, 4351630041

Included Components

• 1x Brembo 09.D507.11 Front Brake Rotor
• 1x Fixing Screw Kit

Product Description

The Brembo 09.D507.11 Prime Front Brake Rotor is an OE-equivalent replacement designed for selected Lexus GS, IS, and RC applications using the 334 mm front brake configuration. Measuring 334 mm in diameter and 30 mm in nominal thickness, this internally ventilated rotor is engineered to restore the factory braking dimensions and provide consistent braking performance on compatible Lexus vehicles.

Brembo uses high-carbon cast iron with PVT ventilation technology to provide effective thermal management during repeated braking. The rotor features a 62 mm centering diameter, five-hole mounting pattern, 51 mm overall height, and 27 mm minimum thickness. Its UV coating protects the exposed surfaces against corrosion while allowing the rotor to be installed without removing a conventional protective coating.

The 09.D507.11 is used across selected GS, IS, and RC configurations, including GS200t, GS300, GS350, GS450h, GS460, IS200t, IS300, IS350, RC200t, RC300, and RC350 applications. Because Lexus offered multiple brake packages and drivetrain configurations across these platforms, the vehicle must have the compatible 334 mm front rotor specification before installation. The rotor is supplied individually with fixing hardware.
