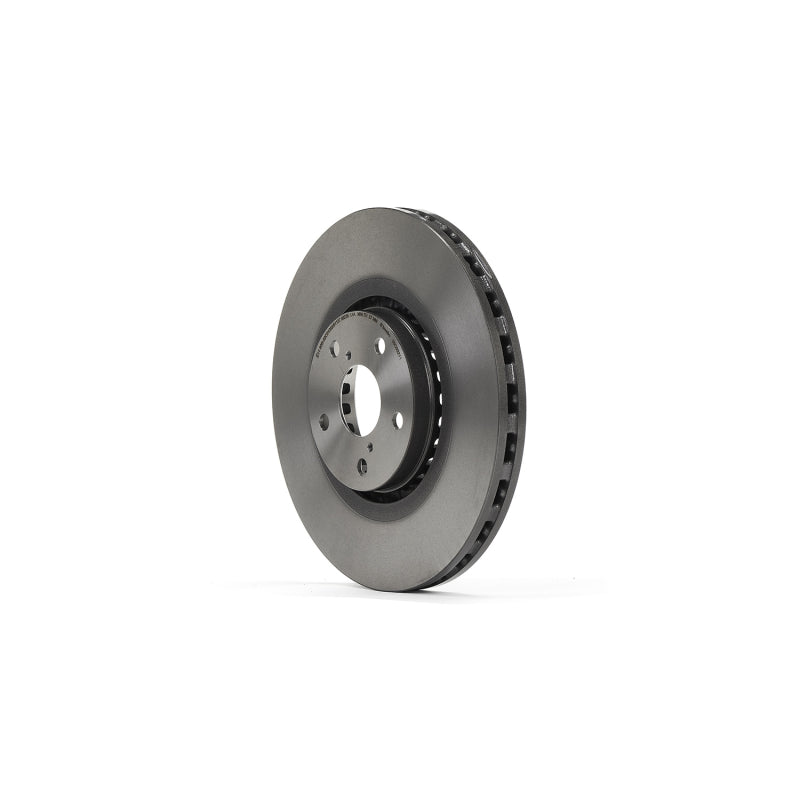

Brembo 09.C932.11 UV Coated PVT Front Brake Rotor for Lexus GS/IS/RC 334mm 5-Lug

Vehicle Fitment

• 2006-2007 Lexus GS430, 4.3L V8, RWD
• 2007-2011 Lexus GS350, 3.5L V6, RWD; 2013-2020 Lexus GS350, 3.5L V6, RWD & AWD
• 2007-2011 Lexus GS450h, 3.5L V6 Hybrid, RWD; 2013-2018 Lexus GS450h, RWD
• 2008-2011 Lexus GS460, 4.6L V8, RWD
• 2016-2017 Lexus GS200t, 2.0L I4 Turbo, RWD
• 2018-2019 Lexus GS300, 2.0L I4 Turbo, RWD
• 2006-2021 Lexus IS350, 3.5L V6, RWD & AWD - Base & non-F Sport trims
• 2016-2024 Lexus IS300, 2.0L I4 Turbo / 3.5L V6, RWD & AWD
• 2016-2017 Lexus IS200t, 2.0L I4 Turbo, RWD
• 2015-2024 Lexus RC350, 3.5L V6, RWD
• 2016-2021 Lexus RC300, 2.0L I4 Turbo, RWD
• 2016-2017 Lexus RC200t, 2.0L I4 Turbo, RWD

Fitment Notes

• Fits front axle only - sold as one (1) rotor per unit; purchase two for a complete front axle replacement.
• Compatible with Lexus/Toyota OE part numbers including 43512-22260, 43512-22261, 43512-30370, 43512-30371, 43516-22010, 43516-22011, 43516-30060, 43516-30061, 43516-53030, and 43512-53050.
• This rotor fits models with a 334mm (13.15 in) front disc and standard (non-F Sport) 4-piston front calipers. IS350, GS350, and RC models equipped with the F Sport brake package use a larger or different front rotor - verify via VIN before ordering.
• Does NOT fit the Lexus IS-F, GS-F, or RC-F - those performance models use dedicated high-performance Brembo brake packages with larger rotors.
• Confirm your vehicle's front rotor diameter (334mm) and caliper type before purchasing, as brake specifications can vary within the same model line based on trim and option packages.

Features

• Pillar Venting Technology (PVT) increases airflow through the rotor, improving resistance to thermal cracking by over 40% versus conventional vane designs - important for the performance character of Lexus GS, IS, and RC platforms.
• Full UV coating across all rotor surfaces - including internal ventilation channels - provides superior corrosion resistance and is ready to install straight from the box.
• High-carbon cast iron construction minimizes noise and vibration for quiet, refined braking consistent with Lexus' luxury character.
• Precision-machined to Brembo's strict dimensional tolerance values, minimizing lateral runout and delivering consistent, fade-free pedal response.
• Direct OE-equivalent replacement - meets or exceeds Lexus and Toyota factory specifications with no modifications required.
• ECE-R90 certified, meeting strict European safety and quality standards for replacement brake discs.
• Part number and minimum thickness stamped directly on the rotor for quick service identification.
• All required fixing hardware included for straightforward professional installation.

Specifications

• Position: Front Axle
• Outer Diameter: 334 mm (13.15 in)
• Nominal Thickness: 30 mm
• Minimum Thickness: 27 mm
• Height: 51 mm
• Centering Diameter: 62 mm
• Number of Bolt Holes: 5
• Disc Type: Internally Vented, Smooth Finish
• Venting Design: Brembo PVT (Pillar Venting Technology)
• Surface: UV Coated (PRIME Line)
• Material: High-Carbon Cast Iron
• OE Part Numbers: 43512-22260, 43512-30371, 43516-22010, 43516-30060 and related supersessions (Lexus/Toyota)

Included Components

• 1x Brembo UV Coated PVT Front Brake Disc (09.C932.11)
• 1x Fixing Screw Kit (all required installation hardware)

Product Description

The Brembo 09.C932.11 is a UV-coated, Pillar-Vented 334mm front brake rotor engineered as a direct OE replacement across Lexus GS, IS, and RC model lines spanning 2006 through 2024. Covering a wide range of powertrains - from the naturally aspirated GS430 V8 to the turbocharged IS300 and the GS450h hybrid - this single rotor serves as the factory-correct front disc for the standard 4-piston caliper brake package. Built to Lexus/Toyota OE specifications and cross-referencing Lexus part numbers 43512-30370/43516-30060 among others, it installs without modification.

Full UV coating across the entire disc - including the internal ventilation channels - prevents corrosion and maintains the clean appearance expected behind Lexus wheels. Brembo's Pillar Venting Technology improves heat management over conventional vaned designs for consistent braking performance in daily driving and spirited use alike. Always confirm your specific model's front rotor size (334mm) and caliper type before ordering - F Sport, IS-F, GS-F, and RC-F variants use dedicated performance brake packages with different rotor specifications.
