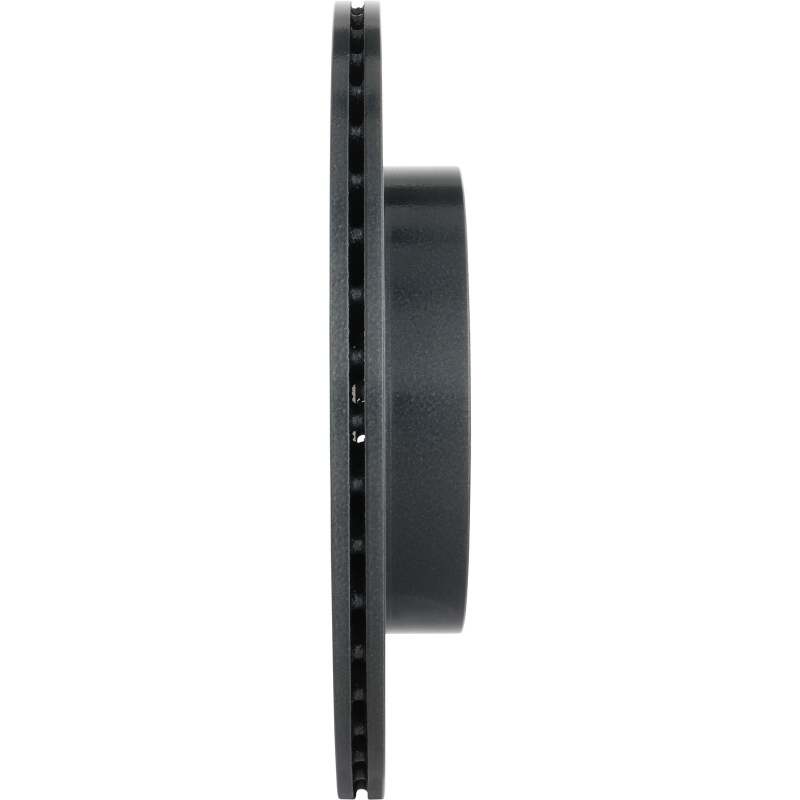

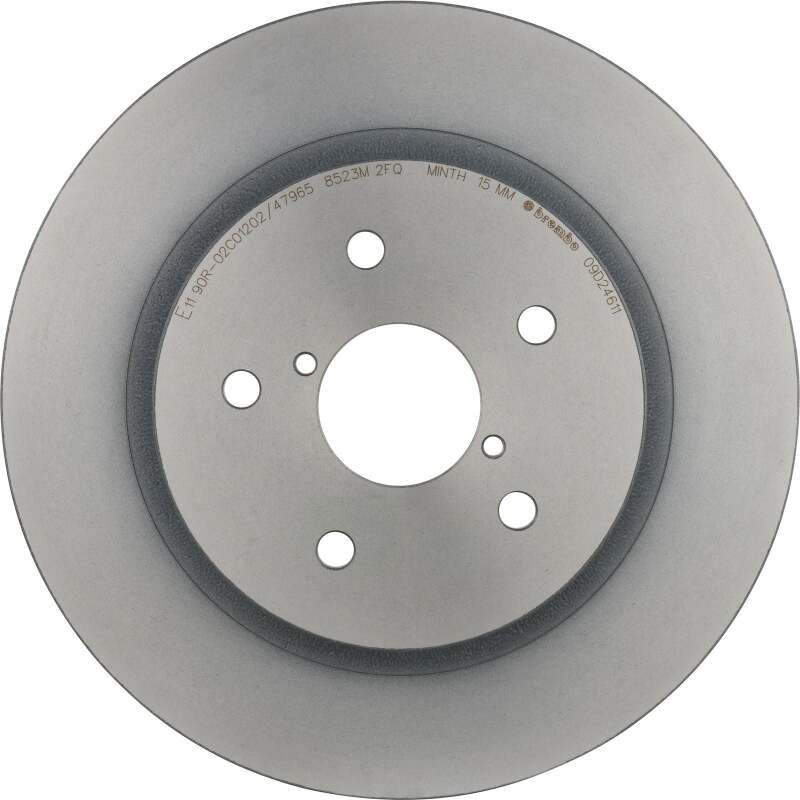

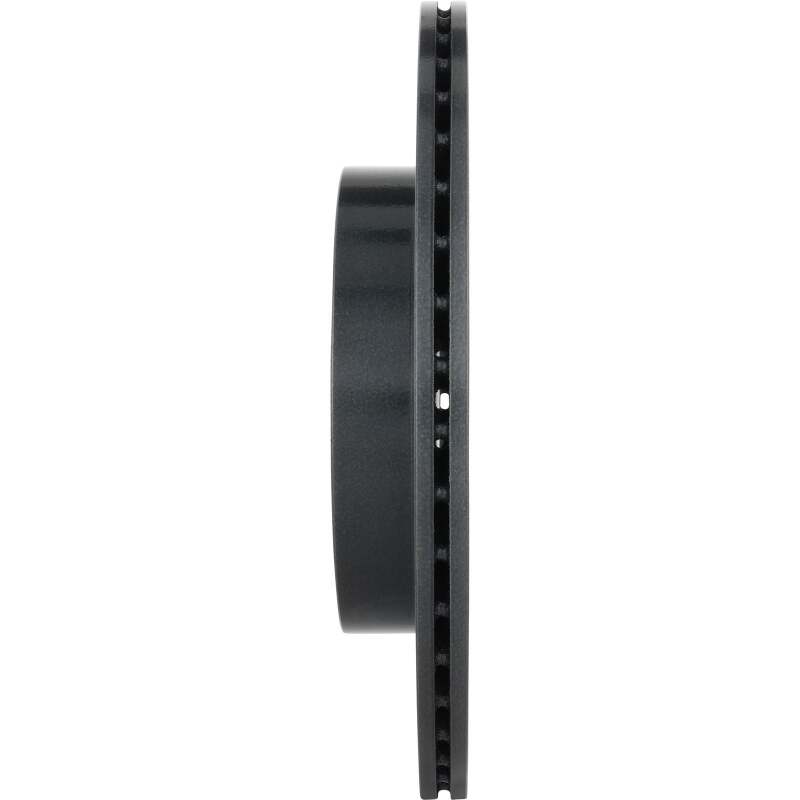

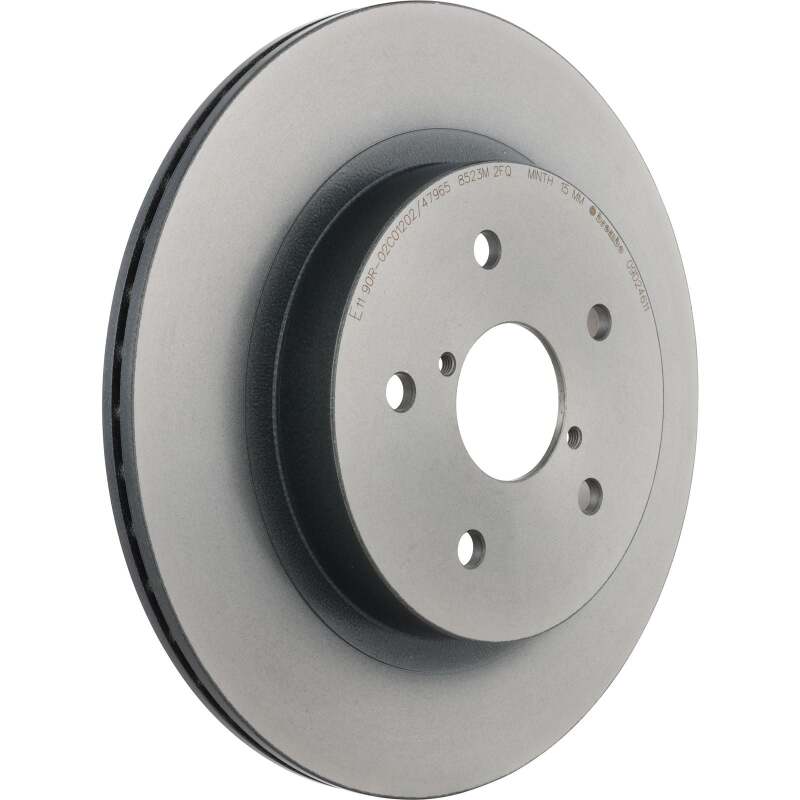

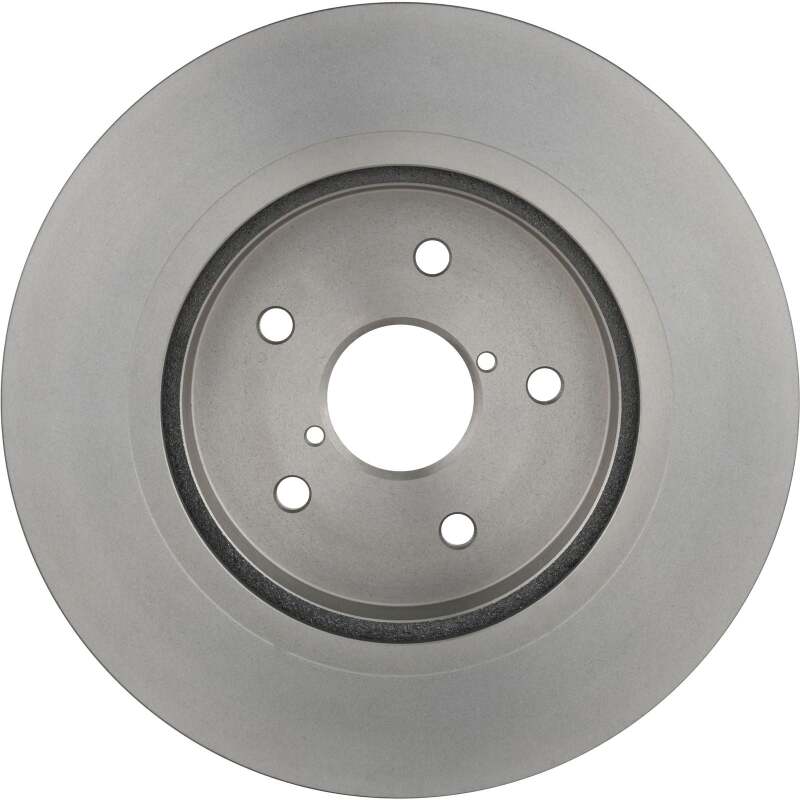

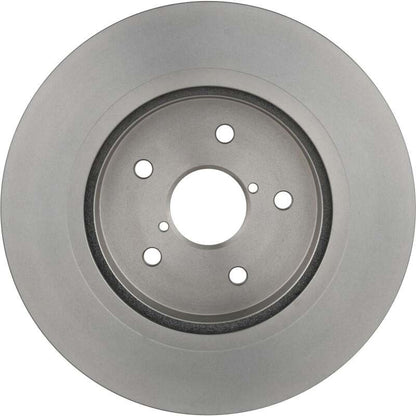

Brembo 09.D246.11 UV Coated Rear Rotor for 2015-2023 Subaru WRX/Legacy/Outback

Vehicle Fitment

• 2015-2016 Subaru Legacy (2.5i, 2.5i Premium, 2.5i Limited, 3.6R Limited), 2.5L H4 / 3.6L H6, AWD
• 2015-2016 Subaru Outback (2.5i, 2.5i Premium, 2.5i Limited, 3.6R Limited), 2.5L H4 / 3.6L H6, AWD
• 2016-2023 Subaru WRX (Base, Premium, Limited, CVT), 2.0L H4 Turbo, AWD
• 2014-2020 Subaru Levorg (VM/VN), 1.6L / 2.0L, AWD

Fitment Notes

• Does not fit Subaru WRX STI - STI uses a larger, separate rear brake specification
• WRX fitment applies to VA-chassis (2016-2021) and confirmed applications through 2023; verify VIN for 2022-2023 VB-chassis WRX compatibility before ordering
• Subaru OE notes indicate this rotor applies to automatic/CVT transmission variants for select WRX trims - confirm transmission type if ordering for manual WRX
• Sold as a single rotor (1x per box); two required per axle

Features

• OE-equivalent design engineered to meet or exceed Subaru factory specifications
• UV coating protects the full rotor surface, including internal ventilation chambers, from corrosion
• High-carbon cast iron construction reduces vibration and noise for a quieter, more comfortable ride
• Internally vented design promotes effective heat dissipation and fade resistance under repeated braking
• ECE R-90 certified for safety and performance compliance
• Electronically balanced at the factory to minimize runout and vibration out of the box
• Intelligent part number and minimum thickness markings engraved directly on the disc for easy inspection
• No modifications required - direct bolt-on replacement for OE fitment

Specifications

• Position: Rear Axle (Left or Right)
• Disc Type: Internally Vented
• Surface: UV Coated
• Diameter: 300mm
• Thickness: 17mm
• Minimum Thickness: 15mm
• Height (Hat): 47mm
• Centering Diameter: 58mm
• Number of Bolt Holes: 5
• Bolt Hole Circle: 5x114.3mm
• OE Reference Numbers: 26700AL010, 26700AL03A (Subaru)
• EAN Code: 8020584236239

Included Components

• 1x Brembo Prime UV Coated Rear Brake Rotor (09.D246.11)
• 1x Fixing screw kit with all hardware required for installation

Product Description

The Brembo 09.D246.11 is a Prime Line OE-equivalent rear brake rotor built as a direct replacement for Subaru's OE part 26700AL010, fitted to the Legacy, Outback, WRX, and Levorg. Manufactured with high-carbon cast iron and finished with Brembo's solvent-free UV coating, this rotor resists corrosion across the full disc surface - including the internal ventilation chambers - maintaining both appearance and braking integrity over the long term. The internally vented design efficiently channels heat away from the braking surface, helping to prevent fade during regular and spirited driving.

Installation is straightforward with no modifications required - the rotor bolts directly onto the factory mounting points. Brembo recommends replacing both rear rotors as a pair and pairing them with Brembo NAO/Ceramic or Low Met brake pad formulations for optimal braking performance and wear life. For best results, replace rotors and pads together and perform a proper bedding procedure after installation.
