Brembo KT00981 Front Brake Kit for 2006-2014 VW Golf/GTI/CC/Passat/R32

Vehicle Fitment

• 2006-2007 Volkswagen Rabbit (2.5L I5, FWD, compatible 345 mm front brake configuration)
• 2008-2009 Volkswagen Rabbit S (2.5L I5, FWD, compatible 345 mm front brake configuration)
• 2010-2013 Volkswagen Golf (2.5L I5/2.0L I4 TDI, FWD, compatible 345 mm front brake configuration)
• 2012-2013 Volkswagen Golf R (2.0L I4 Turbo, AWD, compatible 345 mm front brake configuration)
• 2008 Volkswagen R32 (3.2L VR6, AWD, compatible 345 mm front brake configuration)
• 2008-2013 Volkswagen GTI (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2014 Volkswagen GTI Driver's Edition (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2014 Volkswagen GTI Wolfsburg Edition (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2006-2007 Volkswagen Passat (2.0L I4 Turbo/3.6L V6, FWD, compatible 345 mm front brake configuration)
• 2007 Volkswagen Passat Wolfsburg Edition (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2008-2010 Volkswagen Passat (2.0L I4 Turbo/3.6L V6, FWD, compatible 345 mm front brake configuration)
• 2008 Volkswagen Passat VR6 (3.2L VR6, FWD, compatible 345 mm front brake configuration)
• 2008 Volkswagen Passat Turbo (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2008 Volkswagen Passat Komfort (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2008 Volkswagen Passat Lux (2.0L I4 Turbo, FWD, compatible 345 mm front brake configuration)
• 2009-2012 Volkswagen CC (2.0L I4 Turbo/3.6L V6, FWD/4Motion AWD, compatible 345 mm front brake configuration)

Fitment Notes

• Front axle brake kit.
• Requires the compatible 345 mm x 30 mm front rotor configuration.
• Kit combines Brembo 09.C892.11 UV-coated front rotors with P85079N Prime Ceramic brake pads.
• Volkswagen CC 4Motion applications are included only where the factory front brake configuration matches.
• Volkswagen Golf R and R32 applications require their compatible 345 mm front brake configuration.
• GTI fitment includes the listed Base, Driver's Edition, and Wolfsburg Edition applications.
• No verified 2015-2026 vehicle applications are included for this kit.
• Verify the original front rotor diameter, thickness, and pad configuration before installation because multiple brake systems were offered across these vehicles.

Features

• Brembo OE-equivalent front brake pad and rotor kit.
• Includes Brembo Prime Ceramic brake pads designed for quiet braking performance.
• Includes Brembo UV-coated front rotors for corrosion protection.
• 345 mm rotor diameter provides the specified front braking surface.
• 30 mm nominal rotor thickness matches the compatible factory brake configuration.
• 27 mm minimum rotor thickness provides the specified service limit.
• Ventilated rotor construction supports heat dissipation during repeated braking.
• High-carbon cast-iron construction supports thermal stability and reduced vibration.
• PVT ventilation technology promotes effective rotor cooling.
• UV coating protects the rotor hub and outer edges against corrosion.
• Prime Ceramic friction material is engineered to reduce brake noise and vibration.
• Low-dust pad formulation helps reduce visible wheel contamination.
• OE-equivalent components are designed for direct replacement on compatible applications.

Specifications

• Brand: Brembo
• Part Number: KT00981
• Product Type: Front Brake Pad and Rotor Kit
• Position: Front
• Rotor Part Number: 09.C892.11
• Brake Pad Part Number: P85079N
• Rotor Outside Diameter: 345 mm
• Rotor Nominal Thickness: 30 mm
• Rotor Minimum Thickness: 27 mm
• Rotor Overall Height: 50 mm
• Rotor Centering Diameter: 65 mm
• Rotor Mounting Holes: 5
• Rotor Type: Ventilated
• Rotor Construction: High-Carbon Cast Iron
• Rotor Surface: UV Coated
• Ventilation Technology: PVT
• Brake Pad Material: Prime Ceramic
• Application: OE Replacement
• Rotor ECE-R90 Type Approved: Yes
• Rotor EAN: 8020584228968

Included Components

• 2x Brembo 09.C892.11 Front Brake Rotors
• 1x Brembo P85079N Front Brake Pad Set

Product Description

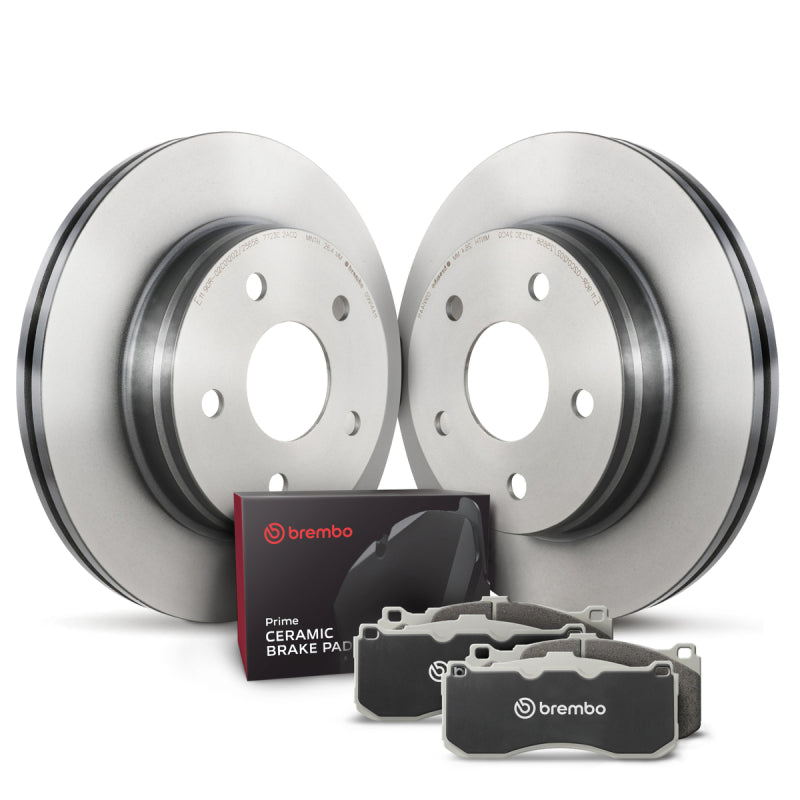

The Brembo KT00981 OE Front Brake Kit combines two 09.C892.11 UV-coated ventilated rotors with a P85079N Prime Ceramic brake pad set. Designed for compatible Volkswagen applications using the 345 mm front brake configuration, the kit provides a matched solution for replacing the front pads and rotors together.

The 09.C892.11 rotors measure 345 mm in diameter and 30 mm in nominal thickness and feature high-carbon cast-iron construction, PVT ventilation, and UV coating on the hub and outer edges. The Brembo Prime Ceramic pads are designed to minimize brake noise and vibration while producing reduced dust compared with conventional friction materials. The rotor is an OE-equivalent design and is ECE-R90 type approved.

KT00981 is cataloged for selected 2006-2014 Volkswagen Rabbit, Golf, Golf R, GTI, R32, Passat, and CC applications. It covers compatible FWD and 4Motion/AWD configurations where the specified 345 mm front brake system is installed. Because Volkswagen used multiple brake configurations across these platforms and engines, verify the original front rotor dimensions and pad configuration before installation.
